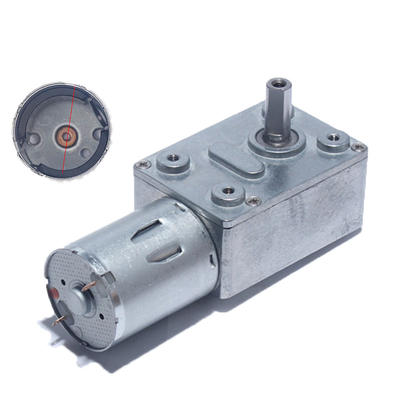

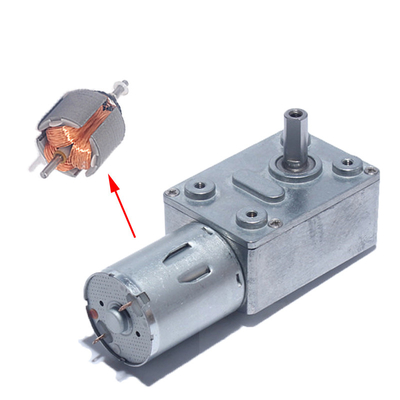

JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor

JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor
JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor
JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor

Large Image :  JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE.ROSH
Model Number: JGY-370K
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor

Description
Usage: Home Appliance Certification: CE
Protect Feature: Totally Enclosed Product Name: Dc Worm Geared Motors
Speed(rpm): 6-150rpm Rated Voltage: 6V/12V/24V
Size Of Gearbox: 46*32(mm) Torque: 0.2-26.5kg.cm
No Load Speed: 6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/90rpm/150rpm

JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor



Introduction of the motor
1. Name of the motor: JGY-370 DC Worm Gear Motor In DC Motor
2. Rated voltage have DC 6V, DC 12V and DC 24V
3. DC 6V ; You can choose the no load speed have :
6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/90rpm/150rpm
Rated torque between 1.2 To 25 KG.CM; stall torque: between 2.5-35KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 6V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
4. DC 12V ; You can choose the no load speed have : 3rpm/6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/90rpm/150rpm
Rated torque between 1.2 To 25 KG.CM; stall torque: between 2.5-35KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
5. DC 24V ; You can choose the no load speed have :
6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/90rpm/150rpm
Rated torque between 1.2 To 25 KG.CM; stall torque: between 2.5-35KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
6. Direction of rotation of the motor: CW Or CCW, Support Reversed;
Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected
7. The motor has a self-locking function ;
After disconnect the power supply, the shaft can be securely locked, can not easy to move by other force. When your project is not connected to the power, you can make your project safely stay somewhere. It can be used for some special purpose.Such as Anti-theft sliding doors.

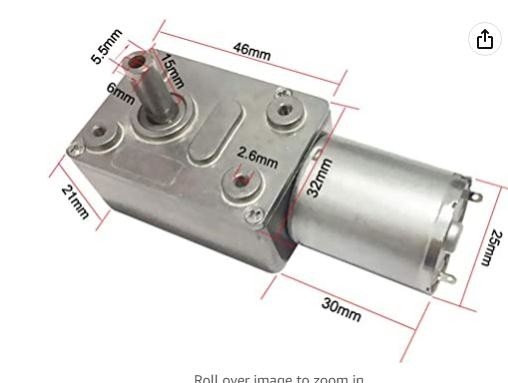

8. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.

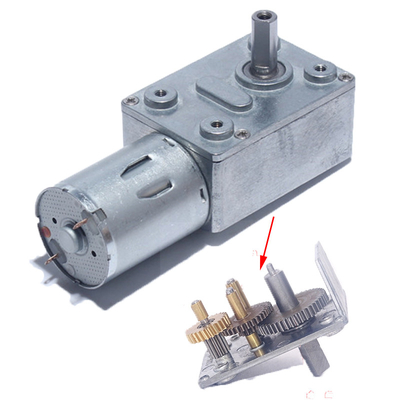

9. Gear material: Metal gears make the motor last longer
10. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination. You can refer to the combination sales introduction below.
11. The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.
When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.
12. Motor DC power connection is safe; the experiment proves that the motor voltage is lower than 36V without any danger.
13. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Electric curtains ; Billboard motors ; Household appliances etc.





Datasheet:



Rated DC 6V660 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3

Rated DC 12V1260 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7

Rated DC 24V2460 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85

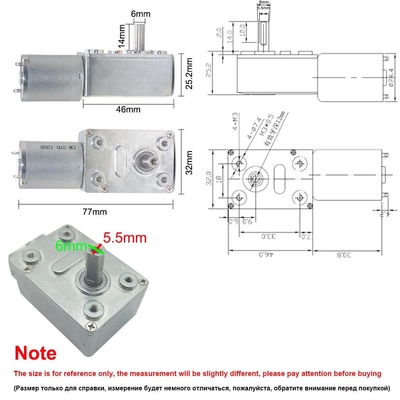

Drawing:





JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor 0JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor 1JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor 2



You can also have other JGY-370 dc motor with difference shaft as following:



Screw shape solid shaft JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor 3
Dual shaft  JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor 4
D shape solid shaft JGY370 DC Gear Motor 6V 12V 24V Speed Reduce 6/10/18/40/90/150/210rpm PWM Controller Reverse Metal Gearbox Motor 5
