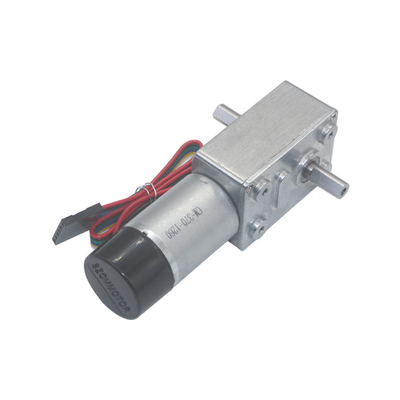

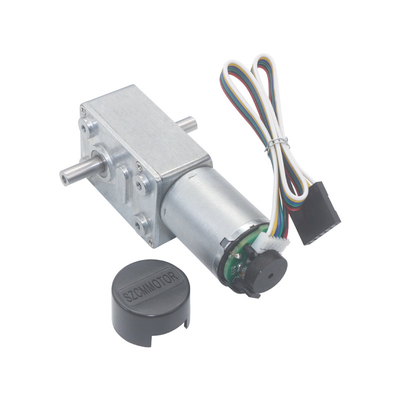

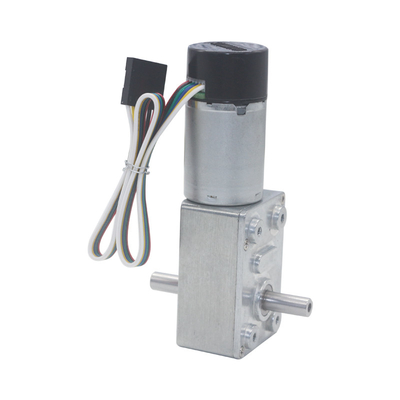

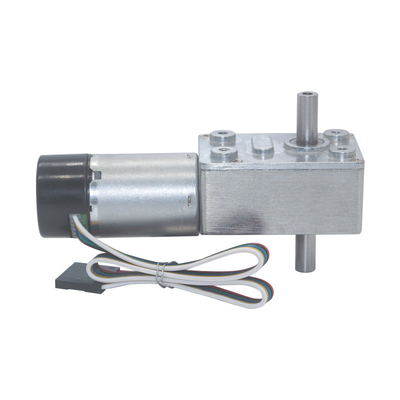

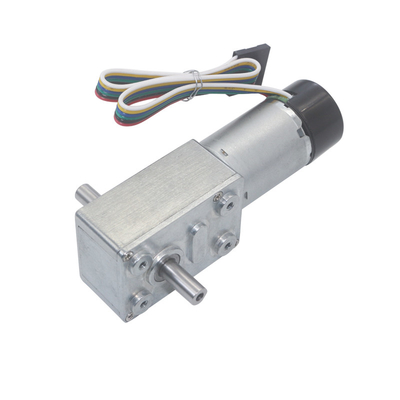

90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder

90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder
90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder
90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder 90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder 90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder 90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder 90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder 90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder

Large Image :  90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh,CE
Model Number: JGY370SGB
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder

Description
Usage: For Robot Smart Car Commutation: Brushed
Speed(rpm): 6-150rpm Type: Worm Gear Motor With Encoder
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 6V/12V/24V
High Light:

90rpm DC Worm Gear Motors

,

6V 12V DC Worm Gear Motors

,

90rpm dual shaft gear motor

90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder



Micro DC Electric Double Shaft Worm Geared Motor 6V 12V 24V With Dual Shaft Encoder Low Speed 6-150RPM In DC Motor Self Locking



Specification:

  • Voltage: DC6V, DC12V, DC24V
  • No-Load Speed: 6rpm, 10rpm, 18rpm, 23rpm, 30rpm, 40rpm, 90rpm, 150rpm
  • Error: ±10%
  • Output Shaft Diameter: 6mm D-type
  • Output Shaft Length: 14mm
  • Gearbox Size:46*32*25mm
  •
  •

Wirings:

Red Wire - positive power supply of motor(+)

Black Wire - negative power supply of motor(-)

Green Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;

Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong,(5-12v)

Yellow Wire - signal feedback (11 signals per motor turns a circle)

White Wire - signal feedback (11 signals per motor turns a circle)



Datasheet:



Rated DC 6V660 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3

Rated DC 12V1260 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7

Rated DC 24V2460 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85



Dimension:

90rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder 090rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder 190rpm High Torque DC Worm Gear Motors 6V 12V With Dual Shaft Encoder 2



FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
