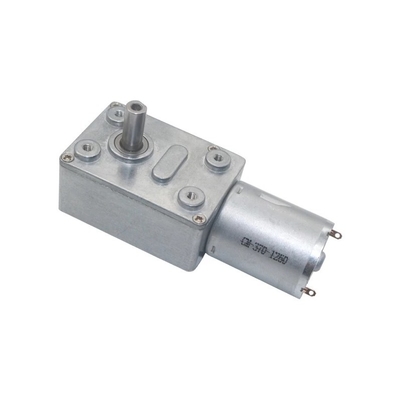

Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved

Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved
Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved
Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved

Large Image :  Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE.ROSH
Model Number: JGY-370
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved

Description
Usage: Home Appliance Certification: CE
Protect Feature: Totally Enclosed Product Name: Dc Worm Geared Motors
Speed(rpm): 6-150rpm Voltage(v): 6V/12V/24V
Size Of Gearbox: 46*32(mm) Torque: 0.2-26.5kg.cm
High Light:

ROSH DC Worm Gear Motors

,

150 RPM DC Worm Gear Motors

,

150 rpm 12v dc motor

Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved​



DC6V/12V24V Worm Gear Motor,2 to 150 RPM High Torque Electric Power Speed Reduce Turbine Worm Gear Box Motors





Specifications:

  • Rated Volt: DC 6v 12V 24V
  • Speed(No load): 2/6/10/18/23/30/40/90/150 RPM
  • Max torque:24kg.cm
  • Main Material:Metal
  • Weight:160g



Voltage/rpm/shaft can be customized , welcome to consult.



Datasheet:



Rated DC 6V660 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3

Rated DC 12V1260 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7

Rated DC 24V2460 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85





Dimension:





Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved 0Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved 1Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved 2
