Product Details:
|
| Usage: | Home Appliance | Axis Length: | 13.7mm D Length 11mm |
|---|---|---|---|
| Axle Diameter: | 6mmD Axis | Speed(rpm): | 6-150rpm |
| Voltage(v): | 6V/12V/24V | Size Of Gearbox: | 46*32(mm) |
| Torque: | 0.2-26.5kg.cm | Weight: | 180g(approximately) |
| High Light: | Right Angle Worm Gear DC Motor,High Torque Worm Gear DC Motor,150rpm DC Geared Motor |
||

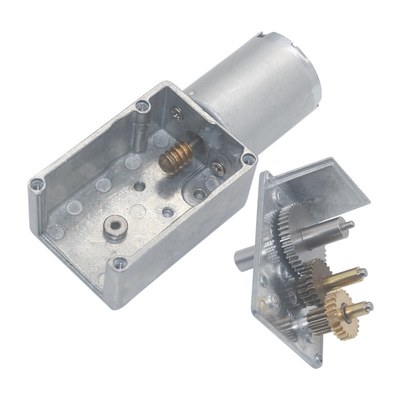

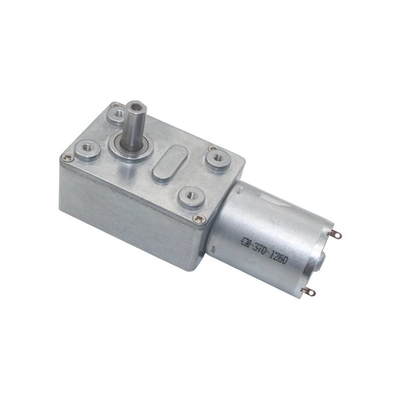

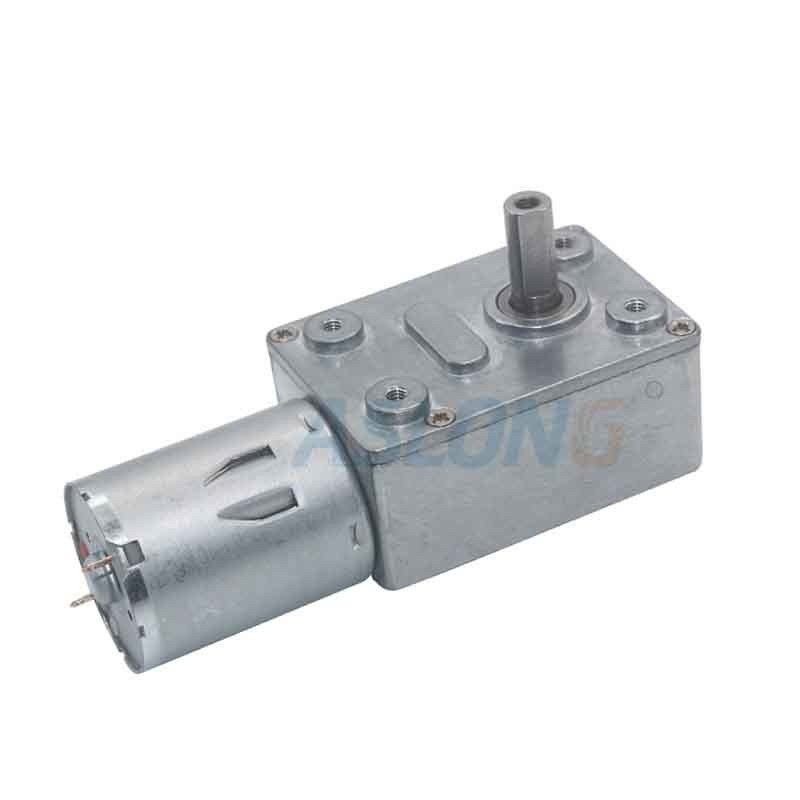

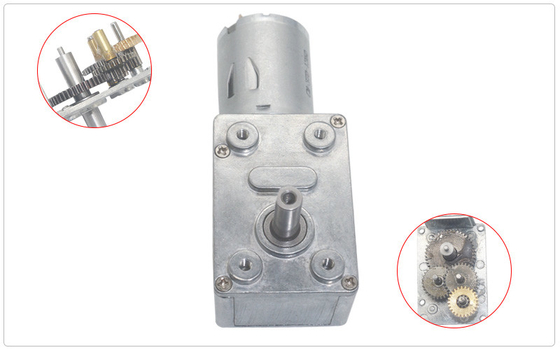

low speed high torque 90 degree right angle worm gear DC geared motor
Product Description
| Brand: | ASLONG Motor |
| Type: | JGY-370 90 degree right angle worm gear DC geared motor |
| axis length: | 13.7mm D length 11mm |
| axle diameter: | 6mmD axis |
| weight: | 180g(approximately) |
| Application case: | Intelligent machinery, intelligent appliances, small robot, dimple machine, intelligent lock, lampblack machine, display table, intelligent equipment and robot education, etc |
Voltage/rpm/shaft can be customized , welcome to consult.
Datasheet:
| Rated DC 6V660 testing parameter datasheet | |||||||||
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |
| Rated DC 12V1260 testing parameter datasheet | |||||||||
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| Rated DC 24V2460 testing parameter datasheet | |||||||||
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 |
Dimension:
