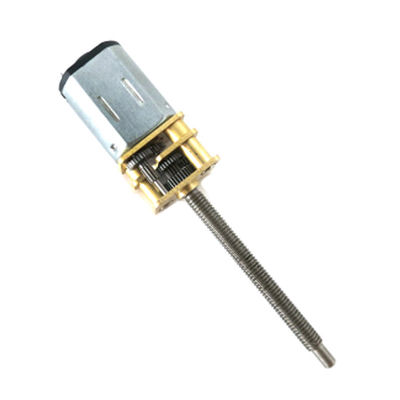

M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed

M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed
M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed
M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed

Large Image :  M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGA12-N20-M334
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 Pieces Per Day

M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed

Description
Type: Mini DC Gear Motor Usage: Home Appliance, Electric Bicycle,Car, Electric Bicycle, Fan, Boat
Speed(rpm): 20-1000rpm Torque: 0.3-3kg.cm
Voltage(v): 12v Weight: 19g
Construction: Permanent Magnet
High Light:

Ga12 N20 Mini DC Gear Motor

,

1000rpm N20 Mini DC Gear Motor

,

1000rpm N20 Dc Gear Motor

M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed​



Long Threaded Shaft M3*34 3V6V12V Mini DC Geared Motors Low RPM To HIgh Speed 15-1000RPM Adjustable Speed



General specifications:
* Voltage:12V
* No-load speed:16-381RPM
* No-load current:30mA
* Stall Torque:0.3g-3.3kg.cm
* Stall current:0.7A



The parameters of the motor

Rated voltage 3v ;
No load speed 15/30/50/60/100/200/500/1000rpm/min

Rated voltage 6v
No load speed 30/50/60/100/200/500/1000rpm/min

Rated voltage 12v ;
No load speed 60/100/200/500/1000rpm/min

If the motor is connected to a non-rated voltage input, all parameters of the motor will change.



Voltage/rpm/shaft can be customized , welcome to consult.



M3*34 Mini DC Gear Motor Low RPM 1000rpm Ga12 N20 Adjustable Speed 0

JGA12-N20M334
Voltaqe No load Load Speed Rated torque Rated current Stall torque Stall curert Reduction ratio
DC/V rpm/min rpm/min kg cm MA kg.cm MA 1:00
3 250 200 0.07 80 0.56 100 30
3 150 100 0.1 80 08 100 50
3 75 60 0.15 80 12 100 100
3 50 40 02 60 16 100 150
3 37 30 0.25 60 02 100 200
3 30 24 0.3 60 24 100 250
3 25 20 0.5 60 04 100 298
6 500 400 0.15 160 12 100 30
6 300 240 0.2 160 1.6 100 50
6 150 120 0.3 160 24 100 100
6 100 80 0.4 160 3.2 200 150
6 74 70 0.6 120 32 200 200
6 60 48 1 120 07 200 250
6 50 40 15 120 10 200 298
12 1000 800 0.3 300 24 300 30
12 600 480 04 300 32 300 50
12 300 240 0.5 300 04 300 100
12 200 160 01 300 07 300 150
12 148 118 12 300 09 300 200
12 120 96 02 300 16 300 250
12 100 80 02 300 16 300 298





FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
