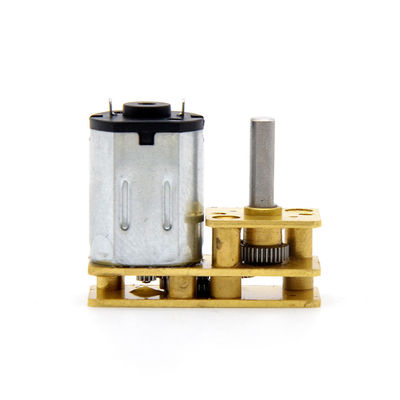

JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot

JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot
JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot

Large Image :  JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGA1024-N20
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 Pieces Per Day

JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot

Description
Type: Micro Motor,Gear Motor Usage: Home Appliance,Electric Bicycle
Commutation: Brush Speed(rpm): 15-300rpm
Efficiency: IE 1 Weight: 25g
High Light:

JGA1024-N20 Micro DC Gear Motors

,

300rpm 24mm Micro DC Gear Motors

,

300rpm 24mm Metal Gear Motor

JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot



Mirco Dc gear Motors JGA1024-N20 24mm high speed Mini dc gear metal gear motor for robot DIY





D-Type 3mm Output Shaft 6V Mini Gear Motor For Smart Toy Robotics

Specification:

Rated Voltage: DC6V

Speed:15rpm,30rpm,42rpm,60rpm,70rpm,90rpm,136rpm,300rpm

Output shaft: D-type 3mm







Drawing:

JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot 0

JGA1024-N20 Micro DC Gear Motors 24mm Metal Gear Motor For Robot 1

Datasheet:





Model No load On Load Stall Ratio
Workable Voltage Speed Current Speed Current Torque Torque Current
V rpm A rpm ma Kg.cm Kg.cm ma 1:00
JGA1024-N20 6 300 30 214 150 0.3 0.5 400 50
6 136 30 97 150 0.8 1.5 400 110
6 90 30 64 150 1.2 2.5 400 168
6 70 30 50 150 1.5 3 400 210
6 60 30 43 150 2 4 400 250
6 42 30 30 150 2 Forbidden 350
6 30 30 21 150 2 500
6 15 30 11 150 2 1000
