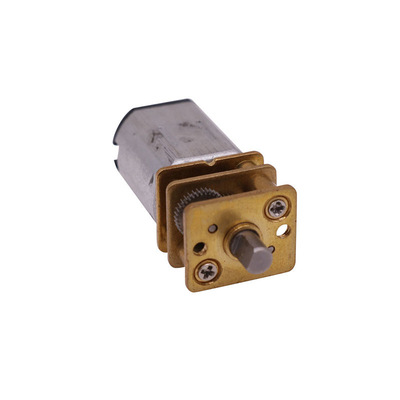

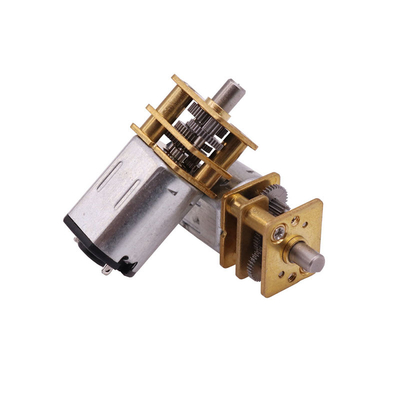

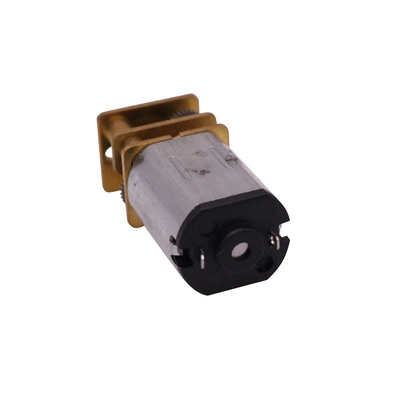

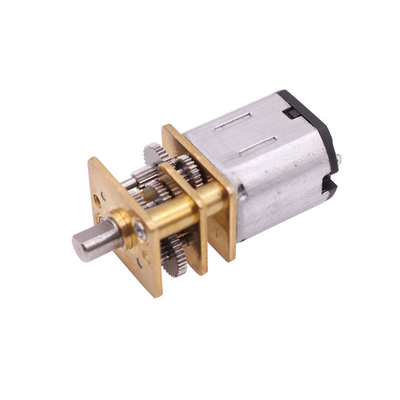

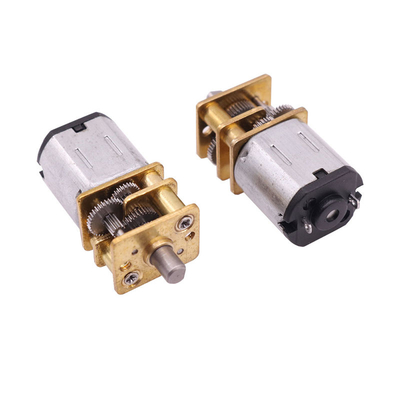

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft
N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft

Large Image :  N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGA12-N10
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 Pieces Per Day

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft

Description
Type: Micro Motor,Gear Motor Commutation: Brush
Speed(rpm): 55-2100rpm Weight: 12g
Product Name: N10 6v Micro Dc Gear Motor Size: 12mm
High Light:

6V 12mm High Rpm High Torque Dc Motor

,

N10 2000rpm High Torque Dc Motor

,

N10 6V 2000 rpm dc motor

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft



N10 High Rpm High Torque Dc Gear Motor 55 Rpm-2100 Rpm 3V 6V 12mm Diameter Mini Gearbox







High Torque Dc Motor Specification:

1. Rated voltage: DC 5V
2. No-load current: 60mA
3. No-load speed: 80RPM
4. Suitable voltage: DC 3V-5V
5. Speed: 90RPM-150RPM
6. Weight: 12g
7. Output shaft length: 8mm(D type shaft)

Voltage/rpm/shaft can be customized , welcome to consult.







Drawing:

N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft 0N10 2000rpm High Rpm High Torque Dc Motor 6V 12mm D Type Shaft 1



Datasheet:



Model No load On Load Stall Ratio
Workable Voltage Speed Current Speed Current Torque Torque Current
V rpm A rpm ma Kg.cm Kg.cm ma 1:00
  6 2100 40 1680 130 0.02 0.1 0.5 10
6 700 40 560 130 0.04 0.2 0.5 20
6 420 40 336 130 0.06 0.3 0.5 50
6 210 40 168 130 0.1 0.5 0.5 100
6 140 40 112 130 0.16 0.8 0.5 150
6 100 40 80 130 0.22 1.1 0.5 210
6 70 40 56 130 0.3 1.5 0.5 298
6 55 40 44 130 0.4 2 0.5 380
