GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

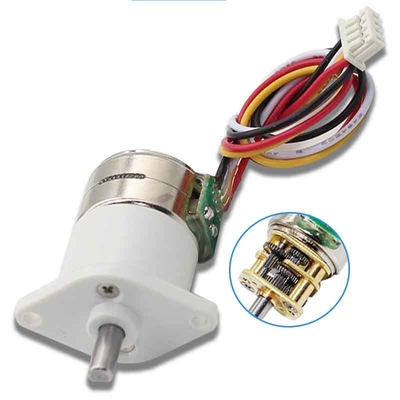

GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed

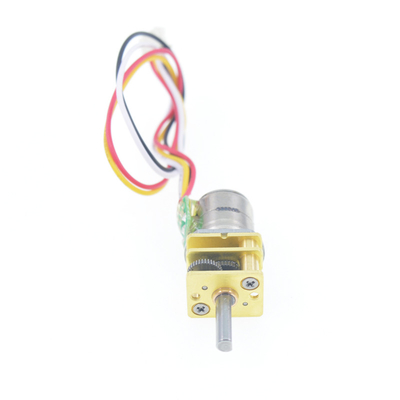

GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed

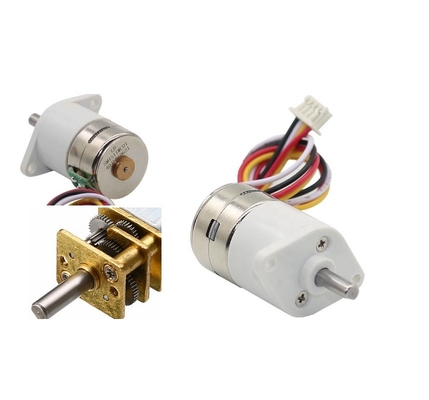

GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed
GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed

Large Image :  GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh ,CE
Model Number: GM12-15BY
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed

Description
Usage: Home Appliance, Car, Electric Bicycle, Boat, Fan Step Angle(degrees): 18°
Product Name: GM12-15BY Stepper Worm Gear Motor Reduction Stepper Dc Geared Motor 2 Phrase 4 Wires 18d Stepper Angle Speed Type: STEPPTER Motor
Voltage(v: 5V Speed(rpm): 2-181RPM
Size: 12MM
High Light:

GM12 15BY DC Stepper Motors

,

181RPM DC Stepper Motors

,

GM12 15BY DC Stepper Motor

GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed



GM12-15BY Stepper worm gear motor reduction stepper dc geared motor 2 Phrase 4 wires 18d stepper angle speed



GM12-15BY Micro stepper worm gear motor



1 Standard Operating Conditions:
1-1 Rated Voltage: 5v.
1-2 Direction of Rotation:CW when viewed from output shaft side
1-3 Operating Temperature and Humidity:Temperature range of -30C~+70C,Humidity range of 30%~80%.
1-4 Storage Temperature:Temperature range of -20C~+60C

2 Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
-- No load speed:114-3rpm.
-- Robotics, Small Appliance, Fanner, Electric Curtain;
-- Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
-- Electric motor,low noise,low current and no spark.
-- Ratio: 5:1/ 10:1 /20:1 / 30:1 / 50:1 / 100:1 / 150:1 / 210 :1/ 250:1 / 298:1 / 380:1/ 420:1 / 500:1 / 600:1 /1000:1
2-3 Micro motor : 15BY stepper gear motor
stepper angle : 18d max slewing frequency 800pps at 5 V,

GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed 0GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed 1

GM12-15BY Stepper Gear Motor
Volt DC5. OV Resistance 40Q ±7% stepper Angle 18° /STEP Motor speed 2400RPM
Phrase 2 Phrase 4 wires
MAX. Starting Frequency 600 PPS min (Al 5. 0V DC)
MAX.Slewing Frequency 800 PPS min (At 5. 0V DC)
Pul 1 in Torque 4gf. cm min (At 700PPS 5.0V DC )
Pull out Torque 5gf. cm min (At 700PPS 5. 0V DC )
Ratio 5: 1 10: 1 20: 1 30: I 50: 1 100: 1 150: 1 210: 1 250: 1 298: 1 380: I 120: 1 500: 1 600: 1 1000: 1
Precision ratio 4.995 9.677 20.501 29.120 51.103 99.002 150.948 210.591 250. Ill 297.924 387.689 421.296 506.1SS 599.394 998.990
output speed RPM 180.5 248.0 117.1 82.4 47.0 24.2 15.9 11.4 9.6 8.1 6.2 5.7 4.7 4.0 2.4
output steppe 3.6* 1.86* 0.88° 0.62・ 0. 35* 0. 18° 0. 12° 0.09° 0. 07° 0. 06€ 0.05. 0.04° o. or 0. 03° 0.02*
pull in torque after reductioi q cm 8.99 17.42 36.9 52.42 91.99 178.20 271.71 379.06 450.20 536.26 697.84 758.33 809.85 959 1598
Pull out torque after reductior q cm 11.239 21.773 46.127 65.52 114.98 222.75 339.63 473.8298 562.75 670.33 872.3 947.92 1138.8 1348.6 2247.7





GM12 15BY Worm DC Stepper Motors 2 Phase 4 Wires 18d Stepper Angle Speed 2
