4 Lead Nema 17 Stepper Motor torque DC 3.6 V 1.5A For CNC XYZ

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

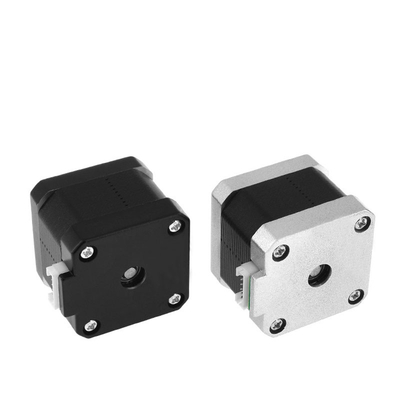

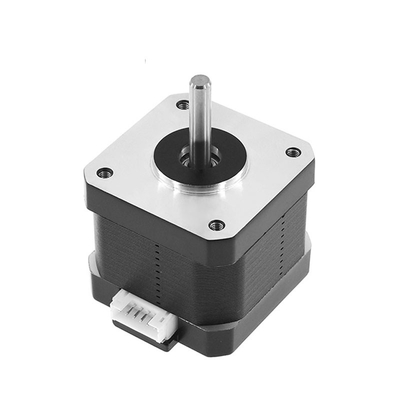

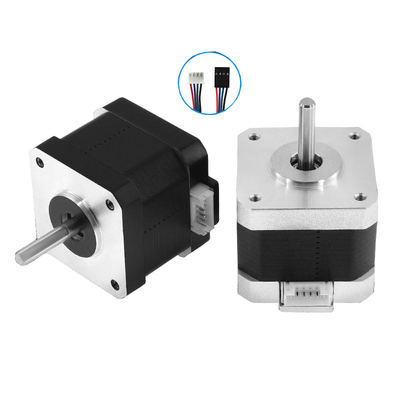

4 Lead Nema 17 Stepper Motor torque DC 3.6 V 1.5A For CNC XYZ

4 Lead Nema 17 Stepper Motor torque DC 3.6 V 1.5A For CNC XYZ
4 Lead Nema 17 Stepper Motor torque DC 3.6 V 1.5A For CNC XYZ 4 Lead Nema 17 Stepper Motor torque DC 3.6 V 1.5A For CNC XYZ 4 Lead Nema 17 Stepper Motor torque DC 3.6 V 1.5A For CNC XYZ 4 Lead Nema 17 Stepper Motor torque DC 3.6 V 1.5A For CNC XYZ

Large Image :  4 Lead Nema 17 Stepper Motor torque DC 3.6 V 1.5A For CNC XYZ

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh ,CE
Model Number: Nema17
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces Per day

4 Lead Nema 17 Stepper Motor torque DC 3.6 V 1.5A For CNC XYZ

Description
Type: Hybrid Voltage: 3.6V
Usage: 3D Printer Parts,CNC Shape: Square
High Light:

1.5A 17 stepper motor

,

3.6V Nema 17 Stepper Motor

,

1.5A Nema 17 Stepper Motor

4 Lead Nema 17 Stepper Motor DC 3.6 V 1.5A For CNC XYZ



4 lead Nema17 Stepper Motor 42 motor Nema 17 motor 42BYGH 1.5A (17HS4401) motor for CNC XYZ





Phase:2

Reted voltage:DC 3.6 V

Phase resistance (20 ° C):2.4×(1±15%)Ω/phase

Holding torque:≥420mN.m

Turn:A-AB-B-CW

Maximum no-load operating frequency:≥ 1900 PPS

Electrical strength:AC600V/1mA1/S

Moment of inertia:57.3 g.cm²

Step angle:1.8º ± 0.09º

Reted current:DC 1.5A /phase

Phase inductance(KHz):3.7×(1±20%) mH/phase

Positioning torque:15mN.m REF

Maximum no-load starting frequency:≥1500 PPS

Insulation resistance:≥100 MΩ(DC 500)

Insulation class:B level



Datasheet:



Product Name NEMA 17 Hybrid Stepper Motor
Size 42x42x34 mm
Shaft D Shaft
Brand ASLONG
Model 42SHD0046-24BH-2
17HS3401S



Drawing:

4 Lead Nema 17 Stepper Motor torque DC 3.6 V 1.5A For CNC XYZ 0
