Product Details:
|
| Phase: | 2 | Type: | Hybrid |
|---|---|---|---|
| Holding Torque: | 0.56N.M | Step Angle(degrees): | 18 Degree |
| Key Words: | Nema 17 Stepper Motor | Application: | Household Appliances,Automatic Product |
| Material: | Metal | ||
| High Light: | Nema 17 DC Stepper Motors,ODM DC Stepper Motors,5v nema 17 stepper motor |
||
Nema 17 5v DC Stepper Motors Hybrid 18 Degree 2 Phase Stepper Motor
Nema 17 Rtelligent Mini Micro Small Stepper Motor 18 degree 0.56 N.M Cnc 2 phase Stepper Motor
All-metal gear: high-quality metal material, impact resistance, durability, low noise, long service life

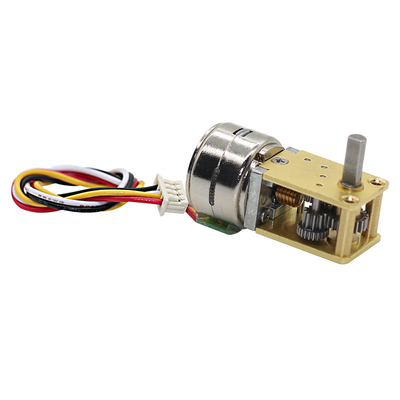

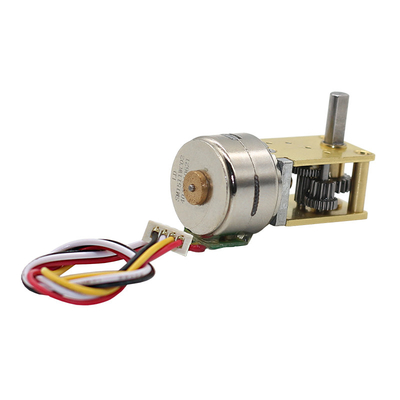

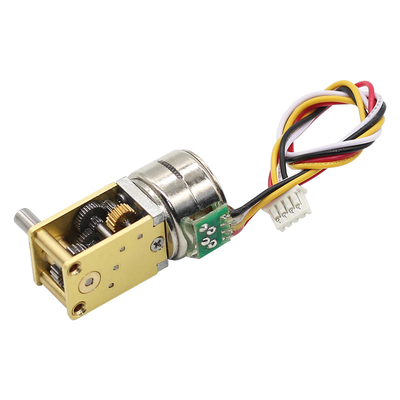

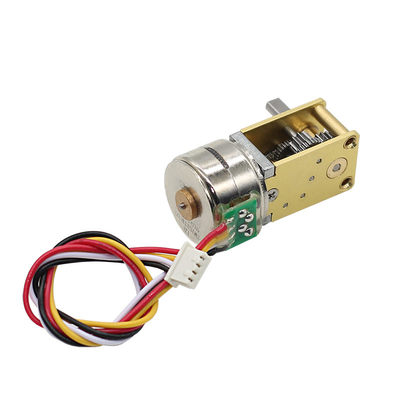

Model: GM1218-15BY permanent magnet micro stepper motor
Size: 30*12mm (Excluding the shaft length)
Shaft length: 8mm one-way shaft (customizable)
Voltage: DC5V
Weight: about 18g
Application: smart robot, smart manipulator, smart furniture, smart focusing system, smart PTZ
| Voltage | DC5. OV | Resistance | 40Q ±7% | stepper Angle | 18° /STEP | Motor speed | 2400RPM | ||||||||
| Phrase | 2 Phrase 4 wires | ||||||||||||||
| MAX. Starting Frequency | 600 PPS min (Al 5. 0V DC) | ||||||||||||||
| MAX.Slewing Frequency | 800 PPS min (At 5. 0V DC) | ||||||||||||||
| Pul 1 in Torque | 4gf. cm min (At 700PPS 5.0V DC ) | ||||||||||||||
| Pull out Torque | 5gf. cm min (At 700PPS 5. 0V DC ) | ||||||||||||||
| Ratio | 5: 1 | 10: 1 | 20: 1 | 30: I | 50: 1 | 100: 1 | 150: 1 | 210: 1 | 250: 1 | 298: 1 | 380: I | 120: 1 | 500: 1 | 600: 1 | 1000: 1 |
| Precision ratio | 4.995 | 9.677 | 20.501 | 29.120 | 51.103 | 99.002 | 150.948 | 210.591 | 250. Ill | 297.924 | 387.689 | 421.296 | 506.1SS | 599.394 | 998.990 |
| output speed RPM | 180.5 | 248.0 | 117.1 | 82.4 | 47.0 | 24.2 | 15.9 | 11.4 | 9.6 | 8.1 | 6.2 | 5.7 | 4.7 | 4.0 | 2.4 |
| output steppe | 3.6* | 1.86* | 0.88° | 0.62・ | 0. 35* | 0. 18° | 0. 12° | 0.09° | 0. 07° | 0. 06€ | 0.05. | 0.04° | o. or | 0. 03° | 0.02* |
| pull in torque after reductioi q cm | 8.99 | 17.42 | J6.90 | 52.42 | 91.99 | 178.20 | 271.71 | 379.06 | 450.20 | 536.26 | 697.84 | 758.33 | 809.85 | 959 | 1598 |
| )ull out torque after reductior q cm | 11.239 | 21.773 | 46.127 | 65.52 | 114.98 | 222.75 | 339.63 | 473.8298 | 562.75 | 670.33 | 872.3 | 947.92 | 1138.8 | 1348.6 | 2247.7 |
