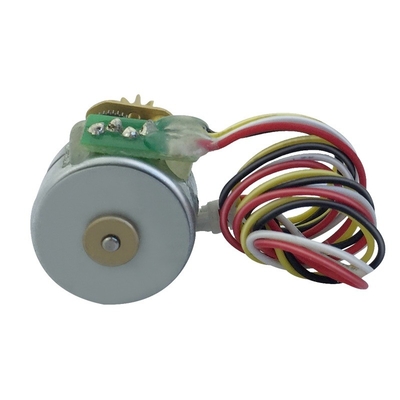

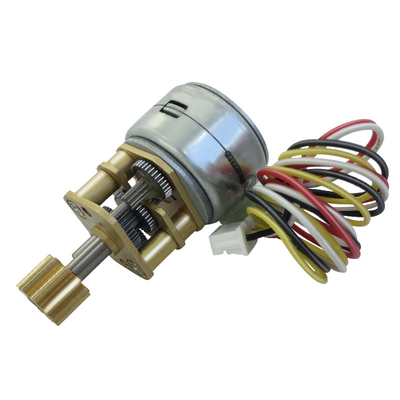

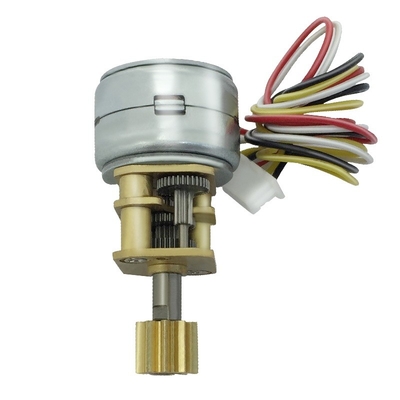

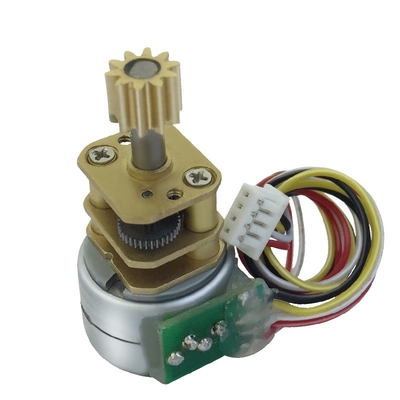

GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm

GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm
GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm

Large Image :  GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: Rosh ,CE
Model Number: GM15BYS
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiation
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm

Description
Phase: 2 Type: Hybrid
Step Angle(degrees): 18 Degree Product Name: NEMA17 1.8degree Hybrid Closed Loop Dc Stepper Motor
Voltage: 24VDC Name: 2 Phase 4 Wire Micro Stepper Motor
High Light:

300rpm 24V Micro Stepper Motor

,

GM15BYS Micro Stepper Motor

,

300rpm 24V micro stepping stepper motor

GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm



GM15BYS Stepper Motor Micro Stepper Motor 2 Phase 4 Wire Stepper Motor High Torque High Precision 1:100





Specifications

1. Standard Operating Conditions
1-1  Rated Voltage:5v.
1-2  Direction of Rotation:CW when viewed from output shaft side
1-3 Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-4 Storage Temperature:Temperature range of -20C~+60C
2. Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
--No load speed:8-300rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.

Specification

coil resistance 30Ω+-10%
No. of phases 2phases
step angle 18'/step
Max.slewing frenquency 1200pps min
Max.starting frenquency 900pps min
pull in torque 6gf-cm min
lead out torque 10gf-cm min




GM15BYS 2 Phase 4 Wire Micro Stepper Motor High Torque 5v 300rpm 0
