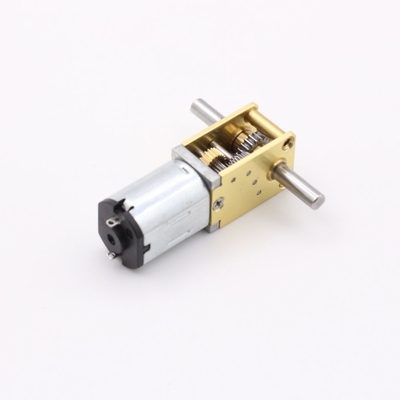

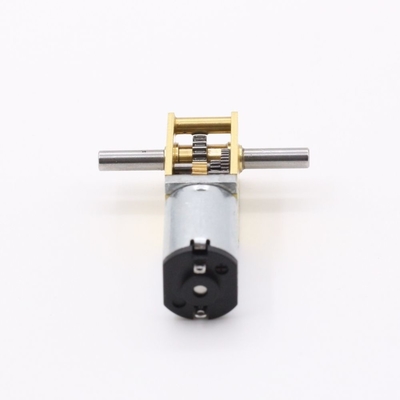

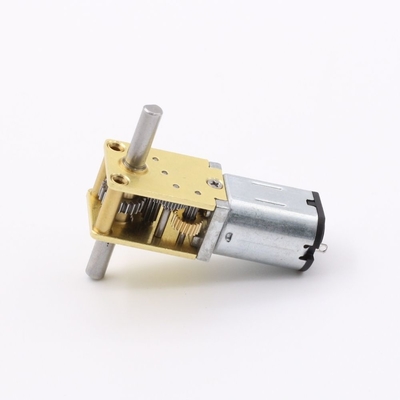

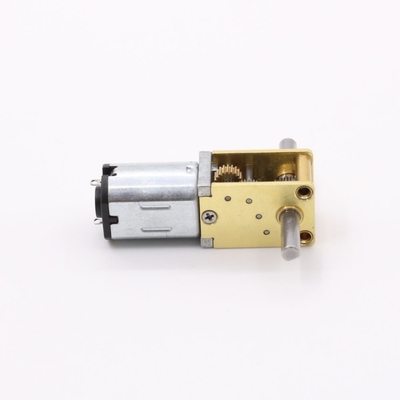

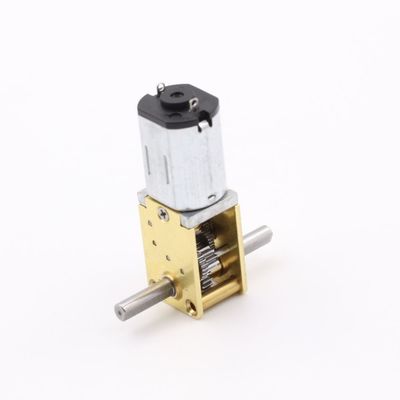

Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine

Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine
Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine

Large Image :  Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC,ROSH
Model Number: JGY-N20S
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 Pieces Per Day

Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine

Description
Type: N20 Worm Gear Motor Usage: Smart Lock
Commutation: Brush Speed(rpm): 16rpm-381rpm
Efficiency: IE 1 Weight: 25g
High Light:

0.7A N20 DC Gear Motor

,

381rpm N20 DC Gear Motor

,

381rpm n20 micro motor

Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine



N20 All Metal Gear Motor 12V 16rpm-381rpm Slow Speed High Torque Engine



Specification:

General specifications:
* Voltage:12V
* No-load speed:16-381RPM
* No-load current:30mA
* Stall Torque:0.3g-3.3kg.cm
* Stall current:0.7A





Shaft/Voltage/rpm/Torque can be provided also.



we do have other series such as 25D/37D/42D can meet your request, welcome to consult us .





Datasheet:



  JGY-N20s Parameter
Model Gear
Ratio
00:1
  No-loading Rated loading Stall
Rated
volt
Speed Current Speed Current torque Power
dc motor
Torque Current
v Rpm mA Rpm mA KG.CM w KG.CM mA
12160 42 12 381 30 333 85 0.071 1 0.235 700
118 12 136 30 119 85 0.142 1 0.472 700
236 12 68 30 59 85 0.283 1 0.9441 700
302 12 53 30 46 85 0.362 1 1.208 700
603 12 27 30 23 85 0.579 1 1.9296 700
680 42 6 190 20 143 60 0.022 1 0.0735 350
118 6 68 20 51 60 0.062 1 0.206 350
236 6 34 20 25 60 0.124 1 0.413 350
302 6 26 20 20 60 0.159 1 0.528 350
603 6 13 20 10 60 0.317 1 1.055 350

Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine 0Metal N20 DC Gear Motor 12V 381rpm Slow Speed High Torque Engine 1




FAQ:


1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
