DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM

DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM
DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM

Large Image :  DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh,CE
Model Number: 5840-555
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM

Description
Usage: For Robot Smart Car Commutation: Brushed
Speed(rpm): 12-470rpm Type: Worm Gear Motor Low Speed
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 12V/24V
High Light:

DC 12V Worm Geared Motor

,

Reversible Adjustable Speed Worm Geared Motor

,

12RPM DC Worm Gear Motors

Worm Geared Motor DC 12V 24V High Torque Low Speed 12-470RPM Reversible Adjustable Speed Metal Gear



Specification:



1. Name of the motor: Worm Gear Motor DC 12 Volt And 24 Volt

2. Rated voltage have DC 12V and DC 24V

3. DC 12V ; You can choose the no load speed have : 12rpm/27rpm/40rpm/80rpm/160rpm/260rpm/470rpm

Rated torque between 2.5 To 60 KG.CM; stall torque: between 4.3 To 70KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

4. DC 24V ; You can choose the no load speed have :
16rpm/27rpm/40rpm/80rpm/160rpm/260rpm/470rpm

Rated torque between 8 To 60 KG.CM; stall torque: between 17 To 70KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

5. Direction of rotation of the motor: CW Or CCW, Support Reversed;
Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected

6. The motor has a self-locking function ;
After disconnect the power supply, the shaft can be securely locked, can not easy to move by other force. When your project is not connected to the power, you can make your project safely stay somewhere. It can be used for some special purpose.Such as Anti-theft sliding doors.

7. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.

8. Gear material: Metal gears make the motor last longer

9. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination. You can refer to the combination sales introduction below.

10. The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.

When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.

11. Motor DC power connection is safe; the experiment proves that the motor voltage is lower than 36V without any danger.

12. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Electric curtains ; Billboard motors ; Household appliances etc.

  •





DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM 0









Rated DC12V testing parameter table

Reduction ratio 17 31 50 100 200 290 500
No load speed rpm 470 260 160 80 40 27 12
Rated torque kg.cm 2.5 4.5 7.3 14.5 29.0 42 60.0
Rated speed rpm 380 200 130 60 30 20 12
Rated current A 1.2 1.2 1.2 1.2 1.2 1.2 1.2
Max torque ka .cm 4.3 8 12.5 25.0 51.0 70 70.0
Rated DC24V testing parameter table
Reduction ratio 17 31 50 100 200 290 500
No load speed rpm 470 260 160 80 40 27 12
Rated torque kg.cm 8.0 9.5 15.0 30.0 40.0 50.0 60.0
Rated speed rpm 380 200 130 60 30 20 12
Rated current A 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Max torque kg.cm 17.0 31 50.0 50.0 70.0 70.0 70.0

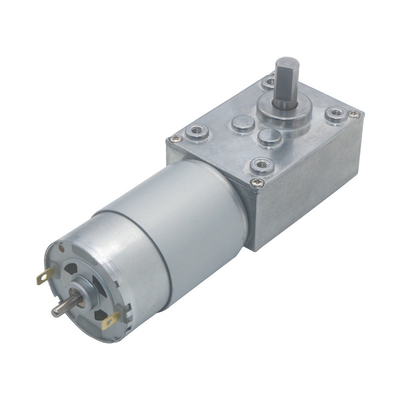

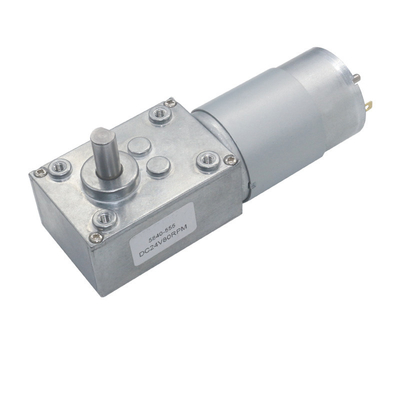

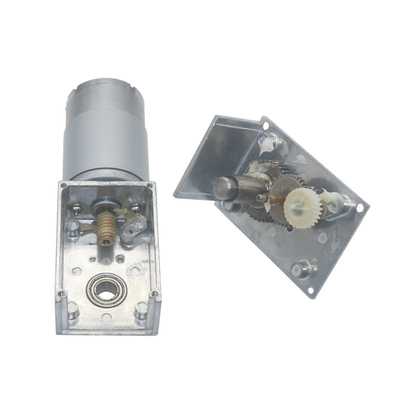

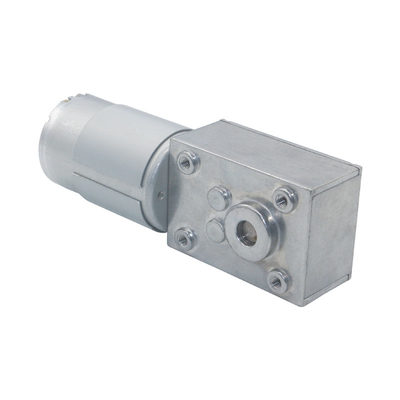

Real photos of the motor



DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM 1 DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM 2 DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM 3
DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM 4 DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM 5 DC 12V 24V High Torque Worm Geared Motor Low Speed 12-470RPM 6
