24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

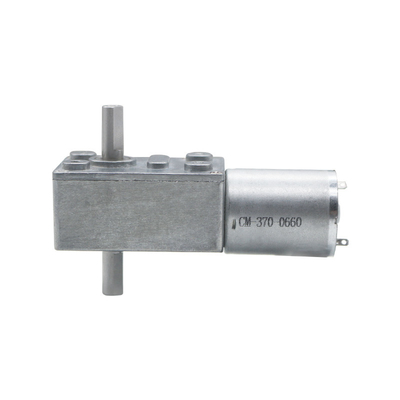

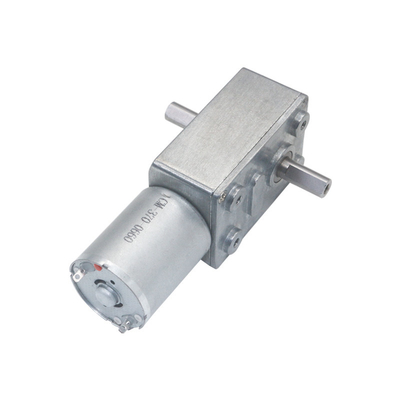

24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis

24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis
24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis
24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis 24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis 24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis 24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis 24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis

Large Image :  24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh,CE
Model Number: JGY370S
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis

Description
Usage: For Robot Smart Car Commutation: Brushed
Speed(rpm): 12-470rpm Type: Worm Gear Motor With Encoder
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 12V/24V
High Light:

JGY370 Dual Shaft Gear Motor

,

6rpm Dual Shaft Gear Motor

,

JGY370 double shaft gear motor

24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis



12-24V 6mm Dual Output Shafts low speed 6rpm Self-lock Large Torque DC Worm Gear Motor JGY370-D Double Axis​



Specifications:

  • Rated Volt: DC 6v 12V 24V
  • Speed(No load): 2/6/10/18/23/30/40/90/150 RPM
  • Max torque:24kg.cm
  • Main Material:Metal
  • 8mm Diameter screw shaft
  • Weight:160g



Voltage/rpm/shaft can be customized , welcome to consult.

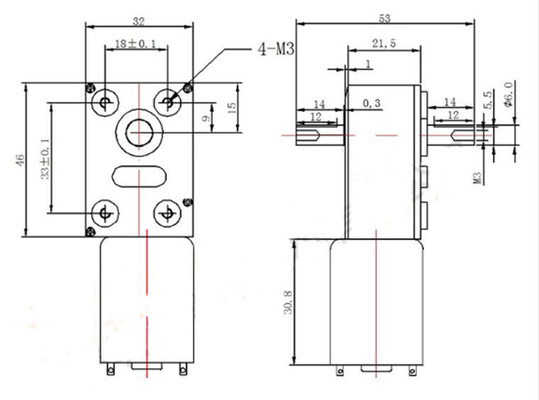

24V 6mm Dual Shaft Gear Motor Low Speed 6rpm Self Lock JGY370-D Double Axis 0



Datasheet:



Rated DC 6V660 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100 ≤100
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3

Rated DC 12V1260 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60 ≤60
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7

Rated DC 24V2460 testing parameter datasheet
Reduction ratio 40 65 90 150 200 260 340 600 1000
No Load Current(ma) ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40
No Load speed (rpm) 150 90 66 40 30 23 18 10 6
Rated torque(kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current(A) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Stall Torque (kg.cm) 0.9 1.6 2 7.5 10 13 18 30 45
Stall Current(A) 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85





FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
