Product Details:
|
| Home Improvement: | Dc Gear Motor | Usage: | Home Appliance |
|---|---|---|---|
| Electrical Equipment: | Mini Dc Gear Motor | Protect Feature: | Totally Enclosed |
| Speed Reducer: | 90D Right Angle Gearbox Reducer | Construction: | Brushless |
| High Light: | 12V Brushless DC Worm Gear Motors,90D DC Worm Gear Motors,90D Worm Gearbox Reducer |
||

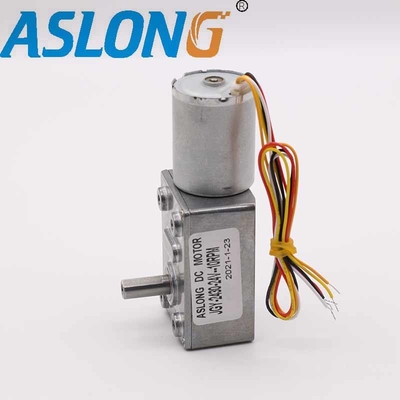

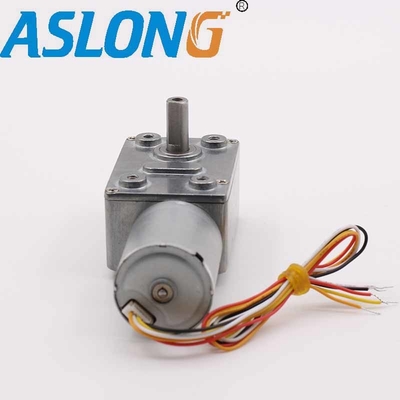

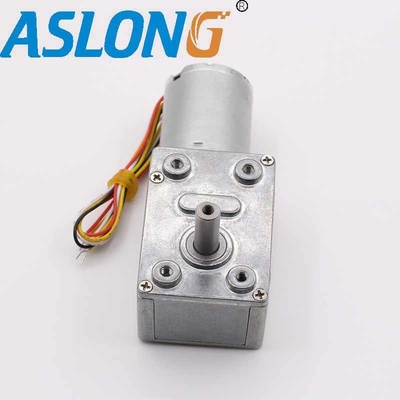

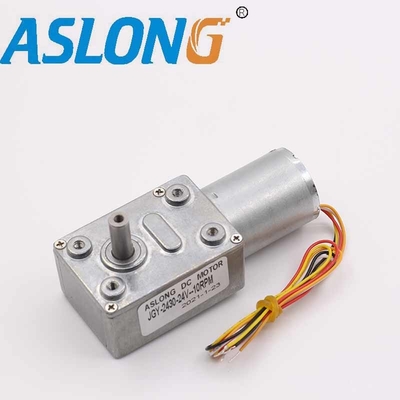

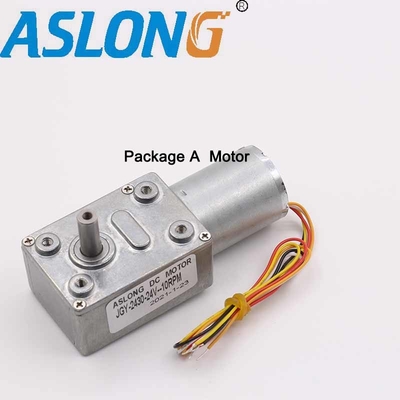

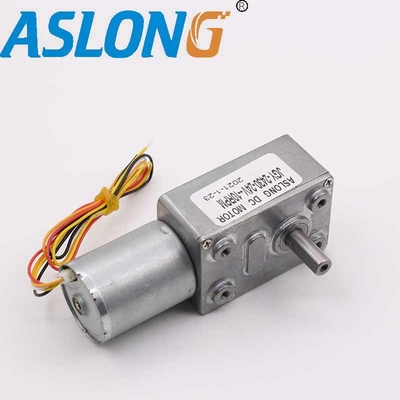

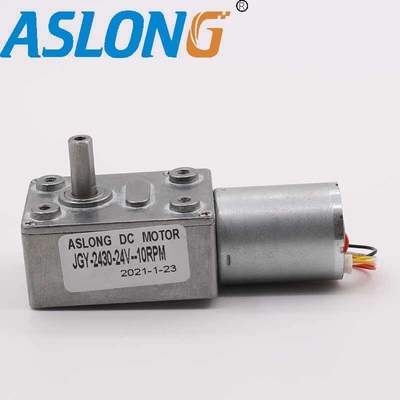

12V Brushless DC Worm Gear Motors 90D Worm Gearbox Reducer ODM OEM
Mini 12V brushless DC worm gear motor 90D worm gearbox reducer with 2430 dc motor 24V Geared dc motor
1.Standard Operating Conditions
1-1 Rated Voltage: 12v 24v.
1-2 Direction of Rotation:CW when viewed from output shaft side
1-3Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-4Storage Temperature:Temperature range of -20C~+60C
2.Measuring Conditions:
2-1Motor Position:To be place t horizontally when measuring
2-2Power Supply: Regulated DC power supply
--No load speed:2-160rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
Ratio: 1:37.3 1:65 1:150 1:192 1:262 1:340 1:600 1:972 1:1800 1:2900
- brushless dc motor 6000rpm
Remark:Pls confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering,we will random send one for this type,hope your kindly understanding.
Brushless motor data sheet
| Type | Model number:JGY-2430 | ||||||||||||
Voltage |
No Load | Load Torque |
Stall |
Reducer |
weight |
||||||||
| Workable | Rated | Speed | Current | Speed | Current | Torque | Output | Torque | Current | Ratio | size | unit | |
| Range | Volt.V | rpm | mA | rpm | mA | kg.cm | W | kg.cm | A | 1:00 | mm | 约g | |
| 1260 | 6-12V | 12V | 160 | 100 | 128 | 270 | 1 | 1.7 | 4 | 1.7 | 37.3 | 46 | 162 |
| 6-12V | 12V | 92 | 100 | 74 | 270 | 2.5 | 1.7 | 9 | 1.7 | 65 | 46 | 162 | |
| 6-12V | 12V | 40 | 100 | 32 | 230 | 3.5 | 1.7 | 12 | 1.7 | 150 | 46 | 162 | |
| 6-12V | 12V | 31 | 100 | 25 | 230 | 4.5 | 1.7 | 16 | 1.7 | 192 | 46 | 162 | |
| 6-12V | 12V | 23 | 100 | 18 | 230 | 5.3 | 1.7 | 19 | 1.7 | 262 | 46 | 162 | |
| 6-12V | 12V | 18 | 100 | 14 | 230 | 6.5 | 1.7 | 23 | 1.7 | 340 | 46 | 162 | |
| 6-12V | 12V | 10 | 100 | 8 | 230 | 8.5 | 1.7 | ban |
1.7 | 600 | 46 | 162 | |
| 6-12V | 12V | 6 | 100 | 5 | 220 | 14 | 1.7 | 1.7 | 972 | 46 | 162 | ||
| 6-12V | 12V | 3 | 100 | 3 | 200 | 25 | 1.7 | 1.7 | 1800 | 46 | 162 | ||
| 6-12V | 12V | 2 | 100 | 2 | 200 | 43 | 1.7 | 1.7 | 2900 | 46 | 162 | ||
| 2460 | 12-24v | 24v | 160 | 80 | 128 | 180 | 0.89 | 1.5 | 3 | 1.2 | 37.3 | 46 | 162 |
| 12-24v | 24v | 92 | 80 | 74 | 180 | 2.35 | 1.5 | 8 | 1.2 | 65 | 46 | 162 | |
| 12-24v | 24v | 40 | 80 | 32 | 180 | 3.25 | 1.5 | 11 | 1.2 | 150 | 46 | 162 | |
| 12-24v | 24v | 31 | 80 | 25 | 180 | 4.3 | 1.5 | 15 | 1.2 | 192 | 46 | 162 | |
| 12-24v | 24v | 23 | 80 | 18 | 180 | 5 | 1.5 | 18 | 1.2 | 262 | 46 | 162 | |
| 12-24v | 24v | 18 | 80 | 14 | 180 | 6.23 | 1.5 | 22 | 1.2 | 340 | 46 | 162 | |
| 12-24v | 24v | 10 | 80 | 8 | 180 | 7.98 | 1.5 | ban |
1.2 | 600 | 46 | 162 | |
| 12-24v | 24v | 6 | 80 | 5 | 180 | 11 | 1.5 | 1.2 | 972 | 46 | 162 | ||
| 12-24v | 24v | 3 | 80 | 3 | 180 | 20 | 1.5 | 1.2 | 1800 | 46 | 162 | ||
| 12-24v | 24v | 2 | 80 | 2 | 180 | 40 | 1.5 | 1.2 | 2900 | 46 | 162 | ||
Conection information
