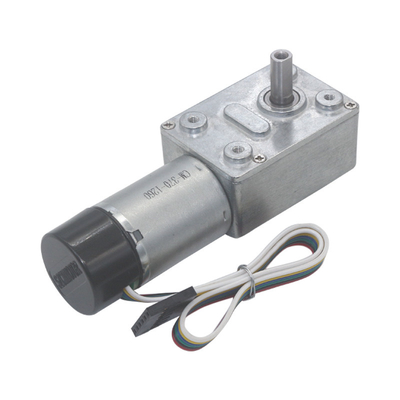

High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370

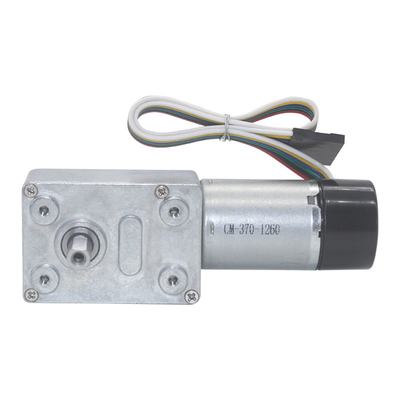

High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370

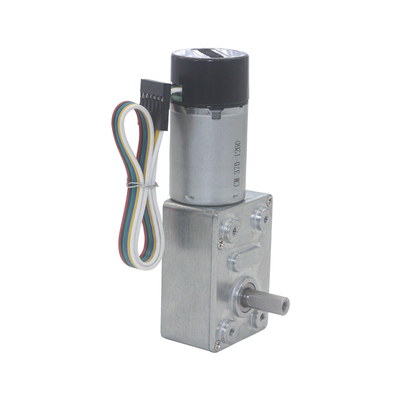

High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370

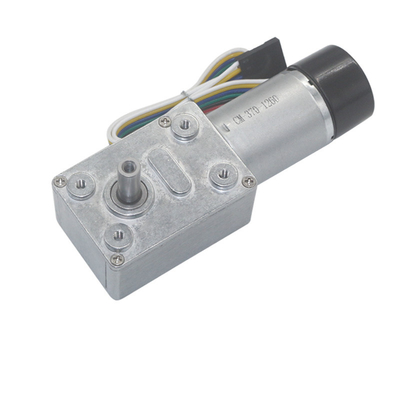

High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370 High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370 High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370 High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370 High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370 High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370

Large Image :  High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh,CE
Model Number: JGY-370GB
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370

Description
Commutation: Brushed DC Worm Gear Motor Speed(rpm): 6-150rpm
Type: Worm Gear Motor With Encoder Efficiency: IE 1
Construction: Permanent Magnet Material: Stainless Steel
Voltage: 6V/12V/24V No Load Speed: 6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/66rpm/90rpm/150rpm
Direction Of Rotation Of The Motor: CW Or CCW, Support Reversed
High Light:

CCW Worm Gear Motor

,

Rosh Certified DC Worm Gear Motors

,

10rpm DC Worm Gear Motors



Micro DC Worm Gear Motor With Encoder 6V 12V 24V Reversible Adjustable Speed Power-Off Self-Locking Dustproof With Back Cover



Specification:

  • Voltage: DC6V, DC12V, DC24V

  • No-Load Speed: 6rpm, 10rpm, 18rpm, 23rpm, 30rpm, 40rpm, 90rpm, 150rpm

  • Error: ±10%

  • Output Shaft Diameter: 6mm D-type

  • Output Shaft Length: 14mm

  • Gearbox Size:46*32*25mm

  •

Wirings:

Red Wire - positive power supply of motor(+)

Black Wire - negative power supply of motor(-)

Green Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;

Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong,(5-12v)

Yellow Wire - signal feedback (11 signals per motor turns a circle)

White Wire - signal feedback (11 signals per motor turns a circle)



The following is the connection introduction of the encoder

① Red line: the positive pole of the motor is connected to the positive pole of the power supply +

② Black wire: the negative pole of the motor is connected to the negative pole of the power supply -

③ Green line: Connect sensor ground wire - (5-12V)

④ Blue line: connect sensor power + (5-12V)

⑤Yellow line: signal A output point (11 pulses)

⑥ White line: signal B output point (11 pulses)

High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370 0High Torque Motor DC Worm Gear Motors With NEW Hall Encoder Cover JGY370 1

Datasheet :



Type Model:JGY-370S Parameter
Voltage No Load Load Torque Stall Reducer
Rated Speed Current Speed Current Torque Output Torque Current Ratio size
Volt.V rpm mA rpm mA kg.cm W kg.cm A 1:00 mm
660 6V 160 60 128 300 0.2 2 3 2 37.3 46
6V 100 60 80 300 0.5 2 6 2 60 46
6V 40 60 32 270 0.8 2 15 2 150 46
6V 24 60 19 270 2 2 20 2 250 46
6V 19 60 15 270 4.5 2 30 2 324 46
6V 10 60 8 260 6.7 2 60 2 600 46
6V 6 60 5 260 9 2 ban 2 972 46
6V 4 60 3 260 15.9 2 ban 2 1700 46
6V 2 60 2 260 30 2 ban 2 2900 46
1260 12V 160 45 128 270 0.74 1.7 4 1.7 37.3 46
12V 100 45 80 270 1 1.7 7 1.7 60 46
12V 40 45 32 230 2.2 1.7 11 1.7 150 46
12V 24 45 19 230 3.7 1.7 18 1.7 250 46
12V 19 45 15 230 4.8 1.7 24 1.7 324 46
12V 10 45 8 230 9 1.7 ban 1.7 600 46
12V 6 45 5 220 14 1.7 ban 1.7 972 46
12V 4 45 3 200 25 1.7 ban 1.7 1700 46
12V 2 45 2 200 43 1.7 ban 1.7 2900 46
2460 24v 160 26 128 180 0.4 1.5 2 1 37.3 46
24v 100 26 80 180 0.8 1.5 4 1 60 46
24v 40 26 32 180 1.8 1.5 9 1 150 46
24v 24 26 19 180 3 1.5 15 1 250 46
24v 19 26 15 180 3.8 1.5 19 1 324 46
24v 10 26 8 180 7 1.5 35 1 600 46
24v 6 26 5 180 11 1.5 ban 1 972 46
24v 4 26 3 180 20 1.5 ban 1 1700 46
24v 2 26 2 180 40 1.5 ban 1 2900 46



① Name of the motor: Encoder DC Worm Geared Motor

② Rated voltage have DC 6V ; DC 12V and DC 24V

③ After you select the voltage of the motor, you can choose one of the following speeds to purchase. The following speeds refer to the no-load speed of the motor, not the load speed;

For example, 6RPM means that the motor rotates 6 times per minute without load.

You can choose the no load speed have :
6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/66rpm/90rpm/150rpm

Choose one of the speeds, there will be a corresponding load rated torque, so when you choose the no-load speed of the motor, we recommend that you refer to the load rated torque of the motor according to the load of the project instead of the stall torque of the motor.

The speed of the motor is different, and the torque of the motor is also different. For example, the motor parameter you choose is 6v 6rpm, the torque of the motor is 25KG.CM, If the motor parameter you choose is 6v 150rpm, and the torque of the motor is 0.2KG.CM. So the lower the motor speed you choose, the greater the torque of the motor. Conversely, the higher the speed you choose, the smaller the torque of the motor.

Some people will have a doubt. If the maximum speed of this motor is purchased, such as 150rpm, if we reduce the speed of the motor from 150rpm to 6rpm, when the motor is running at 6rpm, can the torque of the motor reach 25KG?

This is impossible. When the speed of the motor is adjusted, the torque of the motor will also decrease as the speed decreases. For example, the speed of the motor you bought is 150rpm, and the torque of the motor is 0.2KG.CM. When you reduce the speed of the motor, the torque of the motor will be lower than 0.2KG. If the speed of the motor is greatly reduced, the torque of the motor will also be greatly reduced.

If you buy the lowest speed of this motor, such as 6rpm, the torque of the motor is 25KG, if you reduce the speed of the motor from 6rpm to 1rpm, the torque of the motor will also be lower than 25KG.

So you need to consider whether the final torque of the motor can reach the load of your project after the motor is decelerated. If not, you need to consider choosing other lower speeds or other motors.

You can contact us about the principle of torque change with speed, we can help you avoid buying mistakes, thanks!

④ Direction of rotation of the motor: CW Or CCW, Support Reversed;
Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected

⑤ The motor has a self-locking function ;
After disconnect the power supply, the shaft can be securely locked, can not easy to move by other force. When your project is not connected to the power, you can make your project safely stay somewhere. It can be used for some special purpose.Such as Anti-theft sliding doors.

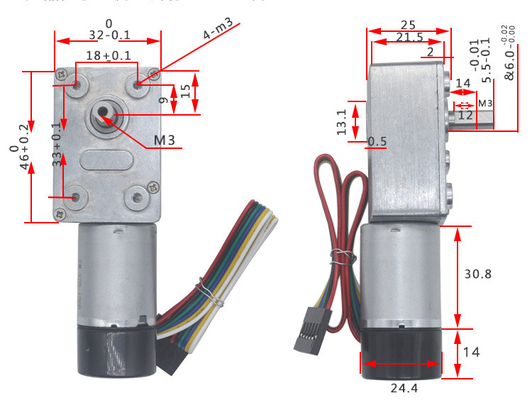

⑥ The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.

⑦ Gear material: Metal gears make the motor last longer

⑧ A dust cover is installed at the end of the motor to protect the encoder.

⑨ The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.

When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.

⑩ This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Electric curtains ; Billboard motors ; Household appliances etc
