470 RPM Self Locking DC Worm Gear Motors

Description
Usage: For Robot Smart Car Commutation: Brushed
Speed(rpm): 12-470rpm Type: Worm Gear Motor With Encoder
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 12V/24V
High Light:

470 RPM DC Worm Gear Motors

,

12V DC Worm Gear Motors

,

470 RPM worm gear motor 24v

470 RPM Self Locking DC Worm Gear Motors

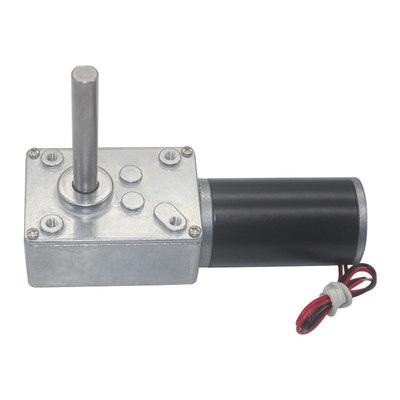

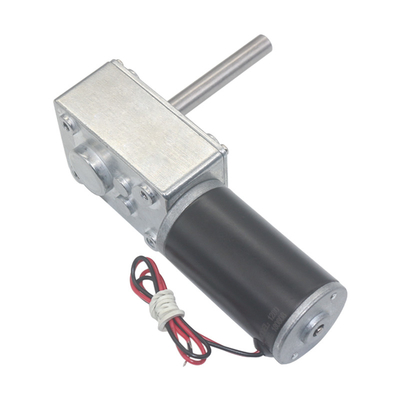

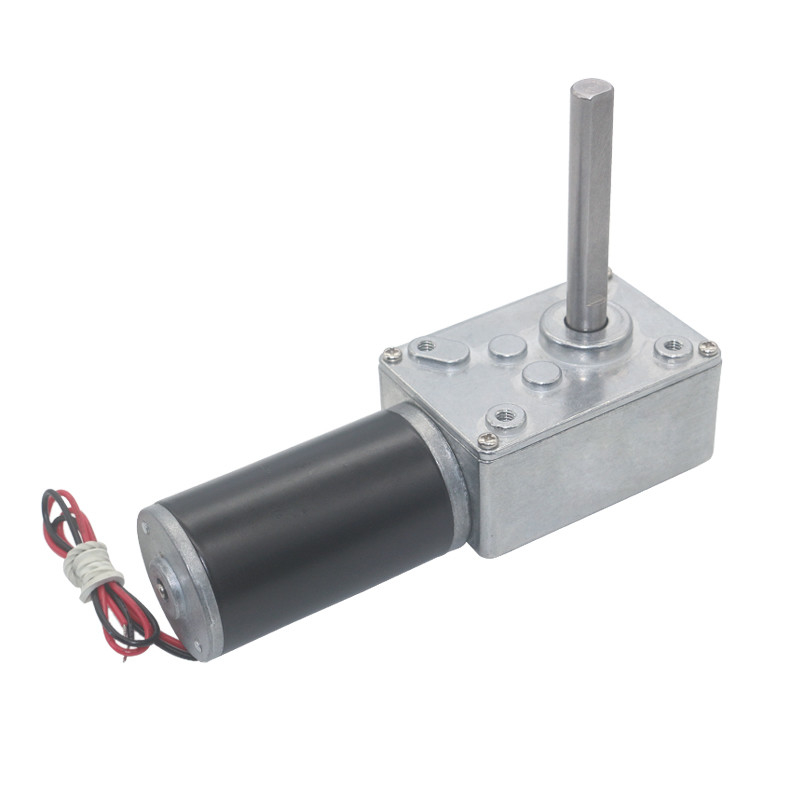

High Torque Worm Geared Motor 12V 24V In DC Motor Shaft Length 51MM Speed 5 To 470RPM Self Locking Adjustable Speed Reversed



Specification:
  • Voltage: DC12V

No-load Speed: 470rpm,260rpm,160rpm,80rpm,40rpm,27rpm,16rpm,12rpm

  • Voltage: DC24V

No-load Speed: 470rpm,260rpm,160rpm,80rpm,40rpm,27rpm,16rpm,12rpm,10rpm,7rpm

  • Error: ±5%



470 RPM Self Locking DC Worm Gear Motors 0



  A58SW31ZY  Parameter

Voltage

No Load

Load Torque

Atall

Reducer

Model Workable Rated Speed Current Speed Current Torque Output Torque Current Ratio (L)S
Eange Volt.V rpm MA rpm A kg.cm W kg.cm A 1:00 mm
1280 6V-12V 12V 471 320 353 1.1 1.12 4.5 6.272 6.56 17 58
6V-12V 12V 258 320 194 1.13 1.52 4.3 8.512 6.56 31 58
6V-12V 12V 160 320 120 1.14 2.56 4.2 14.336 6.56 50 58
6V-12V 12V 80 320 60 1.12 4.05 4.3 22.68 6.56 100 58
6V-12V 12V 40 320 30 1.13 9.85 4.2 55.16 6.56 200 58
6V-12V 12V 28 320 21 1.13 12.86 3.8 ban 6.56 290 58
6V-12V 12V 16 320 12 1.14 20.98 3.6 6.56 500 58
6V-12V 12V 12 320 9 1.09 31.86 3.2 6.56 670 58
2480 12V-24V 24V 471 280 353 0.742 1.35 5.2 5.8725 4.2 17 58
12V-24V 24V 258 280 194 0.714 1.45 4.3 6.3075 4.2 31 58
12V-24V 24V 160 280 120 0.686 2.75 4.3 11.9625 4.2 50 58
12V-24V 24V 80 280 60 0.658 4.85 4.3 21.0975 4.2 100 58
12V-24V 24V 40 280 30 0.672 10.12 3.85 44.022 4.2 200 58
12V-24V 24V 28 280 21 0.6874 12.96 3.58 ban 4.2 290 58
12V-24V 24V 16 280 12 0.6944 23.68 3.31 4.2 500 58
12V-24V 24V 12 280 9 0.7224 26.85 3.23 4.2 670 58
2450 12V-24V 24V 295 100 221 0.456 0.68 1.45 2.958 1.8 17 58
12V-24V 24V 161 100 121 0.358 1.78 2.32 7.743 1.8 31 58
12V-24V 24V 100 100 75 0.402 2.65 2.18 11.5275 1.8 50 58
12V-24V 24V 50 100 38 0.412 5.86 2.85 25.491 1.8 100 58
12V-24V 24V 25 100 19 0.385 12.86 2.05 55.941 1.8 200 58
12V-24V 24V 17 100 13 0.426 13.82 2.22 60.117 1.8 290 58
12V-24V 24V 10 100 8 0.416 24.2 2.52 105.27 1.8 500 58
12V-24V 24V 7 100 6 0.416 29.85 2.32 129.8475 1.8 670 58
2435 12V-24V 24V 206 90 154 0.242 0.42 0.56 1.827 0.76 17 58
12V-24V 24V 113 90 85 0.238 0.68 0.72 2.958 0.76 31 58
12V-24V 24V 70 90 53 0.236 2.28 1.35 9.918 0.76 50 58
12V-24V 24V 35 90 26 0.247 5.65 1.68 14.98 0.76 100 58
12V-24V 24V 18 90 13 0.225 9.56 1.59 28.59 0.76 200 58
12V-24V 24V 12 90 9 0.218 10.98 1.25 ban 0.76 290 58
12V-24V 24V 7 90 5 0.256 15.83 0.68 0.76 500 58
12V-24V 24V 5 90 4 0.245 19.25 0.76 0.76 670 58
