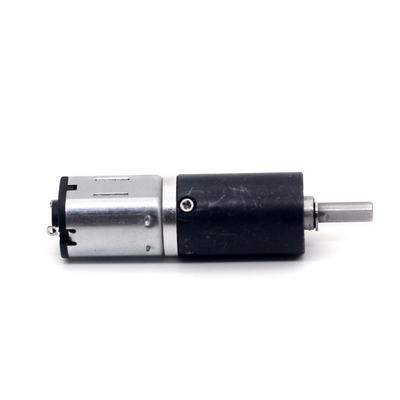

12V Micro High-Speed Brush DC Electric Gearbox PG12-N20 High Quality 12mm DC Reduction Gear Motor

Large Image : 12V Micro High-Speed Brush DC Electric Gearbox PG12-N20 High Quality 12mm DC Reduction Gear Motor

Product Details:

Place of Origin:	China
Brand Name:	ASLONG
Certification:	CE,CC
Model Number:	PG12-N20

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	Negotiation
Packaging Details:	bubble +carton
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 Pieces Per Day

Contact Now

12V Micro High-Speed Brush DC Electric Gearbox PG12-N20 High Quality 12mm DC Reduction Gear Motor

Description

Product Name:	PG12-N20	Application:	Robot
Motor Type:	Planetary Motor Dc 6v	Keywords:	Micro DC Deceleration Motor
Rated Voltage:	6V	Power:	0.25W
Size:	12mm	Typical Applications:	Robot
Output Shaft Diameter:	3MM (D-axis)	Noise:	Low Noise


Description:

The 3V 6V 12V N20 Dc geared motor, DC Motor (High Torque) is a lightweight, high torque, and low RPM motor. This motor is equipped with a gearbox assembly to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is customization long and 3 mm in diameter.

This motor has low energy consumption and low noise. Replacement of spare parts will make your electrical and testing equipment look new. The bearing quality and the service life of the geared motor are improved, and it is extremely durable.

Because of its small size, the motor fits in complex spaces of small-scale applications. One can connect this Micro Gear Motor to wheels to drive them from one place to another while carrying high loads.

The motor is used in DIY RC Hobby, vehicles, drones, airplanes, etc., the miniature gearbox motor, it is an excellent substitute for the rusty or damaged DC geared motor on the machine.

Now ,you can get our this 12mm dc gear motor with magnetic encoder(JGA12-N20B),and other related 12mm gearbox motors as following:


JGA12-N20B	JGA12-N10	JGA12-N30	JGA1024-N20

JGY-N20	JGY-N20S	JGA12-N20 sets	GM12-15by

Product Description

Types of	Micro DC deceleration motor
Model	PG12-N20
Power	0.25W
Rated voltage	6V
no-load current	25MA
no-load speed	9-500RPM
Reducer diameter	12mm
Output shaft diameter	3MM (D-axis)
Adjustable speed, forward and reverse rotation, customizable
