12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor

12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor

Large Image :  12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: Rosh,CE
Model Number: PG32-3157
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: bubble + carton
Delivery Time: 5-8Working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10000pcs/week
Contact Now

12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor

Description
Usage: Home Appliance,Electric Bicycle, Car Speed(rpm): 57-2152RPMrpm(no Load)
Type: 32mm Diameter Micro Planetary Gear Motor Protect Feature: Totally Enclosed
Torque: 0.7-100KG.cm Voltage(v): 12V/24VDC
Product Name: Micro DC Planetary Gearbox Motor Diameter: 32mm
Typical Applications: Electric Toy Model,Curtain Shaft Diameter: 8MM

12v 1600rpm Brushless Planetary Gear Motor



12v 1600rpm Brushless Planetary Gear Motor 24V 36mm Gearbox For Home Appliance High Torque Low Noise





12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 012V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 1





  Planetary gearbox Micro Dc Gear Motor Description:



Now ,you can get our this planeatry gearbox dc gear motor and other related planetary gearbox motors as following:



12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 2 12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 3 12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 4 12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 5

PG36-3650

PG36-3625

 PG36-555

PG32-31ZY
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 6 12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 7 12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 8 12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 9
PG28-385 PG28-2838 PG42-4260 PG45-4575

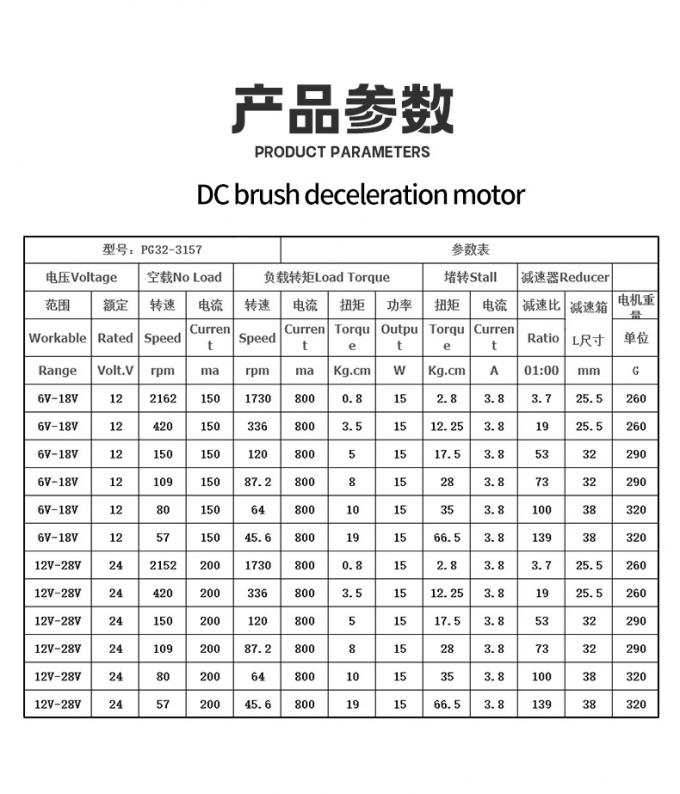

Product Description
Types of
Micro planetary gear reduction motor
Model
PG32-3157
Power
15W
Rated voltage
12V/24V
no-load current
150-200MA
no-load speed
57-2162RPM
Reducer diameter
32mm
Output shaft diameter
6MM (D-axis)
Adjustable speed, forward and reverse rotation, customizable
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 10

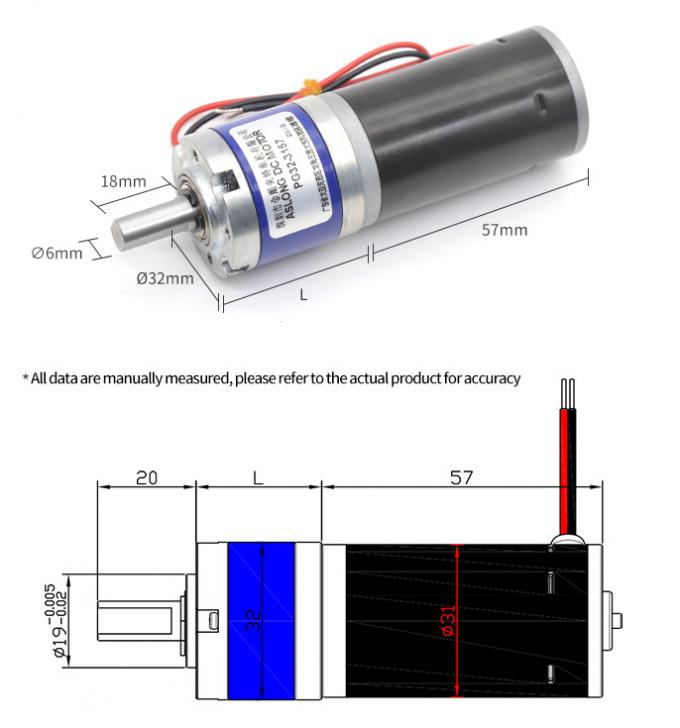

12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 11

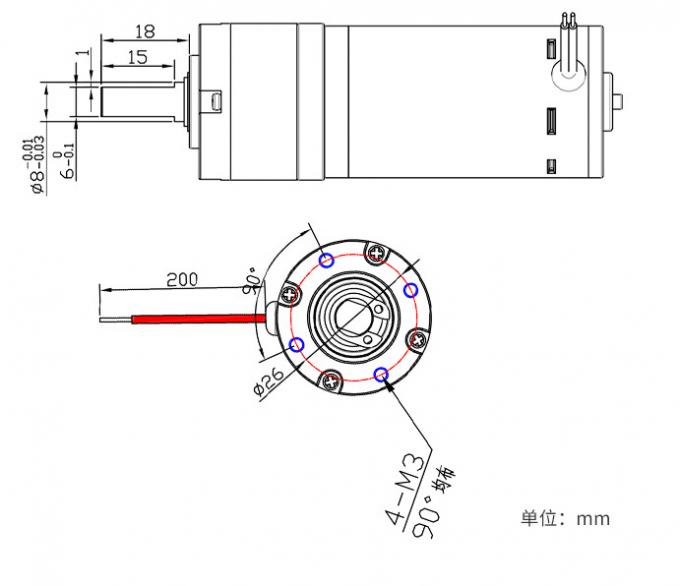

12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 12

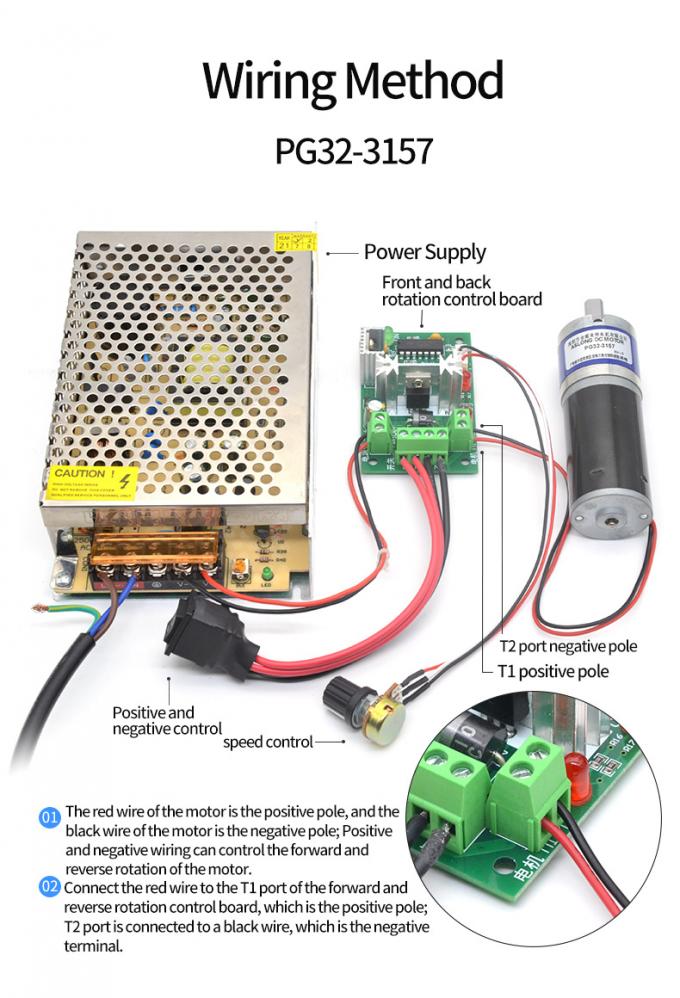

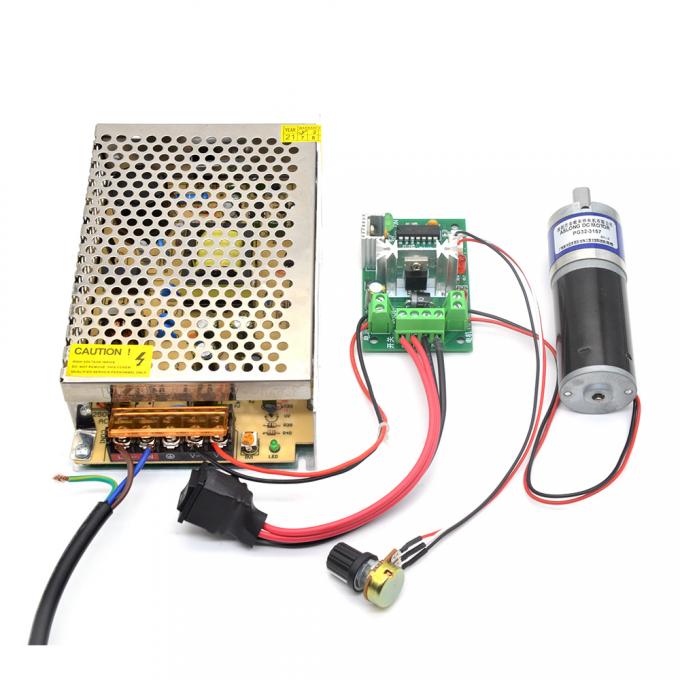

Suit 1 Motor+J809 speed controller+12V5A
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 13
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 14

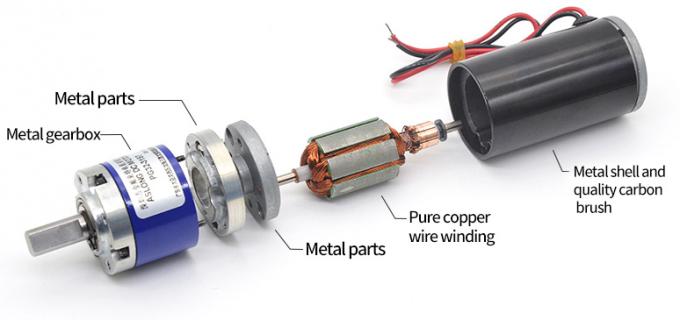

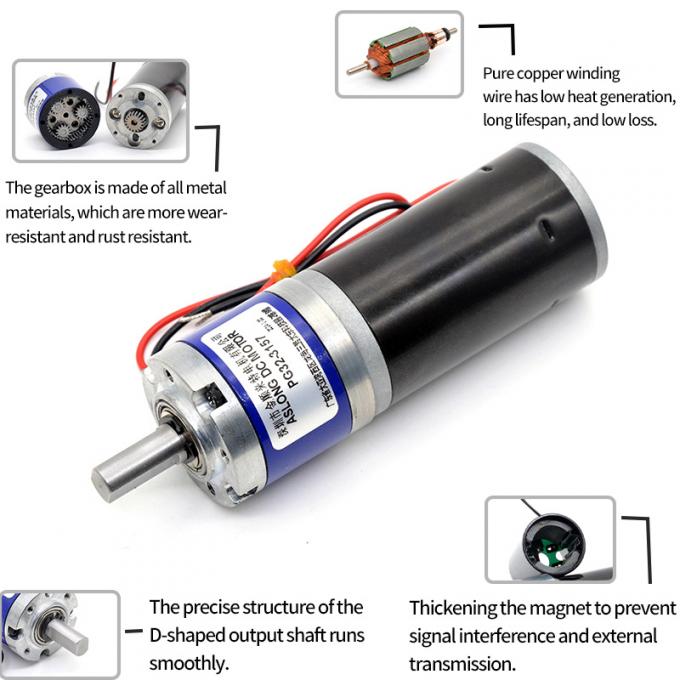

product details
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 15
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 16
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 17
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 18

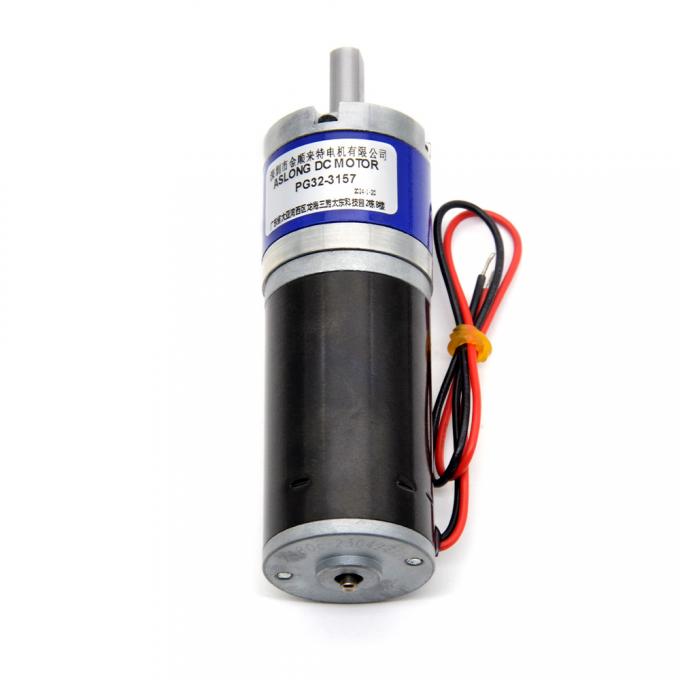

12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 19

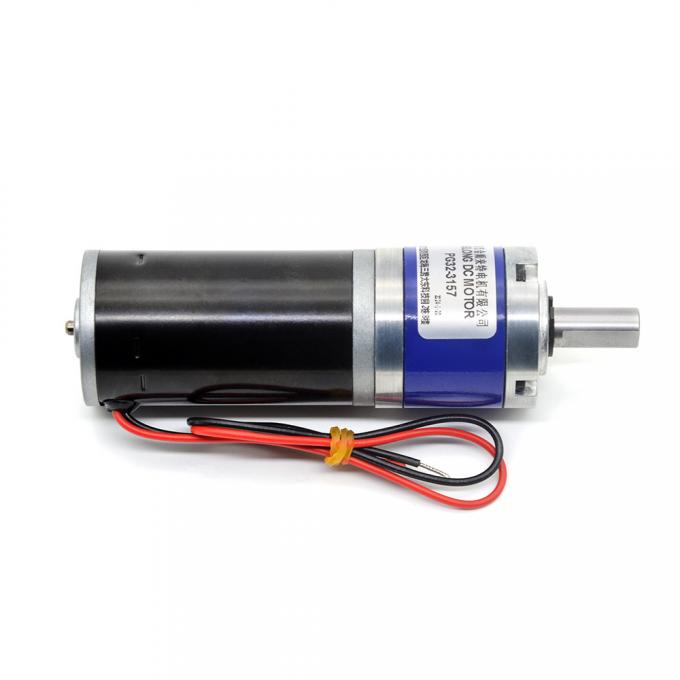

12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 20

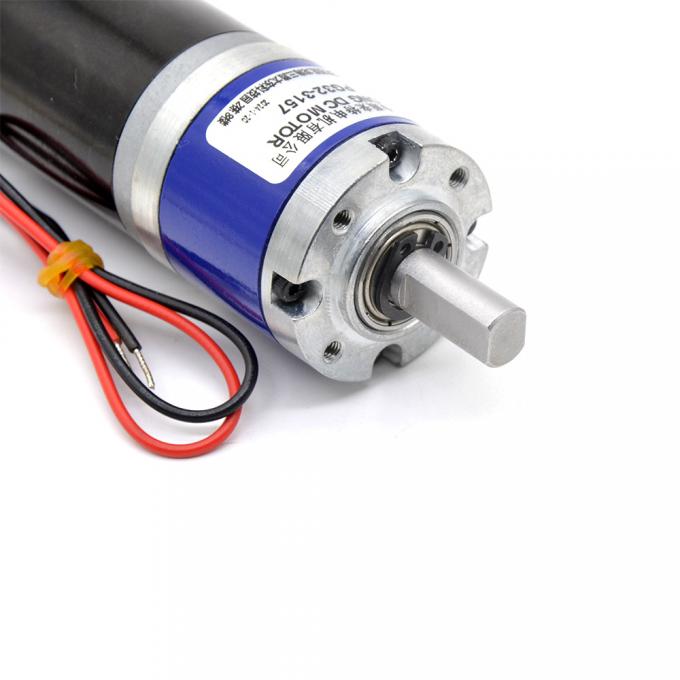

12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 21
Company Profile
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 22
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 23
Shenzhen Jinshunlaite Motor Co., Ltd. is a manufacturer of dc gear motor,bldc motor,worm gear motor,micro motor,pwm motor etc, with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Delivery and Packing
12V/24V PG32-3157 Brushed Planetary Gear Micro Motor 24V DC Planetary Gear Motor 24
FAQ
1)What's the price?
We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

2)What's the MOQ?
We try to meet every client's requests and don't want to disappoint our clients.
So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

3)What's the delivery time?
At the first we have an schedule,the earlier you place order,the fater we finish the production.
In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.

4)Can you send some samples before the order?
Yes of course,we must send the sample to confirm the quality with you first.
UPS,TNT,FEDEX or DHL are all available.

5)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable.
So logo in usually logo is necessary.It can be labeled on the motors.

6)What's the payment term?
For small amount,we accept 100% payment via paypal.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.
And the rest must be paid before shipping.

7)How to deliver the goods?
we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.

8)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable.
So logo in usually logo is necessary.It can be printed,emboridered,embossed/jacquard.

9)What's the payment term?
For small amount,we accept 100% payment via Western Union.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.
And the rest must be paid before shipping.

10)How to deliver the goods?
If goods quantity is small,we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and clients don't need to pay the custom charge.
If goods quantity is large,we will ship by sea.It will be very economical.

11)Does your company supply to any famous hotels?
As a leading manufactuer of hotel products,we have many famous hotel and resort clients.
Such as InterContinental Hotels Group,Marriott Hotel,The Ritz Carlton Hotel and son on.
If you need some samples of them,we can send out.

12)Any other questions kindly chat with our sales,they will do the best to serve you.
