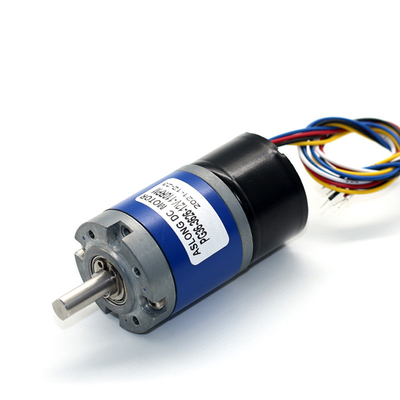

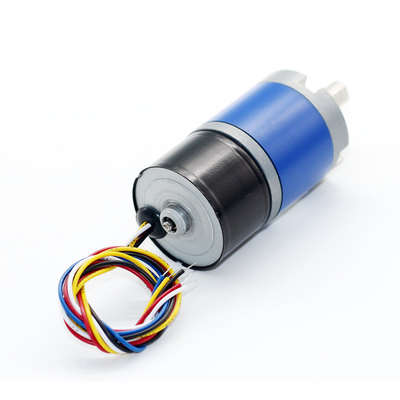

PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor

PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor
PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor

Large Image :  PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE
Model Number: PG36-3625
Payment & Shipping Terms:
Minimum Order Quantity: 4
Price: negotiation
Packaging Details: bubble +carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Pieces Per Day

PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor

Description
Home Improvement: Dc Gear Motor Electrical Equipment: 12v Dc Planetary Gear Motor
Motor: 24v Dc Motor Recuder: Planetary Structure
Torque: Up To 100 Pounds

PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor 10

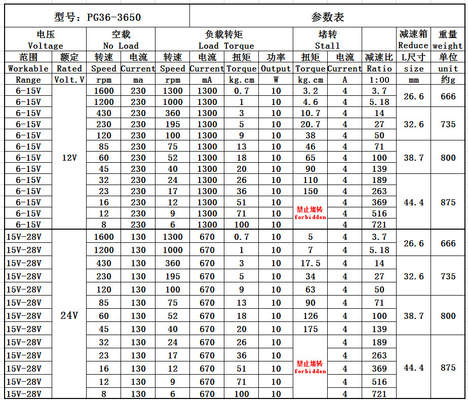

Datasheet
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min MA r/min MA Kg.cm
PG36-3625 6-24V 12VDC 1600 230 1300 1300 0.7
6-24V 12VDC 1200 230 1000 1300 1
6-24V 12VDC 430 230 360 1300 3
6-24V 12VDC 230 230 195 1300 5
6-24V 12VDC 120 230 100 1300 9
6-24V 12VDC 85 230 75 1300 13
6-24V 12VDC 60 230 52 1300 18
6-24V 12VDC 45 230 40 1300 20
6-24V 12VDC 32 230 24 1300 26
6-24V 12VDC 23 230 17 1300 36
6-24V 12VDC 16 230 12 1300 51
6-24V 12VDC 12 230 9 1300 71
6-24V 12VDC 8 230 6 1300 100
6-24V 24VDC 1600 130 1300 1300 0.7
6-24V 24VDC 1200 130 1000 670 1
6-24V 24VDC 430 130 360 670 3
6-24V 24VDC 230 130 195 670 5
6-24V 24VDC 120 130 100 670 9
6-24V 24VDC 85 130 75 670 13
6-24V 24VDC 60 130 52 670 18
6-24V 24VDC 45 130 40 670 20
6-24V 24VDC 32 130 24 670 26
6-24V 24VDC 23 130 17 670 36
6-24V 24VDC 16 130 12 670 51
6-24V 24VDC 12 130 9 670 71
6-24V 24VDC 8 130 6 670 100

PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor 11PG36-3625 12/24V 8-1600RPM Micro DC Motor High Torque Metal Tooth Adjustable Speed Planetary Brushless Reduction Motor 12
