ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

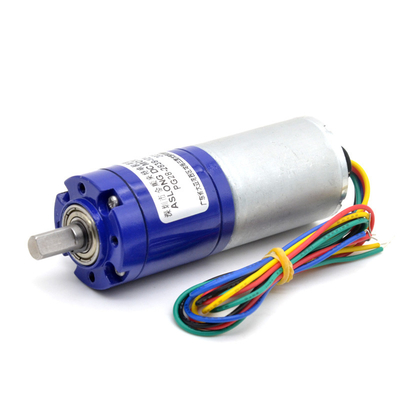

ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor

ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor
ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor

Large Image :  ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: Rosh,CE
Model Number: PG28-28.8
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiation
Packaging Details: bubble + carton
Delivery Time: 5-8Working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10000pcs/week

ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor

Description
Usage: Home Appliance,Electric Bicycle,Robot Speed(rpm): 12-1780rpm
Type: Planetary Brushless DC Reduction Motor Protect Feature: Totally Enclosed
Torque: 200kg.cm Voltage(v): 10VDC
Product Name: Micro DC Planetary Gearbox Motor Diameter: 28mm
Typical Applications: Electric Toy Model,Curtain Shaft Diameter: 6MM
Customized: Customizable



ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 0ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 1





  Planetary gearbox Micro Dc Gear Motor Description:



Now ,you can get our this planeatry gearbox dc gear motor and other related planetary gearbox motors as following:



ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 2 ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 3 ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 4 ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 5

PG36-3650

PG36-3625

PG36-555

PG32-31ZY

ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 6 ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 7 ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 8 ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 9
PG28-385 PG28-2838 PG42-4260 PG45-4575



【Manufacturer's direct store】
We are a professional manufacturer of various DC reduction motors for over 14 years. We not only provide stable and excellent quality, but also provide excellent services. If you need customized parameters and mass production, we can provide you. Please feel free to contact us for more details.
【Quality of motor】
We have specialized equipment for testing and developing motors. We use all metal gear motors with long lifespan and noise. We will never cut corners to save costs. We will conduct strict testing on the motor before shipment to ensure that it meets therequirements.

【Give service to】
We will provide you with excellent service both before and after sales. You can always contact me for more product details.

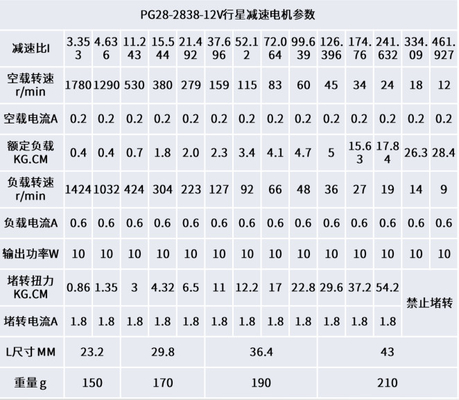

[Products Description]

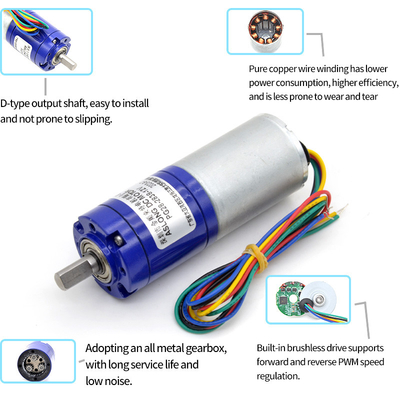

This is a planetary brushless micro DC reduction motor with built-in drive
Model PG28-2838
Continuing current 200MA
Working volt range 12V
Motor size 28mm
No-load speed 12-1780RPM
Output shaft diameter 6MM

ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 10


ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 11

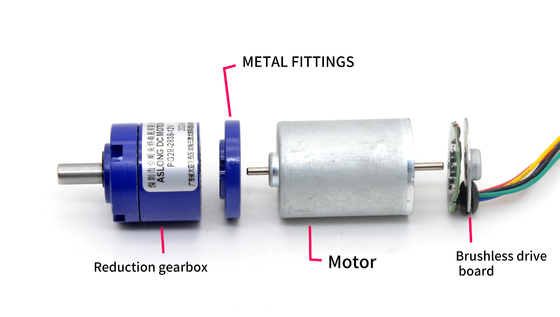

Product structure display
ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 12ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 13

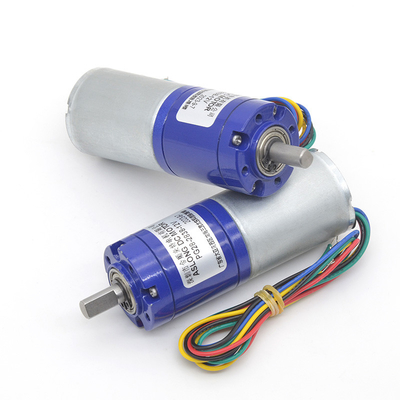

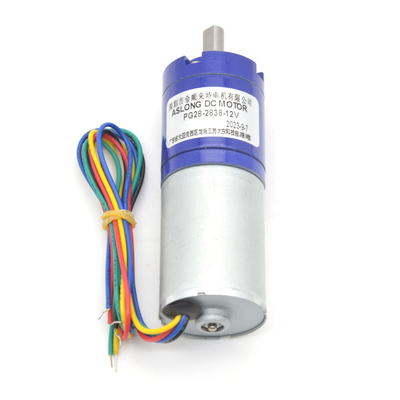

【Product display】
(Can be used for sweeping robots, automatic guidance machines, crawling robots, medical equipment robots, packaging machines, intelligent door locks, etc)

ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 14ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 15ASLONG 12V 12-1720RPM PG28-2838 28mm Planetary Brushless Micro DC Reduction Motor With Built-In Drive Low-Speed Motor 16

FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
