16mm Micro Planetary Gear Motor 24V

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

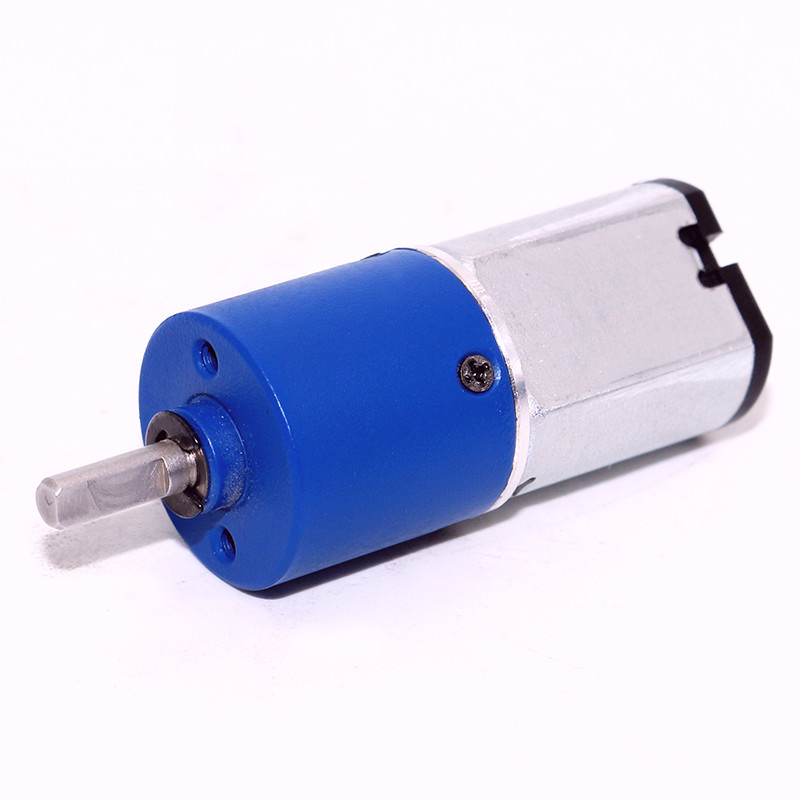

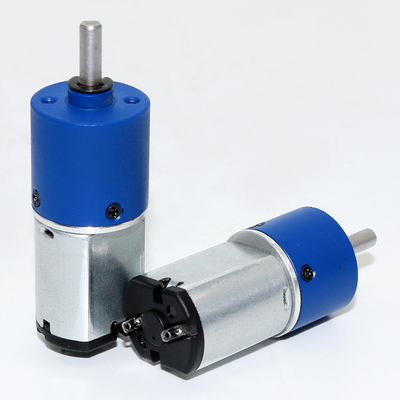

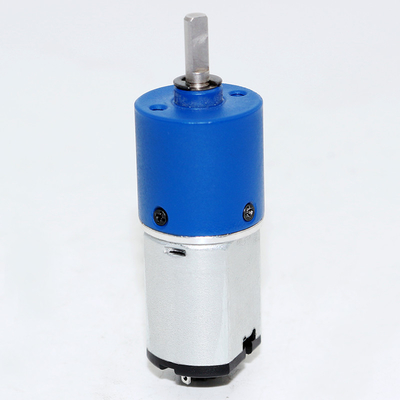

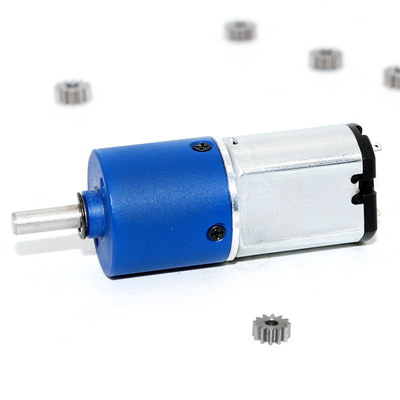

16mm Micro Planetary Gear Motor 24V

16mm Micro Planetary Gear Motor 24V
16mm Micro Planetary Gear Motor 24V 16mm Micro Planetary Gear Motor 24V 16mm Micro Planetary Gear Motor 24V 16mm Micro Planetary Gear Motor 24V

Large Image :  16mm Micro Planetary Gear Motor 24V

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: Rosh,CE
Model Number: CM16-030
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: bubble + carton
Delivery Time: 5-8Working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10000pcs/week

16mm Micro Planetary Gear Motor 24V

Description
Usage: Home Appliance,Electric Bicycle Speed(rpm): 46-3000rpm
Type: Micro Motor Protect Feature: Totally Enclosed
Torque: 14-896g.cm Voltage(v): 12V,24V,12V/24V
Efficiency: IE 1 Product Name: 24V Micro DC Planetary Gear Motor
Diameter: 16mm Typical Applications: Electric Toy Model,Curtain
Keywords: High Torque Gear Motor
High Light:

16mm Micro Planetary Gear Motor

,

16mm Planetary Gear Motor 24V

,

16mm planetary dc gear motor

16mm Micro Planetary Gear Motor 24V​



16mm Micro Planetary Gear Motor 24V Brush High Torque For Intelligent Robot , Metal Shaft Material





Specification:
Performance Range: Key Features: Typical Applications:

- Voltage: 6-12VDC

- Metal/Carbon Brush - Electric Curtain

- Speed: 46-3000rpm

- Low noise - Electric Valve

- Torque 14-896g.cm

- CW/CCW Running - Safe and Locking
- Shaft: D shape (Motor shaft shape and length can be customized) - Long life - Robot
- Construction:Permanent Magnet - Small Size - Home Appliance,
- Commutation:Brushed DC motor - High Torque - Precise equipment



Drawing:

16mm Micro Planetary Gear Motor 24V 0



Datasheet
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min MA r/min MA g.cm
CM16-030 3-12V 12VDC 3000 50 2300 130 14
3-12V 12VDC 533 50 410 130 78
3-12V 12VDC 187 50 143 130 250
3-12V 12VDC 46 50 32 130 896
Remarks:
1. Shaft dimension can be customized.
2. The Voltage can be 3V, 4.5V, 5V, 6V, 12V; The DC Motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.





16mm Micro Planetary Gear Motor 24V 1



Planetary Gear Motor

- Provides the advantages of high cost performance, wide application, economical and practical, long life, etc. In the application of servo control, it exerts good servo rigidity effect, accurate positioning control, and has medium and low backlash on the operating platform. Efficiency, high input speed, high input torque, smooth operation, low noise and other characteristics,

- The appearance and structure design are light and small. Use life-long replacement-free lubricating oil, and no matter where it is installed, it can be operated without maintenance. It has a fully enclosed design and has an IP65 degree of protection, so it can also be used when the working environment is poor. Industrial robots, and automated mechanical and electrical products industries.

--The advantages of Planetary Gear Motor are its compact structure, small return clearance, high precision, long service life, and large rated output torque.
