Product Details:
|
| Usage: | Home Appliance,Electric Bicycle,Robot | Speed(rpm): | 17-2386rpm |
|---|---|---|---|
| Type: | Micro Planetary Gear Motor | Protect Feature: | Totally Enclosed |
| Torque: | 0.37-28.4kg.cm | Voltage(v): | 12-24VDC |
| Product Name: | Micro DC Planetary Gearbox Motor | Diameter: | 25mm |
| Typical Applications: | Electric Toy Model,Curtain | Shaft Diameter: | 6MM |
| High Light: | 25mm 24V Dc Planet Gear Motor,Rosh Dc Planet Gear Motor,25mm 24V planetary dc motor |
||

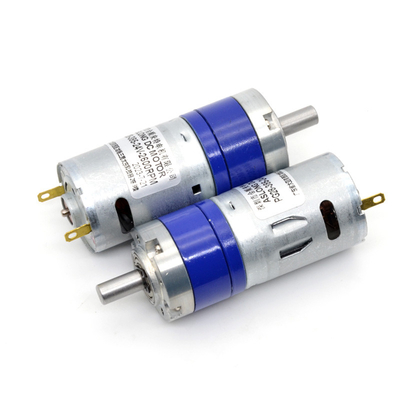

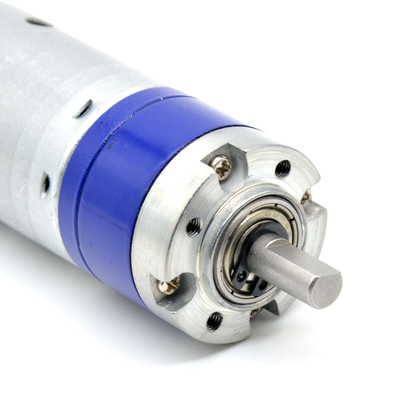

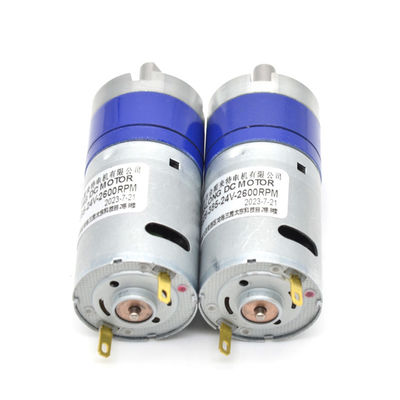

28mm 24V Dc Planet Gear Motor High Torque Planetary Gearbox For Smart Lock
Dc Planet Gear Motor 28mm Hollow Shaft Micro High Torque Planetary Gearbox For Smart Lock
| Specification: | ||
| Performance Range: | Key Features: | Typical Applications: |
| - Voltage: 12-24VDC | - Multi-speed optional | Electric Curtain |
| - Speed: 17-2386rpm | - Low noise | Electric Valve |
| - Torque :0.37-28.4Kg.cm | - CW/CCW Running | Safe and Locking |
| - Shaft: D shape (Motor shaft shape and length can be customized) | - Adjustable speed | Robot |
| - Construction:Permanent Magnet | - Small Size | Home Appliance, |
| - Commutation:Brushed DC motor | - High Torque | Precise equipment |
Drawing:
| Datasheet: | |||||||
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | Kg.cm | |||
| CM28-385 | 6-24V | 24VDC | 2386 | 0.1 | 1324 | 0.764 | 0.37 |
| 6-24V | 24VDC | 1726 | 0.1 | 1253 | 0.623 | 0.43 | |
| 6-24V | 24VDC | 712 | 0.1 | 562 | 0.462 | 0.74 | |
| 6-24V | 24VDC | 515 | 0.1 | 322 | 0.615 | 1.79 | |
| 6-24V | 24VDC | 372 | 0.1 | 260 | 0.55 | 2 | |
| 6-24V | 24VDC | 212 | 0.1 | 174 | 0.407 | 2.26 | |
| 6-24V | 24VDC | 153 | 0.1 | 112 | 0.534 | 3.39 | |
| 6-24V | 24VDC | 111 | 0.1 | 90 | 0.44 | 4.05 | |
| 6-24V | 24VDC | 80 | 0.1 | 71 | 0.359 | 4.73 | |
| 6-24V | 24VDC | 63 | 0.1 | 53 | 0.345 | 5 | |
| 6-24V | 24VDC | 46 | 0.1 | 35 | 0.634 | 15.63 | |
| 6-24V | 24VDC | 33 | 0.1 | 27 | 0.515 | 17.84 | |
| 6-24V | 24VDC | 24 | 0.1 | 19 | 0.611 | 26.3 | |
| 6-24V | 24VDC | 17 | 0.1 | 15 | 0.42 | 28.4 | |
| Remarks: 1. Shaft dimension can be customized. 2. The Voltage can be 6V-24V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
