Product Details:
|
| Usage: | Home Appliance,Electric Bicycle | Speed(rpm): | 46-3000rpm |
|---|---|---|---|
| Type: | Planetary Motor | Protect Feature: | Totally Enclosed |
| Torque: | 20-1280g.cm | Voltage(v): | 6-12VDC |
| Product Name: | 6-12VDC Micro DC Planetary Gear Motor | Diameter: | 16mm |
| Typical Applications: | Electric Toy Model,Curtain | Shaft Diameter: | 8MM |
| High Light: | 16mm Planetary DC Gear Motor,3000Rpm Planetary DC Gear Motor,3000Rpm planetary dc motor |
||

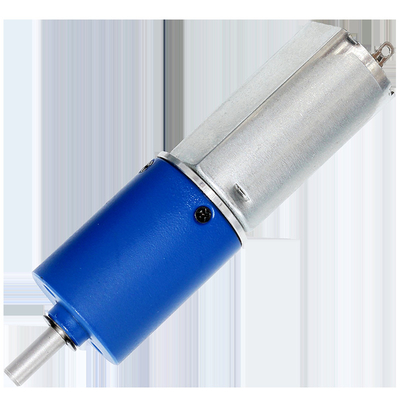

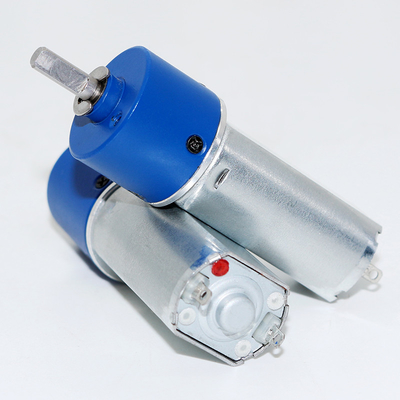

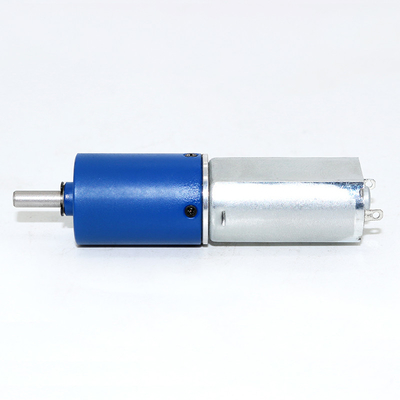

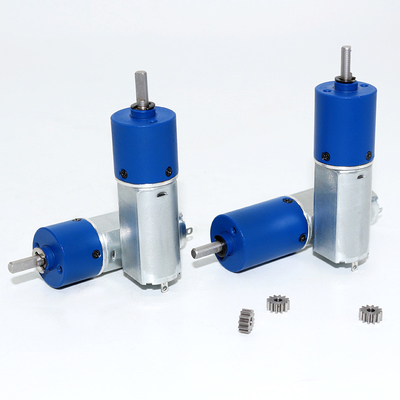

16mm Micro Planetary DC Gear Motor High Torque 6v 3000 Rpm Low Noise
16mm Micro Planetary Gear Motor, Dc Micro Motor With Planetary Gear Head
Specification:
Voltage:12V
No-load speed:3000rpm 533rpm 187rpm 46rpm
Micro body large torque
High quality and 100% brand new
customized when your order >100pcsf
weigth:45g
| Specification: | ||
| Performance Range: | Key Features: | Typical Applications: |
| Voltage: 6-12VDC | Metal/Carbon Brush | Electric Curtain |
| Speed: 46-3000rpm | Low noise | Electric Valve |
| Torque: 20-1280g.cm | CW/CCW Running | Safe and Locking |
| Shaft: D shape (Motor shaft shape and length can be customized) | Long life | Robot |
| Construction:Permanent Magnet | Small Size | Home Appliance, |
| Commutation:Brushed DC motor | High Torque | Precise equipment |
Drawing:
| Datasheet | |||||||
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | MA | r/min | MA | g.cm | |||
| CM16-050 | 3-12V | 12VDC | 3000 | 55 | 2300 | 200 | 20 |
| 3-12V | 12VDC | 533 | 55 | 410 | 200 | 110 | |
| 3-12V | 12VDC | 187 | 55 | 143 | 200 | 320 | |
| 3-12V | 12VDC | 46 | 55 | 35 | 200 | 1280 | |
| Remarks: 1. Shaft dimension can be customized. 2. The Voltage can be 3V, 4.5V, 5V, 6V, 12V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
