Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor

Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor

Large Image :  Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE,CC
Model Number: PG12-N20
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiation
Packaging Details: bubble +carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Pieces Per Day
Contact Now

Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor

Description
Product Name: PG12-N20 Application: Robot
Motor Type: Planetary Motor Dc 6v Keywords: Micro DC Deceleration Motor
Rated Voltage: 6V Power: 0.25W
Size: 12mm Typical Applications: Robot
Output Shaft Diameter: 3MM (D-axis) Noise: Low Noise

N20 Small DC Gear Motors

Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 0Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 1






Description:



The 3V 6V 12V N20 Dc geared motor, DC Motor (High Torque) is a lightweight, high torque, and low RPM motor. This motor is equipped with a gearbox assembly to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is customization long and 3 mm in diameter.



This motor has low energy consumption and low noise. Replacement of spare parts will make your electrical and testing equipment look new. The bearing quality and the service life of the geared motor are improved, and it is extremely durable.



Because of its small size, the motor fits in complex spaces of small-scale applications. One can connect this Micro Gear Motor to wheels to drive them from one place to another while carrying high loads.



The motor is used in DIY RC Hobby, vehicles, drones, airplanes, etc., the miniature gearbox motor, it is an excellent substitute for the rusty or damaged DC geared motor on the machine.



Now ,you can get our this 12mm dc gear motor with magnetic encoder(JGA12-N20B),and other related 12mm gearbox motors as following:



Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 2 Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 3 Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 4 Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 5
JGA12-N20B JGA12-N10 JGA12-N30 JGA1024-N20
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 6 Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 7 Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 8 Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 9
JGY-N20 JGY-N20S JGA12-N20 sets GM12-15by






Product Description

Types of
Micro DC deceleration motor
Model
PG12-N20
Power
0.25W
Rated voltage
6V
no-load current
25MA
no-load speed
9-500RPM
Reducer diameter
12mm
Output shaft diameter
3MM (D-axis)
Adjustable speed, forward and reverse rotation, customizable
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 10

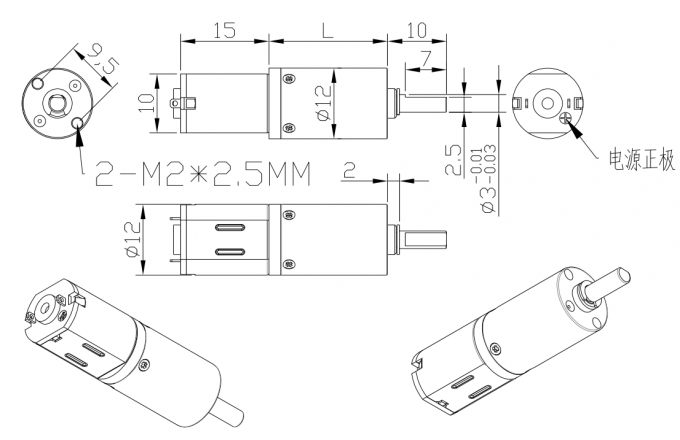

Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 11
Suit 1 Motor+12V2A power supply
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 12
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 13
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 14

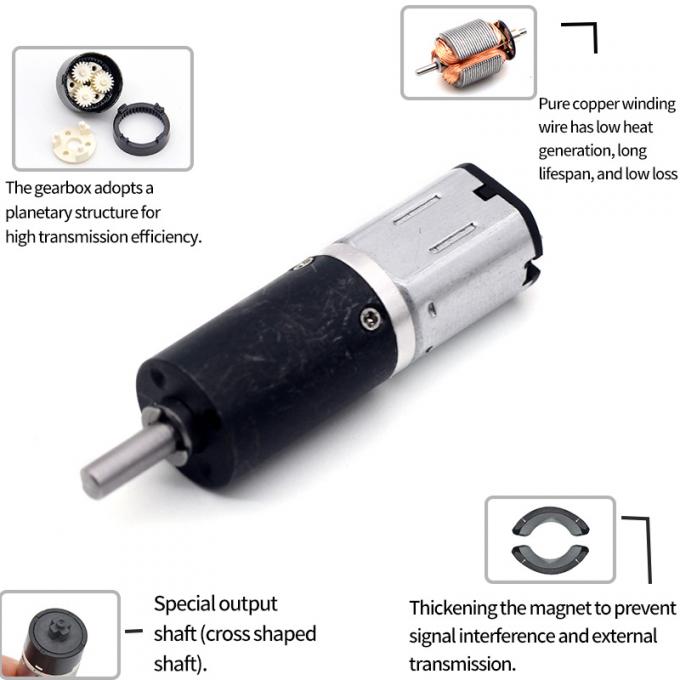

product details
Brushed Dc Planetary Gear Motor 12mm PG12-N20 Planetary Motor Dc 6v Precision Gear Low-Speed Small Motor 15
