ASLONG JGY-370S 12V/24V 46*32MM Brushed DC Turbine Worm Reduction Motor dual output shaft worm gear reducer motor

Large Image : ASLONG JGY-370S 12V/24V 46*32MM Brushed DC Turbine Worm Reduction Motor dual output shaft worm gear reducer motor

Product Details:

Place of Origin:	China
Brand Name:	ASLONG
Certification:	CE,CC
Model Number:	JGY-370

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	Negotiation
Packaging Details:	bubble +carton
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 Pieces Per Day

Contact Now

ASLONG JGY-370S 12V/24V 46*32MM Brushed DC Turbine Worm Reduction Motor dual output shaft worm gear reducer motor

Description

Brand:	ASLONG	Workable Voltage:	12/24V
Motor Type:	PMDC Brushed Motor	Product Character:	Square Gear Box High Torque
Factory Property:	Professional Manufacturer	Quality Policy:	Life Long Warranty
OEM Service:	Yes	No-loading Current:	0.6A
Certification:	CE RoHS FCC	Keywords:	High Torque Gear Motor

Product Description

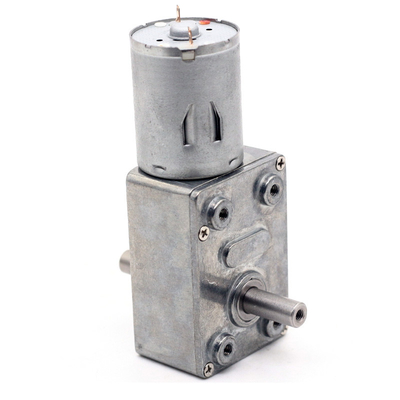

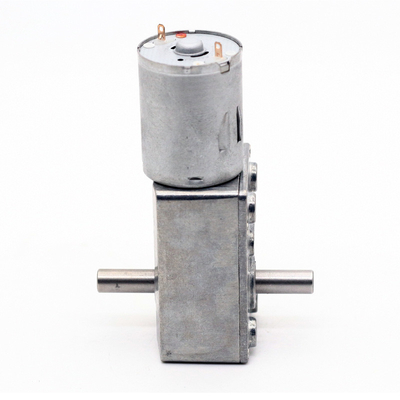

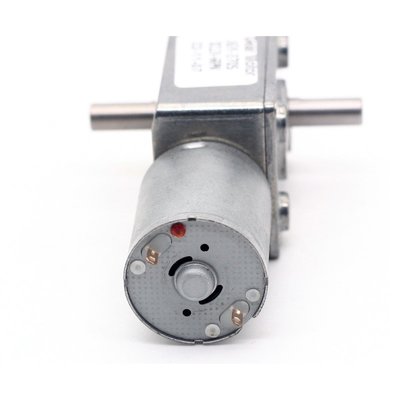

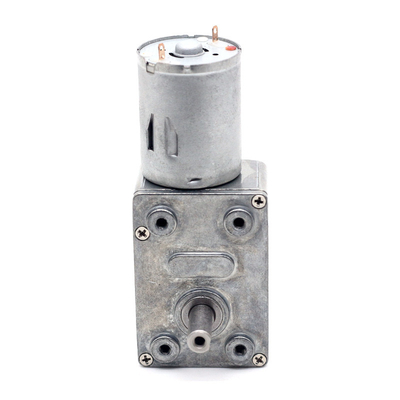

JGY-370 Turbine worm gear motor

Specifications:
* Rated Volt: DC 6v 12V 24V

* Speed(No load): 2/6/10/18/23/30/40/90/150 RPM

* Max torque:24kg.cm

* Main Material:Metal

* Weight:160g

Hobbing gear team

Worm gear material : PHCu--Fe 1144

Reducer shell : Zn-alloy

size: 46*32

gear material can be customized

370 DC MOTOR

Brushed dc motor

copper wire winding

shaft dia:2mm, motor shaft

gear reducer

Make it by ourself

owned brand : aslong

Red pot for motor engine + , another for motor -

Product Drawing

Turbine worm gear motor .

shaft length and motor speed can be customized ;

Product Paramenters

Model:JGY-370				Parameter
Voltage	No Load		Load Torque				Stall		Reducer
Rated	Speed	Current	Speed	Current	Torque	Output	Torque	Current	Ratio
Volt.V	rpm	mA	rpm	mA	kg.cm	W	kg.cm	A	1:00
6V	160	60	128	300	0.55	2	3	2	37.3
6V	100	60	80	300	1.5	2	6	2	60
6V	40	60	32	270	3	2	15	2	150
6V	24	60	19	270	5	2	20	2	250
6V	19	60	15	270	6	2	30	2	324
6V	10	60	8	260	12	2	60	2	600
6V	6	60	5	260	19	2	ban	2	972
6V	4	60	3	260	30	2	ban	2	1700
6V	2	60	2	260	58	2	ban	2	2900

Our advantage

1.Company Advantage:

A. Our company is a large-scale professional manufacturer deeply trusted by domestic and overseas customers, integrating development, production, wholesales and service.

B. To ensure high-quality and best service ,kingly built up professional teams engaged in research,product engineering and sales.

C. We have 10 years experience in the design of the research and development, With strong technology developing ability and manufacturing capability, advanced equipment

2. Product Advantage:

A. Variety of products,quality guaranteed, products are widely used

B. Advanced product testing equipment

C. Product flexibility, customize according to the requirements of the clients any special develop all kinds of molds, Independent research and development since the open mold products

D. Products through a variety of certification(CE,RoHs,ISO,CCC,UL….) E. Some products have patent certificate

3. Main product advantage:

A . Specifications can be tailoer-made according to customer’s requirements.

B. Can provide free samples

C. Product quality is guaranteed, a short period of delivery

Company Profile

Shenzhen Jinshunlaite Motor co.,Ltd was established in 2005,its headquarters are in shenzhen.The company is a private enterprises which is specialized in producing micro motor and gear reducer.The products are mainly used in precision machinery,precise instruments,medical facility,banking equipment,vending machines,robotics industries.
Company has always adhered the management philosophy of “scientific and technological innovation,quality first”,“Attentively make every motor” is the basic norms of every employee.The company brand,ASLONG,Lays a solid foundation at home and abroad,and becomes the well-know professional brand in C

Packing & Delivery

FAQ

1)What's the price?
We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

2)What's the MOQ?
We try to meet every client's requests and don't want to disappoint our clients.
So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

3)What's the delivery time?
At the first we have an schedule,the earlier you place order,the fater we finish the production.
In the slack season,we can make sure the delivery time is by one month.
In the busy season,we need more than one month if your quantity is large.
The most important,we can provide free overtime prodution if your order is really urgent.

4)Can you send some samples before the order?
Yes of course,we must send the sample to confirm the quality with you first.
UPS,TNT,FEDEX or DHL are all available.

5)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable.
So logo in usually logo is necessary.It can be labeled on the motors.

6)What's the payment term?
For small amount,we accept 100% payment via paypal.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.
And the rest must be paid before shipping.

7)How to deliver the goods?
we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.

8)Can you make our logo on the products?
Certainly,logo is easy as most of our products are customizable.
So logo in usually logo is necessary.It can be printed,emboridered,embossed/jacquard.

9)What's the payment term?
For small amount,we accept 100% payment via Western Union.
For large amount,we accept 30% telegraphic transfer(TT) as the deposit.
And the rest must be paid before shipping.

10)How to deliver the goods?
If goods quantity is small,we will deliver via Express such as UPS,FEDEX,DHL,TNT etc.
It is fast and clients don't need to pay the custom charge.
If goods quantity is large,we will ship by sea.It will be very economical.

11)Does your company supply to any famous hotels?
As a leading manufactuer of hotel products,we have many famous hotel and resort clients.
Such as InterContinental Hotels Group,Marriott Hotel,The Ritz Carlton Hotel and son on.
If you need some samples of them,we can send out.

12)Any other questions kindly chat with our sales,they will do the best to serve you.
