Product Details:
|
| Usage: | For Robot Smart Car | Commutation: | Brushed |
|---|---|---|---|
| Speed(rpm): | 12-470rpm | Type: | Worm Gear Motor With Encoder |
| Efficiency: | IE 1 | Construction: | Permanent Magnet |
| Material: | Stainless Steel | Voltage: | 12V/24V |

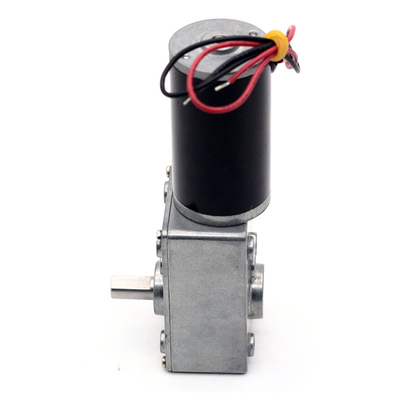

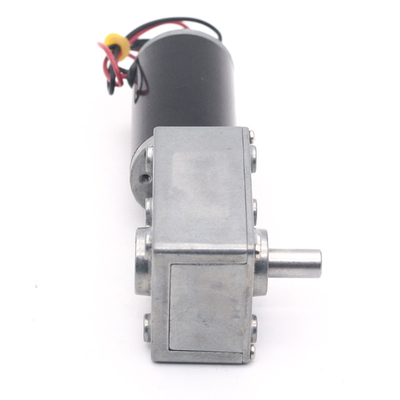

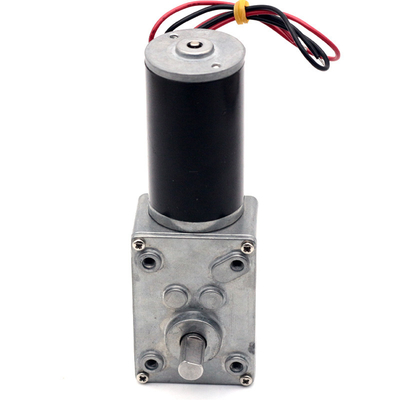

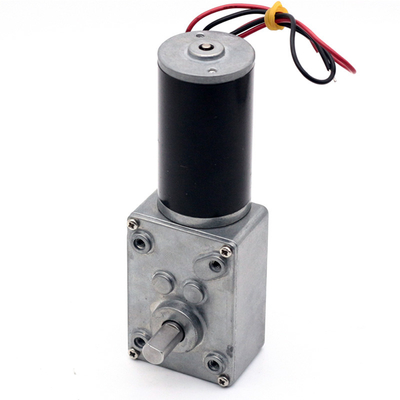

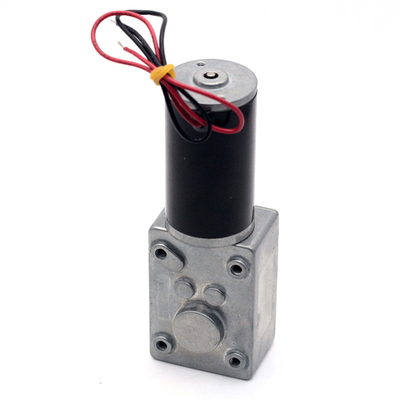

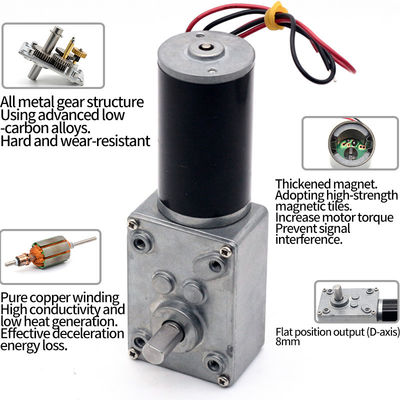

5840 31zy DC Worm Gear Motors Type D Shaft 24v Gear Motor With Encoder
5840-31zy DC12V 24V Powerful Torque Turbo Worm Geared Motor Type-D Shaft High Power Reversed Low Speed
| Worm gearbox Micro Dc Gear Motor Description: |
Now ,you can get our this worm gearbox dc gear motor and other related worm gearbox motors as following:
No-load Speed: 470rpm,260rpm,160rpm,80rpm,40rpm,27rpm,16rpm,12rpm
No-load Speed: 470rpm,260rpm,160rpm,80rpm,40rpm,27rpm,16rpm,12rpm,10rpm,7rpm
Voltage/rpm/shaft can be customized , welcome to consult.
Datasheet:
| 1280 | No load | Rated | Stall | Weight | ||||||
| Rated voltaqe | Speed | Current | Speed | Current | Torque | Power | Torque | Current | ||
| V | RPM | A | RPM | A | KG.CM | W | KG.CM | A | g | |
| 5840-31ZY-17X | 12 | 470 | 0.3 | 405 | 1 | 0.95 | 4.03 | 53 | 65 | 355 |
| 5840-31ZY-31X | 12 | 260 | 0.3 | 225.9 | 1.129 | 1.49 | 3.52 | 10.42 | 6.5 | 355 |
| 5840-31ZY-49X | 12 | 160 | 0.3 | 139.9 | 1.101 | 2.33 | 3.41 | 13.61 | 6.5 | 355 |
| 5840-31ZY-100X | 12 | 80 | 0.3 | 71.9 | 1.155 | 394 | 2.96 | 25.59 | 6.5 | 355 |
| 5840-31ZY-200X | 12 | 40 | 0.3 | 378 | 1.031 | 1031 | 4.08 | 47.2 | 65 | 355 |
| 5840-31ZY-290X | 12 | 27 | 0.3 | 229 | 1.117 | 1326 | 3.17 | 65.74 | 6.5 | 355 |
| 5840-31ZY-500X | 12 | 16 | 0.3 | 14.4 | 1.106 | 20.62 | 2.6 | Ban stall | 355 | |
| 5840-31ZY-670X | 12 | 12 | 0.3 | 106 | 1.088 | 3057 | 309 | 355 | ||
| 2480 | No load | Rated | Stall | Weight | ||||||
| Rated voltaqe | Speed | Current | Speed | Current | Torque | Power | Torque | Current | ||
| V | RPM | A | RPM | A | KG CM | w | KGCM | A | g | |
| 5840-31ZY-17X | 24 | 470 | 0.2 | 415.6 | 0.695 | 113 | 4.91 | 5.9 | 4 | 355 |
| 5840-31ZY-31X | 24 | 260 | 0.2 | 232 | 0.59 | 1.53 | 3.71 | 12.8 | 4 | 355 |
| 5840-31ZV-49X | 24 | 160 | 02 | 144.1 | 0652 | 25 | 3.77 | 16.33 | 4 | 355 |
| 5840-31ZY-100X | 24 | 80 | 02 | 74 | 0643 | 448 | 3.47 | 29 | 4 | 355 |
| 5840-31ZY-200X | 24 | 40 | 0.2 | 34 | 0.643 | 9.66 | 3.44 | 53.47 | 4 | 355 |
| 5840-31ZY-290X | 24 | 27 | 0.2 | 25 | 0.697 | 13.42 | 3.52 | 65.68 | 4 | 355 |
| 5840-31ZY-500X | 24 | 16 | 02 | 15 | 0.634 | 2366 | 3.74 | Ban stall | 355 | |
| 5840-31ZY-670X | 24 | 12 | 0.2 | 11.1 | 0.612 | 2659 | 3.09 | 355 | ||
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor
4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
