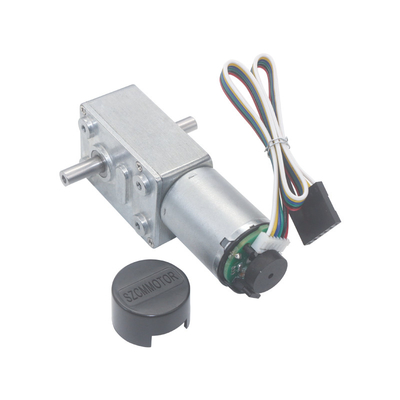

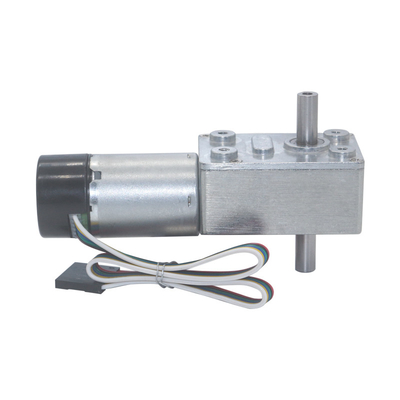

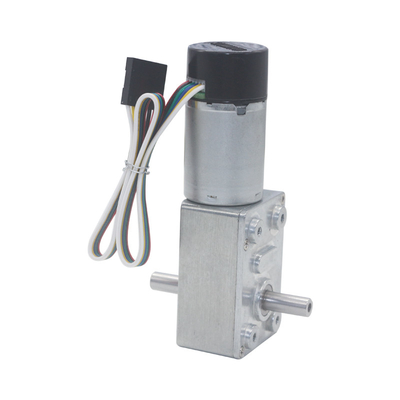

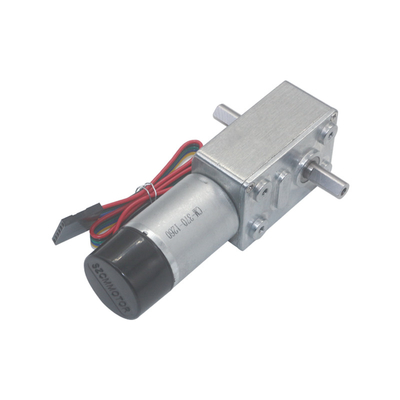

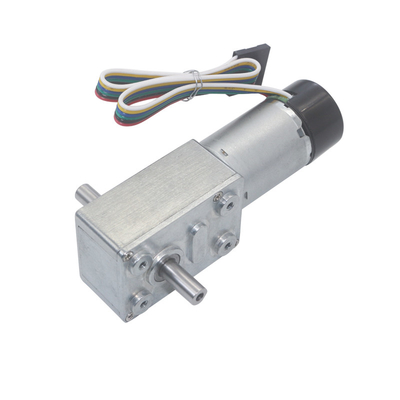

Micro DC Electric Double Shaft Worm Geared Motor 6V 12V 24V 6-150RPM

Description
Speed(rpm): 6-150rpm Type: Worm Gear Motor With Encoder
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 6V/12V/24V
No Load Speed: 6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/66rpm/90rpm/150rpm Direction Of Rotation Of The Motor:: CW Or CCW, Support Reversed
Function: The Motor Has A Self-locking Function Shaft Shape: D Shape
High Light:

150RPM Worm Geared Motor

,

Dual Shaft Encoder Worm Geared Motor

,

24V DC Worm Gear Motors



Micro DC Worm Gear Motor With Encoder 6V 12V 24V Reversible Adjustable Speed Power-Off Self-Locking Dustproof With Back Cover



Introduction of the motor

1. Name of the motor: Biaxial DC Worm Gear Motor 12V With Encoder In DC Motor 6V 24V

2. Rated voltage have DC 6V, DC 12V and DC 24V

3. DC 6V ; You can choose the no load speed have :
6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/66rpm/90rpm/150rpm

Rated torque between 0.2 To 26.5 KG.CM; stall torque: between 0.9-45KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 6V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

4. DC 12V ; You can choose the no load speed have : 6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/66rpm/90rpm/150rpm

Rated torque between 0.2 To 26.5 KG.CM; stall torque: between 0.9-45KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

5. DC 24V ; You can choose the no load speed have :
6rpm/10rpm/18rpm/23rpm/30rpm/40rpm/66rpm/90rpm/150rpm

Rated torque between 0.2 To 26.5 KG.CM; stall torque: between 0.9-45KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

6. Direction of rotation of the motor: CW Or CCW, Support Reversed;
Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected

7. The motor has a self-locking function ;
After disconnect the power supply, the shaft can be securely locked, can not easy to move by other force. When your project is not connected to the power, you can make your project safely stay somewhere. It can be used for some special purpose.Such as Anti-theft sliding doors.

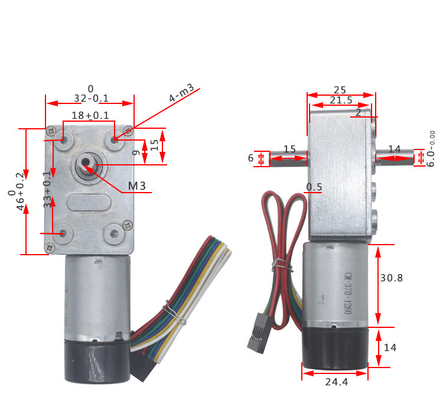

8. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.

9. Gear material: Metal gears make the motor last longer

10. The speed of the motor can be adjusted using the speed controller.

11. The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.

When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.

12. Motor DC power connection is safe; the experiment proves that the motor voltage is lower than 36V without any danger.

13. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Electric curtains ; Billboard motors ; Household appliances etc.



Specification:

  • Voltage: DC6V, DC12V, DC24V

  • No-Load Speed: 6rpm, 10rpm, 18rpm, 23rpm, 30rpm, 40rpm, 90rpm, 150rpm

  • Error: ±10%

  • Output Shaft Diameter: 6mm D-type

  • Output Shaft Length: 14mm

  • Gearbox Size:46*32*25mm

  •

Wirings:

Red Wire - positive power supply of motor(+)

Black Wire - negative power supply of motor(-)

Green Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;

Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong,(5-12v)

Yellow Wire - signal feedback (11 signals per motor turns a circle)

White Wire - signal feedback (11 signals per motor turns a circle)



The following is the connection introduction of the encoder

① Red line: the positive pole of the motor is connected to the positive pole of the power supply +

② Black wire: the negative pole of the motor is connected to the negative pole of the power supply -

③ Green line: Connect sensor ground wire - (5-12V)

④ Blue line: connect sensor power + (5-12V)

⑤Yellow line: signal A output point (11 pulses)

⑥ White line: signal B output point (11 pulses)



Datasheet :



Type Model:JGY-370S Parameter
Voltage No Load Load Torque Stall Reducer
Rated Speed Current Speed Current Torque Output Torque Current Ratio size
Volt.V rpm mA rpm mA kg.cm W kg.cm A 1:00 mm
660 6V 160 60 128 300 0.2 2 3 2 37.3 46
6V 100 60 80 300 0.5 2 6 2 60 46
6V 40 60 32 270 0.8 2 15 2 150 46
6V 24 60 19 270 2 2 20 2 250 46
6V 19 60 15 270 4.5 2 30 2 324 46
6V 10 60 8 260 6.7 2 60 2 600 46
6V 6 60 5 260 9 2 ban 2 972 46
6V 4 60 3 260 15.9 2 ban 2 1700 46
6V 2 60 2 260 30 2 ban 2 2900 46
1260 12V 160 45 128 270 0.74 1.7 4 1.7 37.3 46
12V 100 45 80 270 1 1.7 7 1.7 60 46
12V 40 45 32 230 2.2 1.7 11 1.7 150 46
12V 24 45 19 230 3.7 1.7 18 1.7 250 46
12V 19 45 15 230 4.8 1.7 24 1.7 324 46
12V 10 45 8 230 9 1.7 ban 1.7 600 46
12V 6 45 5 220 14 1.7 ban 1.7 972 46
12V 4 45 3 200 25 1.7 ban 1.7 1700 46
12V 2 45 2 200 43 1.7 ban 1.7 2900 46
2460 24v 160 26 128 180 0.4 1.5 2 1 37.3 46
24v 100 26 80 180 0.8 1.5 4 1 60 46
24v 40 26 32 180 1.8 1.5 9 1 150 46
24v 24 26 19 180 3 1.5 15 1 250 46
24v 19 26 15 180 3.8 1.5 19 1 324 46
24v 10 26 8 180 7 1.5 35 1 600 46
24v 6 26 5 180 11 1.5 ban 1 972 46
24v 4 26 3 180 20 1.5 ban 1 1700 46
24v 2 26 2 180 40 1.5 ban 1 2900 46



The following is a description of the quality materials and structures of this motor.

1. The worm gear is made of copper

2. Imported lubricants used

3. Use all metal gears

4. The gearbox is made of aluminum alloy

5. The encoder has two Hall elements bi-phase AB output, the basic signal 11PPR

6. Pure copper coil, high temperature resistance, super conductive, life is 10 times that of Inferior motor

7. High quality carbon brush, wear-resistant, prolongs the service life of the motor

8. high quality magnet, complete and does not change the magnetic field, so that the performance is the motor is better, and the rotor does not get stuck

9. D-axis

10. The encoder has a protective cover to prevent the encoder from being damaged and preventing water droplets from splashing onto the encoder
