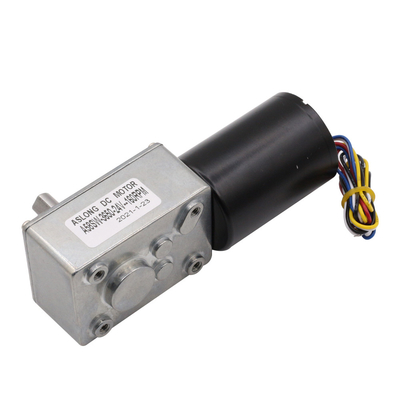

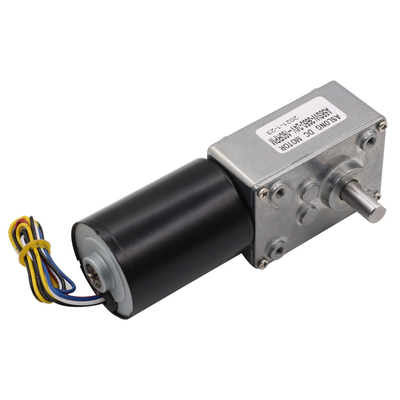

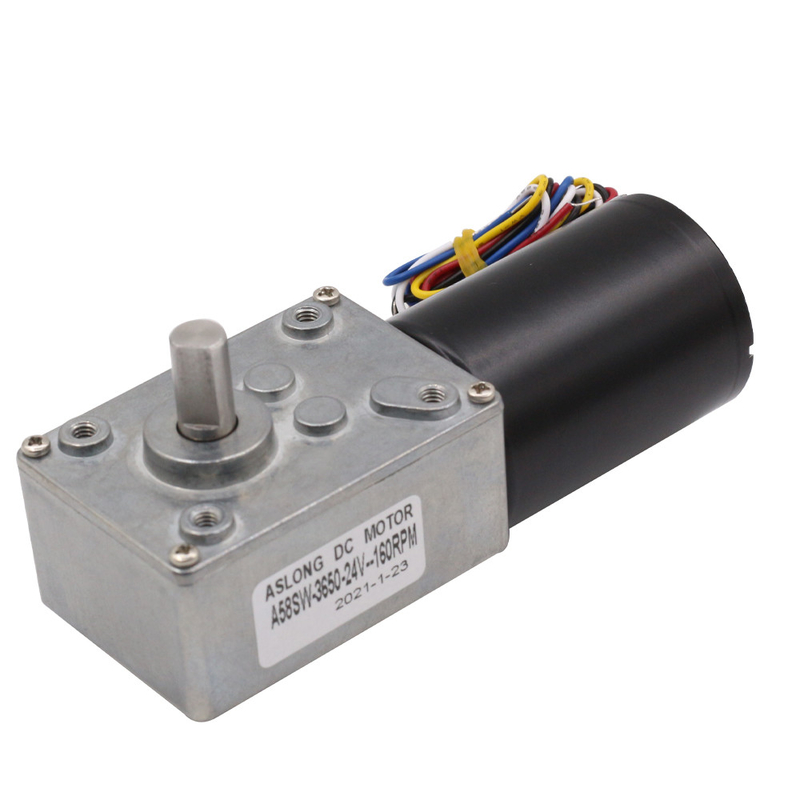

High Torque Brushless 12 volt geared dc motor A5840 Self Locking

High Torque Brushless 12 volt geared dc motor A5840 Self Locking
High Torque Brushless 12 volt geared dc motor A5840 Self Locking
High Torque Brushless 12 volt geared dc motor A5840 Self Locking High Torque Brushless 12 volt geared dc motor A5840 Self Locking High Torque Brushless 12 volt geared dc motor A5840 Self Locking High Torque Brushless 12 volt geared dc motor A5840 Self Locking

Large Image :  High Torque Brushless 12 volt geared dc motor A5840 Self Locking

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh,CE
Model Number: 5840-3650
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

High Torque Brushless 12 volt geared dc motor A5840 Self Locking

Description
Usage: For Robot Smart Car Commutation: Brushed
Speed(rpm): 12-470rpm Type: Worm Gear Motor With Encoder
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 12V/24V
High Light:

470rpm Geared Dc Motor

,

A5840 Geared Dc Motor

,

A5840 DC Worm Gear Motors

High Torque Brushless 12 Volt Geared Dc Motor A5840 Self Locking



12v High torque Brushless dc worm gear motor A5840 square worm gear elctric motor With hall sensor feedbac A58SW-3650



Specification:

  • ① The name of the motor: DC Worm Geared Motor With Encoder

    ② The voltage you can choose for this motor is DC 12V And DC 24V

    ③ After you select the voltage of the motor, you can choose one of the following speeds to purchase. The following speeds refer to the no-load speed of the motor, not the load speed;

    For example, 12RPM means that the motor rotates 12 times per minute without load.

    DC 12V ; You can choose the no load speed have :
    12rpm/27rpm/40rpm/80rpm/160rpm/260rpm/470rpm

    DC 24V ; You can choose the no load speed have :
    16rpm/27rpm/40rpm/80rpm/160rpm/260rpm/470rpm
  •
  •

Wirings:

Red Wire - positive power supply of motor(+)

Black Wire - negative power supply of motor(-)

Green Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;

Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong,(5-12v)

Yellow Wire - signal feedback (11 signals per motor turns a circle)

White Wire - signal feedback (11 signals per motor turns a circle)



High Torque Brushless 12 volt geared dc motor A5840 Self Locking 0





A58SW-555B DATASHEET

Voltage

No Load

Load Torque

Stall

Reducer

Workable Rated Speed Current Speed Current Torque Output Torque Current Ratio (L)S Weight
Range Volt.V rpm A rpm A kg.cm W kg.cm A 1:00 mm 约g
12-24V 24V 470 0.4 400 2 5.5 28 17 7 17 58 450
12-24V 24V 260 0.4 220 2 10 28 31 7 31 58 450
12-24V 24V 160 0.4 135 2 15 28 50 7 50 58 450
12-24V 24V 80 0.4 68 2 28 28
BAN
7 100 58 450
12-24V 24V 40 0.4 32 2 40 28 4 200 58 450
12-24V 24V 27 0.4 23 2 50 28 7 290 58 450
12-24V 24V 16 0.4 13.5 2 60 28 7 505 58 465
12-24V 24V 12 0.4 10 2 60 28 7 670 59 450
6-12V 12V 470 0.5 400 2 5.5 30 17 7.2 17 58 450
6-12V 12V 260 0.5 220 2 10 30 31 7.2 31 58 450
6-12V 24V 160 0.5 135 2 15 30 50 7.2 50 58 450
6-12V 24V 80 0.5 68 2 28 30
BAN
7.2 100 58 450
6-12V 24V 27 0.5 23 2 50 30 7.2 290 58 450
6-12V 24V 16 0.5 13.5 2 60 30 7.2 505 58 465
6-12V 24 12 0.5 10 2 60 30 7.2 670 59 465
