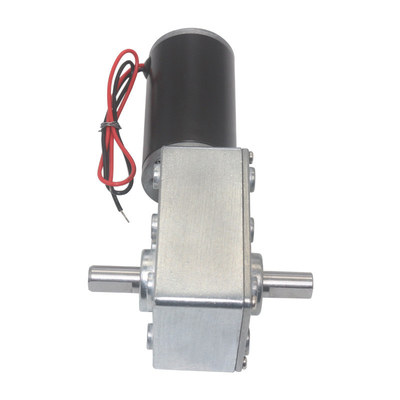

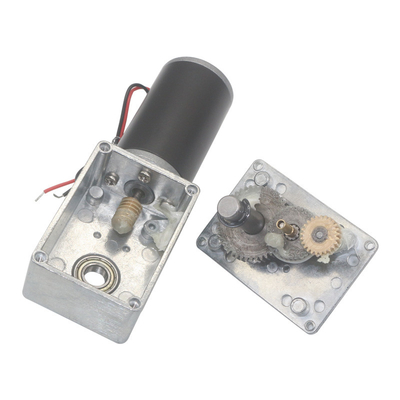

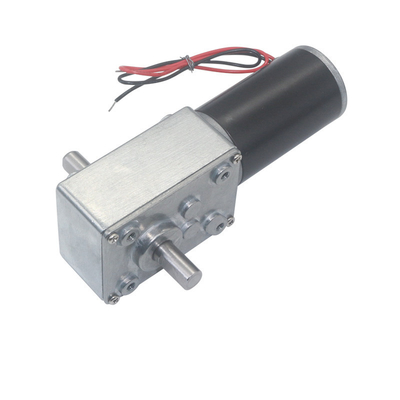

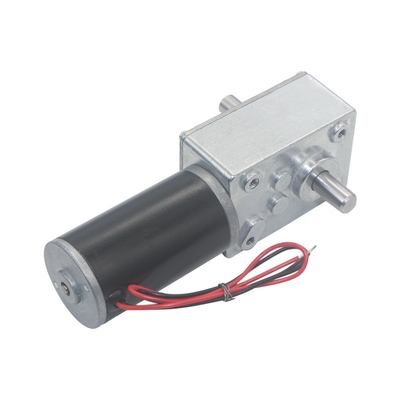

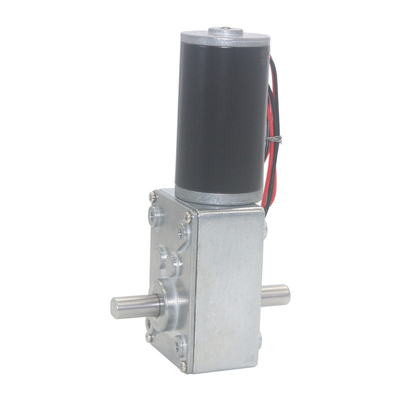

Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY

Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY
Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY

Large Image :  Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: CE
Model Number: A58SW31ZYS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: bubble + carton
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per days

Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY

Description
Home Improvement: DC WORM GEAR MOTOR Usage: Home Applicance
Certification: CE Commutation: Brush
Motor Type: Low Noise Tubular Dc Motor With Worm Gearbox Reducer Gear Arrangement: RIGHT ANGLE GEAR BOX REDUCER

A58sw31zyS high torque low noise worm gear motor

Description:

1.Standard Operating Conditions

1-1 Rated Voltage:6v 12v 24v.

1-2 Direction of Rotation:CW when viewed from output shaft side

1-3Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.

1-4Storage Temperature:Temperature range of -20C~+60C

2.Measuring Conditions:

2-1Motor Position:To be place t horizontally when measuring

2-2Power Supply: Regulated DC power supply

--No load speed:4-115rpm.

--Robotics, Small Appliance, Fanner, Electric Curtain;

--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device

--Electric motor,low noise,low current and no spark.

Ratio:1/37.3,1:65/,1:90/1/150,1/200,1/260,1/324,1/600,1/972/1:1800 1:2900

Motor Engine :  12V 8000R 24V8000R 5000rom 3500rpm



Remark:Pls confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering,we will random send one for this type,hope your kindly understanding.
Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY 0

* worm gear motor Technical datasheet:

  A58SW31ZY  Parameter

No Load

Load Torque

Atall

Reducer
Model Workable Rated Speed Current Speed Current Torque Output Torque Current Ratio (L)S
Eange Volt.V rpm MA rpm A kg.cm W kg.cm A 1:00 mm
1280 6V-12V 12V 471 320 353 1.1 1.12 4.5 6.272 6.56 17 58
6V-12V 12V 258 320 194 1.13 1.52 4.3 8.512 6.56 31 58
6V-12V 12V 160 320 120 1.14 2.56 4.2 14.336 6.56 50 58
6V-12V 12V 80 320 60 1.12 4.05 4.3 22.68 6.56 100 58
6V-12V 12V 40 320 30 1.13 9.85 4.2 55.16 6.56 200 58
6V-12V 12V 28 320 21 1.13 12.86 3.8 ban 6.56 290 58
6V-12V 12V 16 320 12 1.14 20.98 3.6 6.56 500 58
6V-12V 12V 12 320 9 1.09 31.86 3.2 6.56 670 58
2480 12V-24V 24V 471 280 353 0.742 1.35 5.2 5.8725 4.2 17 58
12V-24V 24V 258 280 194 0.714 1.45 4.3 6.3075 4.2 31 58
12V-24V 24V 160 280 120 0.686 2.75 4.3 11.9625 4.2 50 58
12V-24V 24V 80 280 60 0.658 4.85 4.3 21.0975 4.2 100 58
12V-24V 24V 40 280 30 0.672 10.12 3.85 44.022 4.2 200 58
12V-24V 24V 28 280 21 0.6874 12.96 3.58 ban 4.2 290 58
12V-24V 24V 16 280 12 0.6944 23.68 3.31 4.2 500 58
12V-24V 24V 12 280 9 0.7224 26.85 3.23 4.2 670 58
2450 12V-24V 24V 295 100 221 0.456 0.68 1.45 2.958 1.8 17 58
12V-24V 24V 161 100 121 0.358 1.78 2.32 7.743 1.8 31 58
12V-24V 24V 100 100 75 0.402 2.65 2.18 11.5275 1.8 50 58
12V-24V 24V 50 100 38 0.412 5.86 2.85 25.491 1.8 100 58
12V-24V 24V 25 100 19 0.385 12.86 2.05 55.941 1.8 200 58
12V-24V 24V 17 100 13 0.426 13.82 2.22 60.117 1.8 290 58
12V-24V 24V 10 100 8 0.416 24.2 2.52 105.27 1.8 500 58
12V-24V 24V 7 100 6 0.416 29.85 2.32 129.8475 1.8 670 58
2435 12V-24V 24V 206 90 154 0.242 0.42 0.56 1.827 0.76 17 58
12V-24V 24V 113 90 85 0.238 0.68 0.72 2.958 0.76 31 58
12V-24V 24V 70 90 53 0.236 2.28 1.35 9.918 0.76 50 58
12V-24V 24V 35 90 26 0.247 5.65 1.68 14.98 0.76 100 58
12V-24V 24V 18 90 13 0.225 9.56 1.59 28.59 0.76 200 58
12V-24V 24V 12 90 9 0.218 10.98 1.25 ban 0.76 290 58
12V-24V 24V 7 90 5 0.256 15.83 0.68 0.76 500 58
12V-24V 24V 5 90 4 0.245 19.25 0.76 0.76 670 58



  Dia 8mm D Type Dual Shaft With A5840 Square Worm Gearbox Reducer 12v Tubular Dc Motor 24v Dc Worm Geared Motor A58SW31ZY 1
