Product Details:
|
| Home Improvement: | Dc Gear Motor | Usage: | Home Appliance |
|---|---|---|---|
| Electrical Equipment: | Mini Dc Gear Motor | Voltage: | 24v 12v |
| Protect Feature: | Totally Enclosed | Construction: | Peimanent Magnet |
| Gearing Arrangement: | Worm Gear Box Reducer | Speed Reducer: | 90D Right Angle Gearbox Reducer |
| Driver: | Inner Driver Worm Gear Motor | ||
| High Light: | 2838 DC Worm Gear Motors,2838 DC Worm Gear Motors 12V,12V 2838 brushless motor |
||

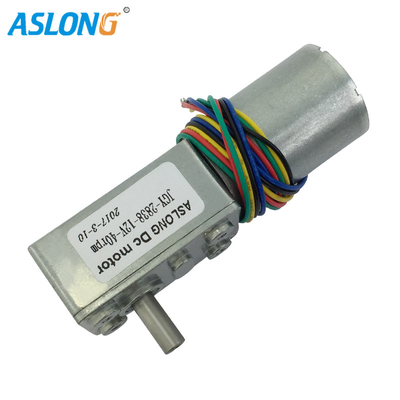

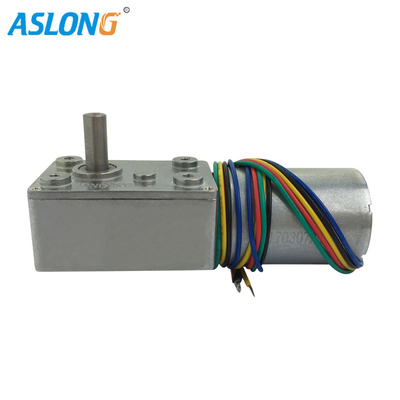

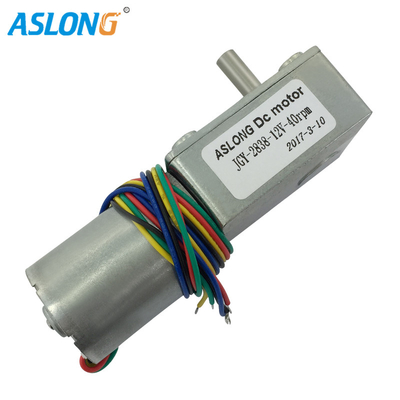

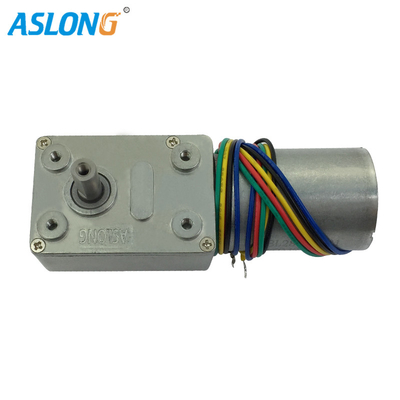

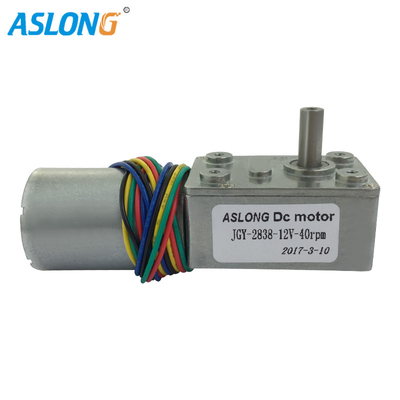

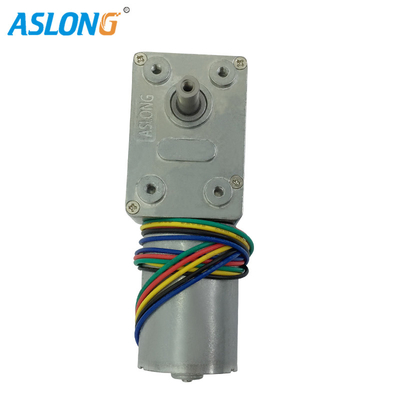

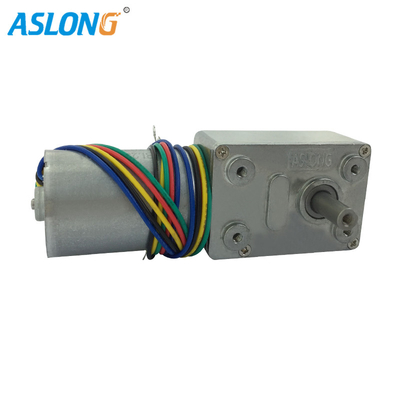

Mircro Brushless DC Worm Gear Motors 12V Dc Right Angle Gear Motor With Hall Sensor
12v Brushless Dc worm gear motor
1. 2838 brushless motor Standard Operating Conditions
1-1 Rated Voltage: 12v 24v.
1-2 Direction of Rotation:CW when viewed from output shaft side
1-3 Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-4 Storage Temperature:Temperature range of -20C~+60C
2. Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
--No load speed:2-160rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
Ratio: 1:37.3 1:65 1:150 1:192 1:262 1:340 1:600 1:972 1:1800 1:2900
- brushless dc motor 6000rpm
Remark:Pls confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering,we will random send one for this type,hope your kindly understanding.
Datasheet:
| Type | Model:JGY-2430 | datasheet | |||||||||||
Voltage |
No Load | Load Torque |
Stall |
Reducer |
weight |
||||||||
| Workable | Rated | Speed | Current | Speed | Current | Torque | Output | Torque | Current | Ratio | size | unit | |
| Range | Volt.V | rpm | mA | rpm | mA | kg.cm | W | kg.cm | A | 1:00 | mm | 约g | |
| 1260 | 6-12V | 12V | 160 | 100 | 128 | 270 | 1 | 1.7 | 4 | 1.7 | 37.3 | 46 | 162 |
| 6-12V | 12V | 92 | 100 | 74 | 270 | 2.5 | 1.7 | 9 | 1.7 | 65 | 46 | 162 | |
| 6-12V | 12V | 40 | 100 | 32 | 230 | 3.5 | 1.7 | 12 | 1.7 | 150 | 46 | 162 | |
| 6-12V | 12V | 31 | 100 | 25 | 230 | 4.5 | 1.7 | 16 | 1.7 | 192 | 46 | 162 | |
| 6-12V | 12V | 23 | 100 | 18 | 230 | 5.3 | 1.7 | 19 | 1.7 | 262 | 46 | 162 | |
| 6-12V | 12V | 18 | 100 | 14 | 230 | 6.5 | 1.7 | 23 | 1.7 | 340 | 46 | 162 | |
| 6-12V | 12V | 10 | 100 | 8 | 230 | 8.5 | 1.7 | ban |
1.7 | 600 | 46 | 162 | |
| 6-12V | 12V | 6 | 100 | 5 | 220 | 14 | 1.7 | 1.7 | 972 | 46 | 162 | ||
| 6-12V | 12V | 3 | 100 | 3 | 200 | 25 | 1.7 | 1.7 | 1800 | 46 | 162 | ||
| 6-12V | 12V | 2 | 100 | 2 | 200 | 43 | 1.7 | 1.7 | 2900 | 46 | 162 | ||
| 2460 | 12-24v | 24v | 160 | 80 | 128 | 180 | 0.89 | 1.5 | 3 | 1.2 | 37.3 | 46 | 162 |
| 12-24v | 24v | 92 | 80 | 74 | 180 | 2.35 | 1.5 | 8 | 1.2 | 65 | 46 | 162 | |
| 12-24v | 24v | 40 | 80 | 32 | 180 | 3.25 | 1.5 | 11 | 1.2 | 150 | 46 | 162 | |
| 12-24v | 24v | 31 | 80 | 25 | 180 | 4.3 | 1.5 | 15 | 1.2 | 192 | 46 | 162 | |
| 12-24v | 24v | 23 | 80 | 18 | 180 | 5 | 1.5 | 18 | 1.2 | 262 | 46 | 162 | |
| 12-24v | 24v | 18 | 80 | 14 | 180 | 6.23 | 1.5 | 22 | 1.2 | 340 | 46 | 162 | |
| 12-24v | 24v | 10 | 80 | 8 | 180 | 7.98 | 1.5 | ban |
1.2 | 600 | 46 | 162 | |
| 12-24v | 24v | 6 | 80 | 5 | 180 | 11 | 1.5 | 1.2 | 972 | 46 | 162 | ||
| 12-24v | 24v | 3 | 80 | 3 | 180 | 20 | 1.5 | 1.2 | 1800 | 46 | 162 | ||
| 12-24v | 24v | 2 | 80 | 2 | 180 | 40 | 1.5 | 1.2 | 2900 | 46 | 162 | ||
Drawing:
Conection information
