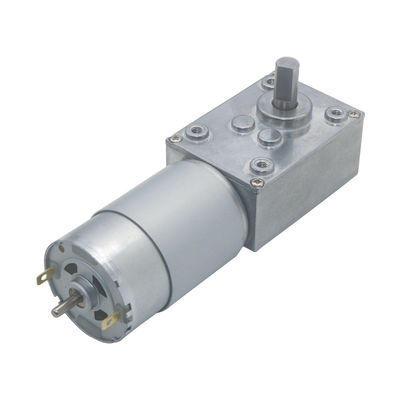

58mm*40mm pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm

58mm*40mm pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm
58mm*40mm pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm 58mm*40mm pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm 58mm*40mm pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm 58mm*40mm pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm

Large Image :  58mm*40mm pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh,CE
Model Number: 5840-555B
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

58mm*40mm pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm

Description
Usage: For Robot Smart Car Commutation: Brushed
Speed(rpm): 12-470rpm,40rpm Type: Worm Gear Motor Low Speed
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 12V/24V
High Light:

12V 24V DC Worm Gear Motors

,

40rpm DC Worm Gear Motors

,

40rpm gear worm motor

58mm*40mm Pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm



58mm*40mm Gearbox Reducer High Torque 70kg.cm 12V 24V Worm Gear Motor High Power ​



Specification:

  • ① The name of the motor: DC Worm Geared Motor With Encoder

    ② The voltage you can choose for this motor is DC 12V And DC 24V

    ③ After you select the voltage of the motor, you can choose one of the following speeds to purchase. The following speeds refer to the no-load speed of the motor, not the load speed;

    For example, 12RPM means that the motor rotates 12 times per minute without load.

    DC 12V ; You can choose the no load speed have :
    12rpm/27rpm/40rpm/80rpm/160rpm/260rpm/470rpm

    DC 24V ; You can choose the no load speed have :
    16rpm/27rpm/40rpm/80rpm/160rpm/260rpm/470rpm
  •

Wirings:

Red Wire - positive power supply of motor(+)

Black Wire - negative power supply of motor(-)

Green Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;

Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong,(5-12v)

Yellow Wire - signal feedback (11 signals per motor turns a circle)

White Wire - signal feedback (11 signals per motor turns a circle)





58mm*40mm pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm 0





58mm*40mm pmdc DC Worm Gear Motors High Torque 12V 24V 40rpm 1





Rated DC12V testing parameter table

Reduction ratio 17 31 50 100 200 290 500
No load speed rpm 470 260 160 80 40 27 12
Rated torque kg.cm 2.5 4.5 7.3 14.5 29.0 42 60.0
Rated speed rpm 380 200 130 60 30 20 12
Rated current A 1.2 1.2 1.2 1.2 1.2 1.2 1.2
Max torque ka .cm 4.3 8 12.5 25.0 51.0 70 70.0
Rated DC24V testing parameter table
Reduction ratio 17 31 50 100 200 290 500
No load speed rpm 470 260 160 80 40 27 12
Rated torque kg.cm 8.0 9.5 15.0 30.0 40.0 50.0 60.0
Rated speed rpm 380 200 130 60 30 20 12
Rated current A 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Max torque kg.cm 17.0 31 50.0 50.0 70.0 70.0 70.0
