Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm

Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm
Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm
Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm

Large Image :  Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh,CE
Model Number: A5882-45
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm

Description
Usage: For Robot Smart Car Commutation: Brushed
Speed(rpm): 11-195rpm Type: Hight TorqueWorm Gear Motor
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 24V
High Light:

195rpm DC Worm Gear Motors

,

A5882-45 DC Worm Gear Motors

,

195rpm worm gear motor 24v

Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm

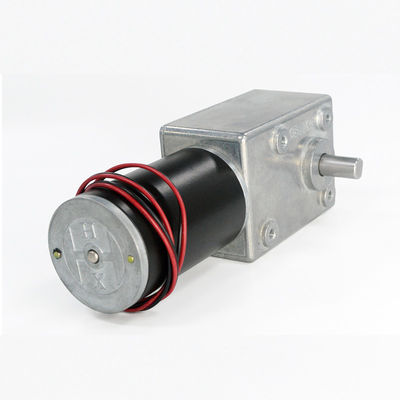

A5882-45 Worm Gear Motor DC Carbon Brush 24V High Torque Low Speed Self-locking Motor



Specifications:

  • Voltage range: 0-24V

  • Rated voltage: 24V

  • No-load current: 0.19A

  • Stall current: 2.477 A

  • Stall torque: 9.859 N.m

  • Weight:1kg

  •

Carbon Brush DC Worm Gear Motors 24V High Torque Self Locking 195rpm 0

A5885-45 Parameter
Gear
Ratio
1:00
  No-loading Rated loading Stall
Rated
volt
Speed Current Speed Current torque Power
dc motor
Torque Current
v Rpm mA Rpm A KG.CM w KG.CM A
30 24 200 0.27 170 2.5 20 50 75 12
50 24 120 0.27 102 2.4 32 50 120 12
176 24 34 0.27 29 2.4 85 50 200 12
250 24 24 0.3 20 2.4 100 50 280 12
545 24 11 0.27 9 2.5 120 50 ban 12
