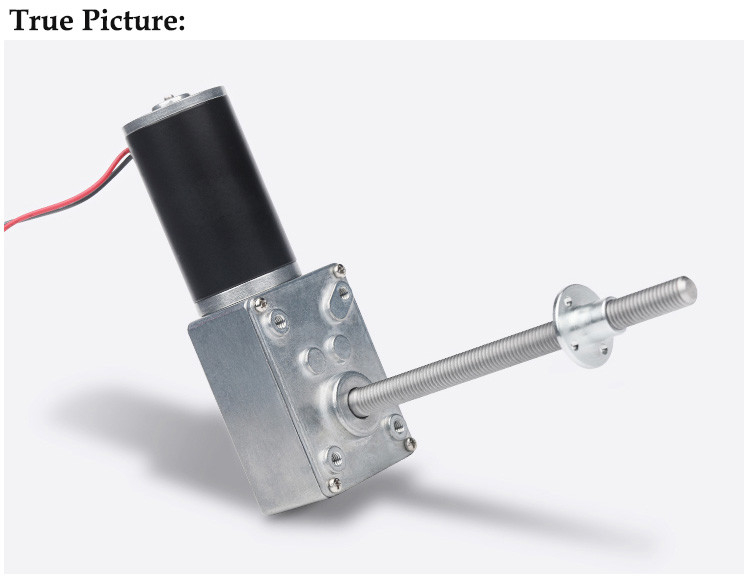

115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder

115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder

Large Image :  115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh,CE
Model Number: 5840-31ZYC
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder

Description
Usage: For Robot Smart Car Commutation: Brushed
Speed(rpm): 12-470rpm Type: Worm Gear Motor With Encoder
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 12V/24V
High Light:

115mm DC Worm Gear Motors

,

470rpm DC Worm Gear Motors

,

470rpm micro worm gear motor

115mm Brushed 12 Volt DC Worm Gear Motors 470rpm With Encoder​

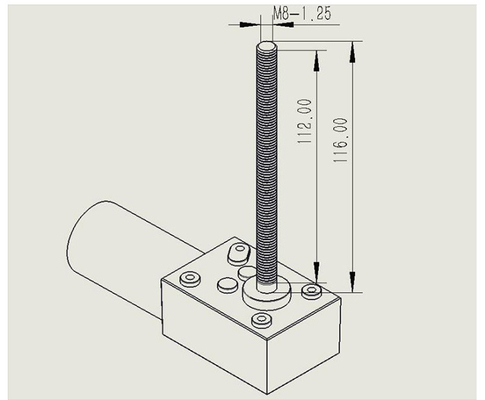

Worm Gear Motor With 115mm Length 8mm Diameter Screw Lead Shaft And Flange Low Speed Max 7N.M



Specification:
  • Voltage: DC12V

No-load Speed: 470rpm,260rpm,160rpm,80rpm,40rpm,27rpm,16rpm,12rpm

  • Voltage: DC24V

No-load Speed: 470rpm,260rpm,160rpm,80rpm,40rpm,27rpm,16rpm,12rpm,10rpm,7rpm

  • Error: ±5%
  • 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 0
  • Datasheet:





1280 No load Rated Stall Weight
Rated voltaqe Speed Current Speed Current Torque Power Torque Current
V RPM A RPM A KG.CM W KG.CM A g
5840-31ZY-17X 12 470 0.3 405 1 0.95 4.03 53 65 355
5840-31ZY-31X 12 260 0.3 225.9 1.129 1.49 3.52 10.42 6.5 355
5840-31ZY-49X 12 160 0.3 139.9 1.101 2.33 3.41 13.61 6.5 355
5840-31ZY-100X 12 80 0.3 71.9 1.155 394 2.96 25.59 6.5 355
5840-31ZY-200X 12 40 0.3 378 1.031 1031 4.08 47.2 65 355
5840-31ZY-290X 12 27 0.3 229 1.117 1326 3.17 65.74 6.5 355
5840-31ZY-500X 12 16 0.3 14.4 1.106 20.62 2.6 Ban stall 355
5840-31ZY-670X 12 12 0.3 106 1.088 3057 309 355
2480 No load Rated Stall Weight
Rated voltaqe Speed Current Speed Current Torque Power Torque Current
V RPM A RPM A KG CM w KGCM A g
5840-31ZY-17X 24 470 0.2 415.6 0.695 113 4.91 5.9 4 355
5840-31ZY-31X 24 260 0.2 232 0.59 1.53 3.71 12.8 4 355
5840-31ZV-49X 24 160 02 144.1 0652 25 3.77 16.33 4 355
5840-31ZY-100X 24 80 02 74 0643 448 3.47 29 4 355
5840-31ZY-200X 24 40 0.2 34 0.643 9.66 3.44 53.47 4 355
5840-31ZY-290X 24 27 0.2 25 0.697 13.42 3.52 65.68 4 355
5840-31ZY-500X 24 16 02 15 0.634 2366 3.74 Ban stall 355
5840-31ZY-670X 24 12 0.2 11.1 0.612 2659 3.09 355
