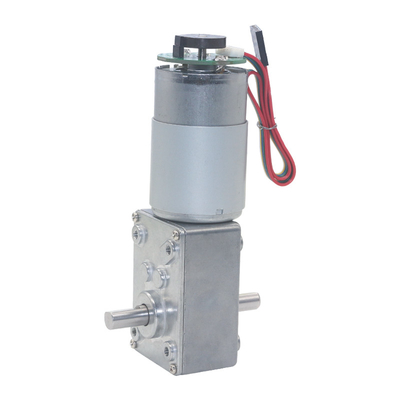

Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm

Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm
Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm

Large Image :  Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: Rosh,CE
Model Number: 5840-555SB
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm

Description
Usage: For Robot Smart Car Commutation: Brushed
Speed(rpm): 12-470rpm Type: Worm Gear Motor With Encoder
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 12V/24V
High Light:

12rpm High Torque Worm Gear Motor

,

ODM High Torque Worm Gear Motor

,

12rpm mini worm gear motor

Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm​



Double Shaft Worm Gear Motor With Encoder Disk High Torque 12V Self-Locking 24v



Specification:

  • ① The name of the motor: DC Worm Geared Motor With Encoder

    ② The voltage you can choose for this motor is DC 12V And DC 24V

    ③ After you select the voltage of the motor, you can choose one of the following speeds to purchase. The following speeds refer to the no-load speed of the motor, not the load speed;

    For example, 12RPM means that the motor rotates 12 times per minute without load.

    DC 12V ; You can choose the no load speed have :
    12rpm/27rpm/40rpm/80rpm/160rpm/260rpm/470rpm

    DC 24V ; You can choose the no load speed have :
    16rpm/27rpm/40rpm/80rpm/160rpm/260rpm/470rpm
  •
  •

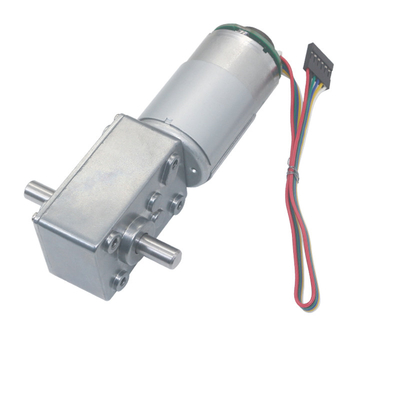

Wirings:

Red Wire - positive power supply of motor(+)

Black Wire - negative power supply of motor(-)

Green Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;

Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong,(5-12v)

Yellow Wire - signal feedback (11 signals per motor turns a circle)

White Wire - signal feedback (11 signals per motor turns a circle)



Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm 0Double Shaft 12V High Torque Worm Gear Motor With Encoder Self Locking 12rpm 1



Datasheet:

Rated DC12V testing parameter table

Reduction ratio 17 31 50 100 200 290 500
No load speed rpm 470 260 160 80 40 27 12
Rated torque kg.cm 2.5 4.5 7.3 14.5 29.0 42 60.0
Rated speed rpm 380 200 130 60 30 20 12
Rated current A 1.2 1.2 1.2 1.2 1.2 1.2 1.2
Max torque ka .cm 4.3 8 12.5 25.0 51.0 70 70.0
Rated DC24V testing parameter table
Reduction ratio 17 31 50 100 200 290 500
No load speed rpm 470 260 160 80 40 27 12
Rated torque kg.cm 8.0 9.5 15.0 30.0 40.0 50.0 60.0
Rated speed rpm 380 200 130 60 30 20 12
Rated current A 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Max torque kg.cm 17.0 31 50.0 50.0 70.0 70.0 70.0
