Product Details:
|
| Usage: | For Robot Smart Car | Commutation: | Brushed |
|---|---|---|---|
| Speed(rpm): | 12-470rpm | Type: | Worm Gear Motor With Encoder |
| Efficiency: | IE 1 | Construction: | Permanent Magnet |
| Material: | Stainless Steel | Voltage: | 12V/24V |
| Highlight: | 30W DC Worm Geared Motor,470rpm DC Worm Geared Motor,30W High Torque 12V Motors |
||

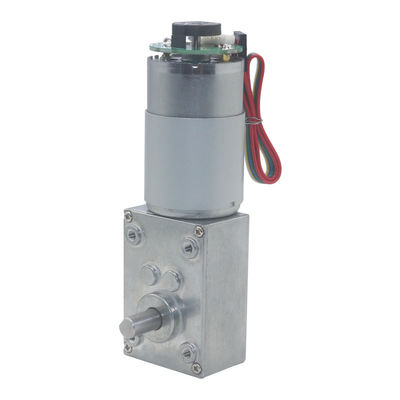

Encoder 30W DC Worm Geared Motor High Torque 12V Motors Self Locking
30W DC Worm Geared Motor Encoder 24V 12V High Torque Electric 12-470RPM Self Locking Adjustable Speed
| Worm gearbox Micro Dc Gear Motor Description: |
Now ,you can get our this worm gearbox dc gear motor and other related worm gearbox motors as following:
Specification:
Wirings:
Red Wire - positive power supply of motor(+)
Black Wire - negative power supply of motor(-)
Green Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;
Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong,(5-12v)
Yellow Wire - signal feedback (11 signals per motor turns a circle)
White Wire - signal feedback (11 signals per motor turns a circle)
| A58SW-555B | DATASHEET | |||||||||||
Voltage |
No Load |
Load Torque |
Stall |
Reducer |
||||||||
| Workable | Rated | Speed | Current | Speed | Current | Torque | Output | Torque | Current | Ratio | (L)S | Weight |
| Range | Volt.V | rpm | A | rpm | A | kg.cm | W | kg.cm | A | 1:00 | mm | 约g |
| 12-24V | 24V | 470 | 0.4 | 400 | 2 | 5.5 | 28 | 17 | 7 | 17 | 58 | 450 |
| 12-24V | 24V | 260 | 0.4 | 220 | 2 | 10 | 28 | 31 | 7 | 31 | 58 | 450 |
| 12-24V | 24V | 160 | 0.4 | 135 | 2 | 15 | 28 | 50 | 7 | 50 | 58 | 450 |
| 12-24V | 24V | 80 | 0.4 | 68 | 2 | 28 | 28 | BAN |
7 | 100 | 58 | 450 |
| 12-24V | 24V | 40 | 0.4 | 32 | 2 | 40 | 28 | 4 | 200 | 58 | 450 | |
| 12-24V | 24V | 27 | 0.4 | 23 | 2 | 50 | 28 | 7 | 290 | 58 | 450 | |
| 12-24V | 24V | 16 | 0.4 | 13.5 | 2 | 60 | 28 | 7 | 505 | 58 | 465 | |
| 12-24V | 24V | 12 | 0.4 | 10 | 2 | 60 | 28 | 7 | 670 | 59 | 450 | |
| 6-12V | 12V | 470 | 0.5 | 400 | 2 | 5.5 | 30 | 17 | 7.2 | 17 | 58 | 450 |
| 6-12V | 12V | 260 | 0.5 | 220 | 2 | 10 | 30 | 31 | 7.2 | 31 | 58 | 450 |
| 6-12V | 24V | 160 | 0.5 | 135 | 2 | 15 | 30 | 50 | 7.2 | 50 | 58 | 450 |
| 6-12V | 24V | 80 | 0.5 | 68 | 2 | 28 | 30 | BAN |
7.2 | 100 | 58 | 450 |
| 6-12V | 24V | 27 | 0.5 | 23 | 2 | 50 | 30 | 7.2 | 290 | 58 | 450 | |
| 6-12V | 24V | 16 | 0.5 | 13.5 | 2 | 60 | 30 | 7.2 | 505 | 58 | 465 | |
| 6-12V | 24 | 12 | 0.5 | 10 | 2 | 60 | 30 | 7.2 | 670 | 59 | 465 | |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor
4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
