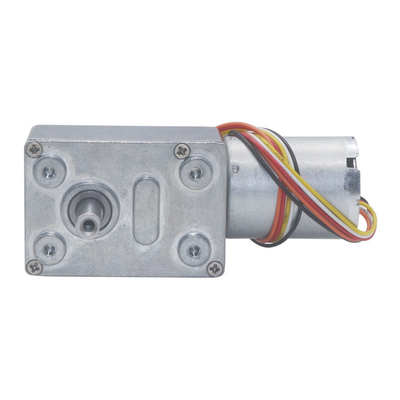

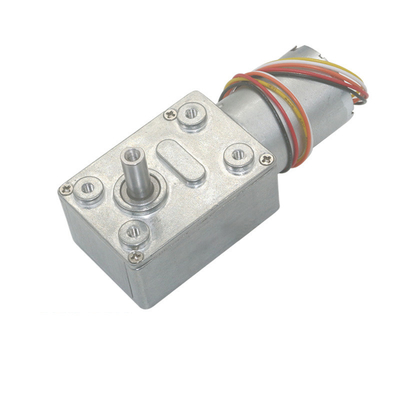

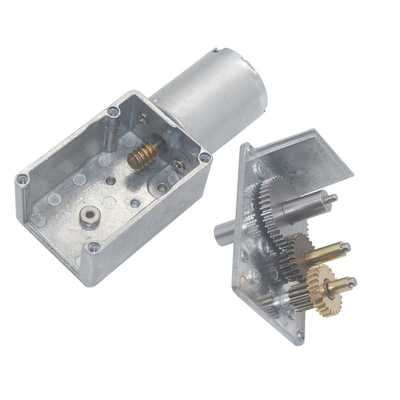

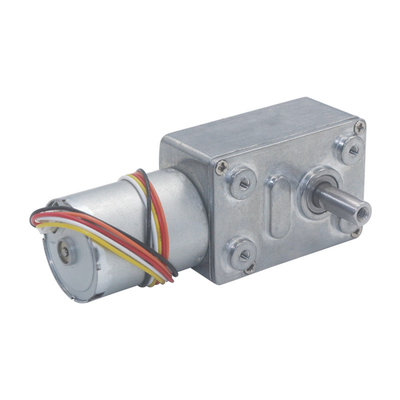

12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder

12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder
12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder 12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder 12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder 12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder

Large Image :  12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: Rosh,CE
Model Number: JGY-2430
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: 144pcs/carton
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder

Description
Usage: For Robot Smart Car Electronic Commutation: Brushless Dc Gear Motor
Speed(rpm): 6-150rpm Type: BLDC Worm Gear Motor With Encoder
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 12V/24V

12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder



Note:
  • Brushless Gearmotors are best suited for applications that require "continuous (constant) operation.
  • Gearmotor performance is highly influenced by the motor's ability to dissipate heat and avoid thermal overload, which can damage internal components and even demagnetize the magnets. Proper sizing and selection are the first step to ensuring that the motor is not at risk of thermal overload within the parameters of the application
Specification:
  • Voltage: DC12V, DC24V
  • No-Load Speed: 6rpm, 10rpm, 18rpm, 23rpm, 30rpm, 40rpm, 100rpm, 150rpm
  • Error: ±10%
  • Output Shaft Diameter: 6mm D-type
  • Output Shaft Length: 14mm
  • Gearbox Size:46*32*25mm
  • Gearbox Size Detal, please see the table

Wirings:

  • Red Wire - positive power supply of motor(+)
  • Black Wire - negative power supply of motor(-)
  • Yellow Wire - FG output

Orange Wire - control CW or CCW of motor(CCW: Orange Wire do not connect. CW: Orange Wire connect negative power supply of motor(-))
White Wire - control speed of motor (by PWM signal control speed)

Note: For it is a blushless motor, the wires can't be connected wrong, or it will be burnt.

CW: Red wire --> positive power supply of motor(+); Black wire and White wire ---> negative power supply of motor(-)

CCW: Red wire --> positive power supply of motor(+); Black wire, White wire and Orange Wire ---> negative power supply of motor(-)



12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder 012V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor with Encoder 1

Rate Volt DC12V JGY370-2430

Reduction ratio 40 65 150 200 260 340 600 1000
No load Current (MA) <130 W130 <130 W130 <130 <130 W130 <130
No load RPM 150 90 40 30 23 18 10 6
Load torque (Kg,cm) 1.5 3 7.0 9.0 12.0 15.0 21.0 25.0
Load RPM 100 70 30 22 17 13 7 4
Load Currern (A) W0.8 W0.8 W0.8 W0.8 W0.8 <0.8 <0.8 W0.8
Max Torque (Kg.cm) 2.5 4.2 10.0 13.0 17.0 22.0 Max 25KG
Stall Current (A) 1.8 1.8 1.8 1.8 1.8 1.8 Fobidden Stall

Rate Volt DC12V JGY370-2430
Reduction ratio 40 65 150 200 260 340 600 1000
No load Current (MA) <80 <80 <80 <80 <80 <80 <80 <80
No load RPM 150 90 40 30 23 18 10 6
Load ©rque (Kg.cm) 20 3.5 8.0 10.0 14.0 17.0 20.0 25.0
Load RPM 100 70 30 22 17 13 7 4
Load Current (A) <1.3 <0.5 <0.5 <0.5 <0.5 <0.5 <0.5 <0.5
Max Torque (Kg.cm) 3.0 4.9 11.5 15.0 20.0 25.0 Max 25KG
Stall Current (A) 1.3 1.3 1.3 1.3 1.3 1.3 Fobidden Stall
