Product Details:
|
Usage: | Home Appliance,Electric Bicycle,Robot | Type: | 42 Mm Diameter Micro Planetary Gear Motor |
---|---|---|---|
Torque: | 0.83N.m | Voltage(v): | 12-24VDC |
Product Name: | Micro DC Planetary Gearbox Motor | Diameter: | 42mm |
Typical Applications: | Electric Toy Model,Curtain | Shaft Diameter: | 6MM |
High Light: | 90rpm Brushless Planetary Gear Motor,12V 24V Planetary Gear Motor,90rpm Brushless Gear Motor |

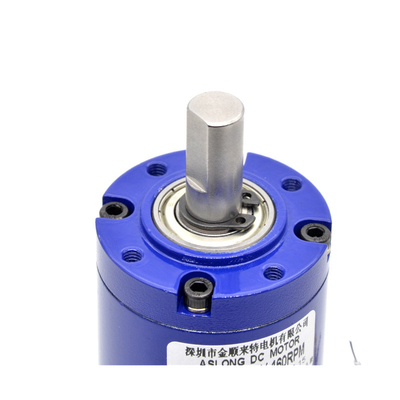

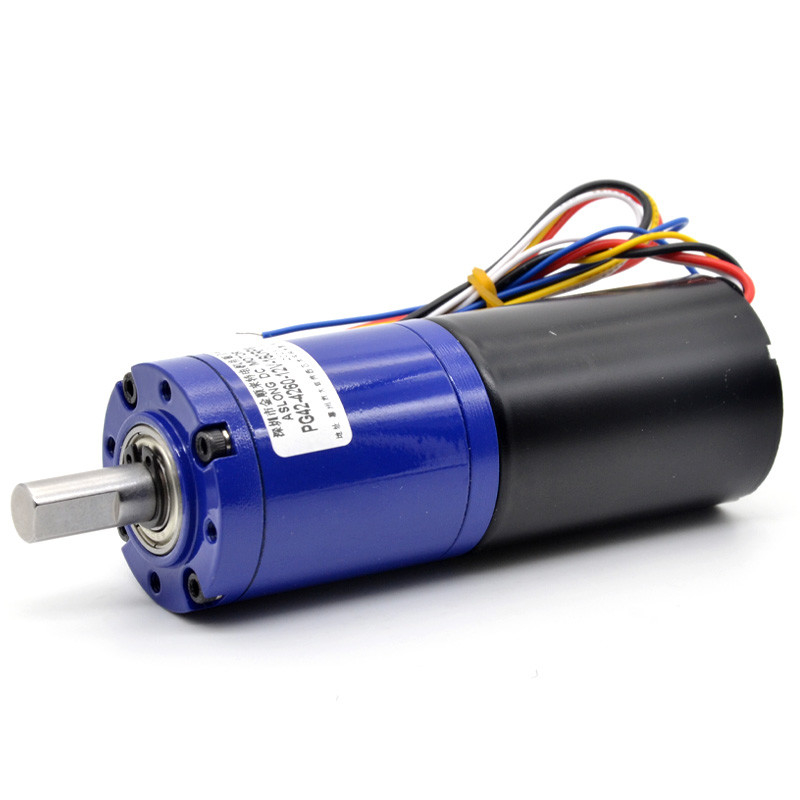

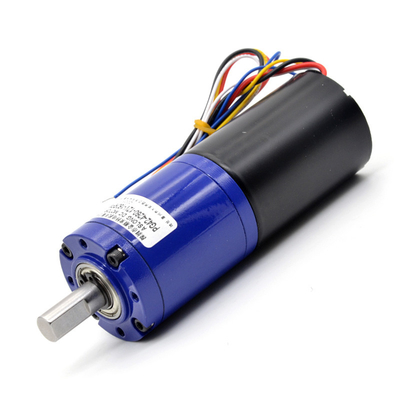

90rpm High Torque Brushless Planetary Gear Motor 12V 24V Low Nosie
High Torque Micro Planetary Brushless Gear Motor Low Nosie Long Life PWM Adjustable Speed
Model Number:PG42-775
Operating Voltage (Operating Vooltage): 12-24V
Reduction ratio: 91
Rated voltage: 24V
24V revolutions per minute: 90rpm
Datesheet:
Workable Voltage | No load | On Load | Stall | Reduction Ratio | ||||||
Rated Voltage | Speed | Current | Speed | Current | Torque | Output | Torque | Current | ||
V | rpm | ma | rpm | A | kg.cm | W | kg.cm | A | 1:00 | |
12-24v | 24v | 90 | 800 | 90 | 3.5 | 27 | 35 | 135 | 25 | 91 |
