Product Details:
|
| Usage: | Home Appliance,Electric Bicycle,Robot | Speed(rpm): | 18-1410rpm |
|---|---|---|---|
| Type: | Micro BLDC Planetary Motor | Protect Feature: | Totally Enclosed |
| Torque: | 0.43-21kg.cm | Voltage(v): | 12/24VDC |
| Product Name: | 12VDC Micro DC Planetary Gear Motor | Diameter: | 25mm |
| Typical Applications: | Electric Toy Model,Curtain | Shaft Diameter: | 4MM |
| Highlight: | 1410 rpm Planetary Gear Motor,24v 25mm Brushless Gear Motor,25mm High Torque 24v DC Motor |
||

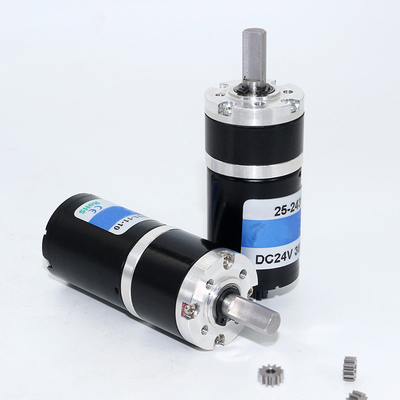

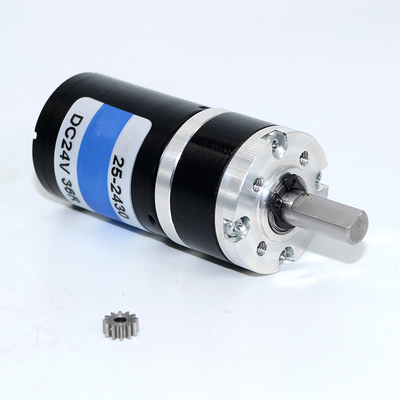

25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
Brushless Dc Planetary Gear Motor, 25mm Micro High Torque Motor With Planetary Gear Head
| Planetary gearbox Micro Dc Gear Motor Description: |
Now ,you can get our this planeatry gearbox dc gear motor and other related planetary gearbox motors as following:
|
|
|
|
PG36-3650 |
PG36-3625 |
PG36-555 |
PG32-31ZY |
|
|
|
|
| PG28-385 | PG28-2838 | PG42-4260 | PG45-4575 |
| Specification: | ||
| Performance Range: | Key Features: | Typical Applications: |
| -Voltage: 12-24VDC | -Metal/Carbon Brush | -Electric Curtain |
| -Speed: 18-1400rpm | -Low noise | -Electric Valve |
| -Torque :0.43-21Kg.cm | -CW/CCW Running | -Safe and Locking |
| -Shaft: D shape (Motor shaft shape and length can be customized) | -Long life | -Robot |
| -Construction:Permanent Magnet | -Small Size | -Home Appliance, |
| -Commutation:Brushless DC motor | -High Torque | -Precise equipment |

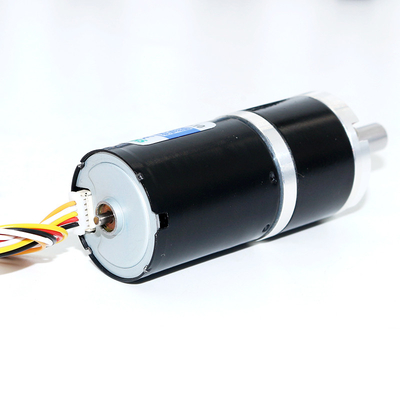

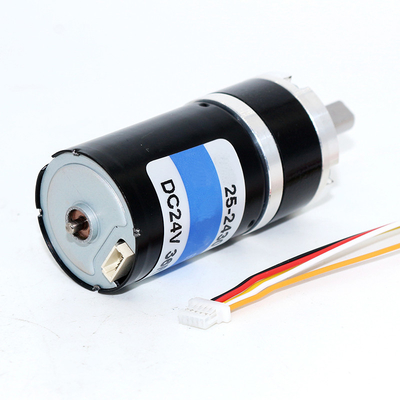

Wiring method:
Black:motor -
Red:motor +
Yellow:signal line(12 pulses per turn)
White:duty ratio. Pulse width speed regulation 15-25KHZ
Orange:reverse line(The default overcurrent protection is 0.8A)
| Datasheet: | |||||||
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | Kg.cm | |||

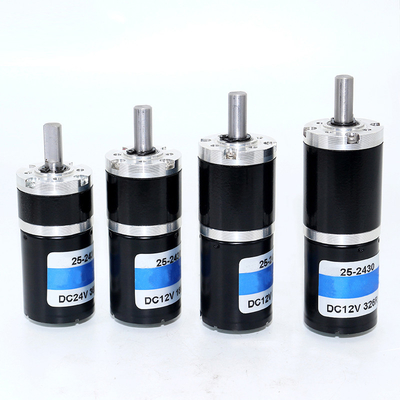

| CM25-2430 | 12-24V | 12VDC | 1411 | 0.36 | 888 | 0.85 | 0.43 |
| 12-24V | 12VDC | 333 | 0.18 | 227 | 0.76 | 1.26 | |
| 12-24V | 12VDC | 79 | 0.18 | 55 | 0.8 | 5.5 | |
| 12-24V | 12VDC | 18 | 0.16 | 14 | 0.83 | 21 | |
| Remarks: 1. Shaft dimension can be customized. 2. The Voltage can be 12V,24V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
