Product Details:
|
| Product Name: | Dc Worm Geared Motors 12volt | Rated Voltage: | 6VDC-12VDC-24V DC |
|---|---|---|---|
| Typical Applications: | Home Appliance,Curtain | Size: | 46*32(mm) |
| High Light: | 90D Worm Gearbox Reducer,115rpm Worm Gearbox Reducer,90D worm gear reducer |
||

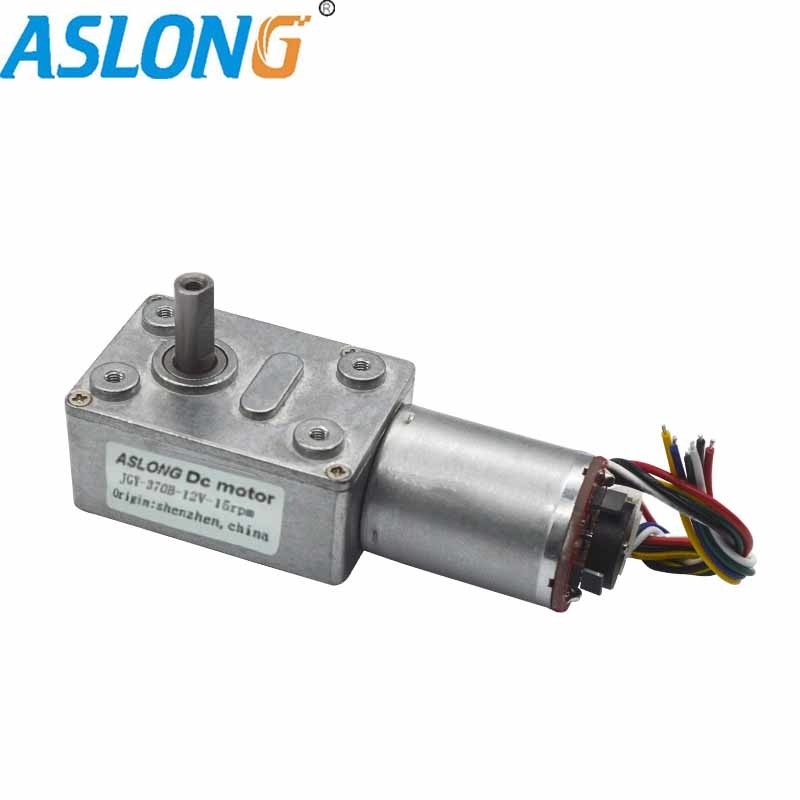

90D Worm Gearbox Reducer 115rpm With 11PPRR Hall Sensor Encoder
90D Worm Gear Box Reducer With Micro Dc Encoder Motor 370 Small Gear Reduction Motor With 11PPRR Hall Sensor EncoderA
JGY -370B Auto-lock Micro DC Worm Square Gear Motor
Description:
1.Standard Operating Conditions
1-1 Rated Voltage:6v 12v 24v.
1-2 Direction of Rotation:CW when viewed from output shaft side
1-3 Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-4 Storage Temperature:Temperature range of -20C~+60C
2. Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
--No load speed:4-115rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
Ratio:1/37.3,1/150,1/200,1/250,1/324,1/600,1/972. 1:1700 1:2900
The Motor speed : 6000rpm
If you need other speed , pls contact us
Remark:Pls confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering,we will random send one for this type,hope your kindly understanding.
| Rated DC 6V660 testing parameter datasheet | |||||||||
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |
| Rated DC 12V1260 testing parameter datasheet | |||||||||
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| Rated DC 24V2460 testing parameter datasheet | |||||||||
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current(ma) | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
| No Load speed (rpm) | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated torque(kg.cm) | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated speed (rpm) | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current(A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Stall Torque (kg.cm) | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current(A) | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 |
