Product Details:
|
| Type: | Worm Gearbox Motor | Usage: | Home Appliance,door Lock,bicycle |
|---|---|---|---|
| Speed(rpm): | 13-271rpm | Torque: | 0.3-3kg.cm |
| Voltage(v): | 12v | Weight: | 19g |

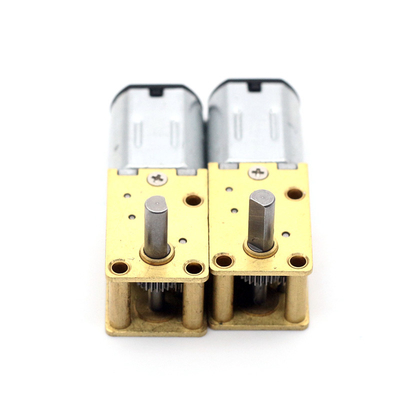

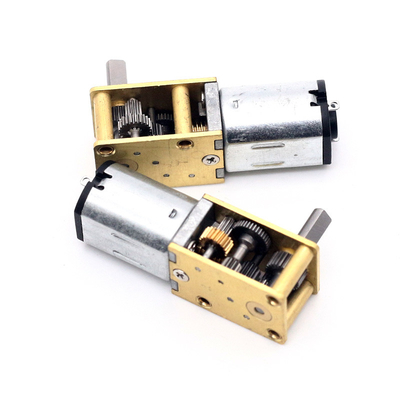

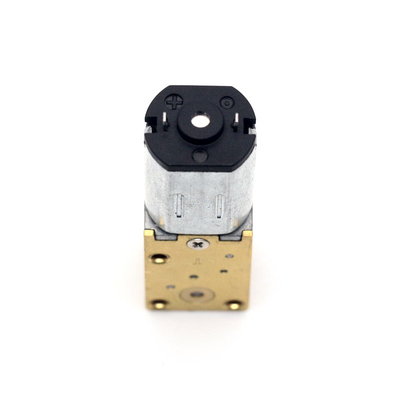

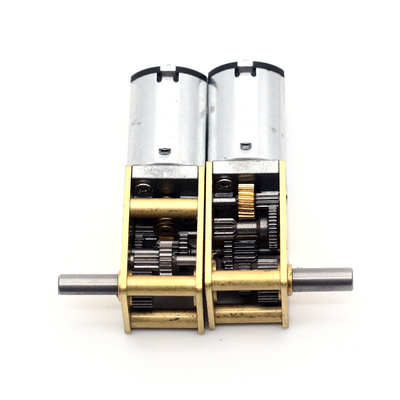

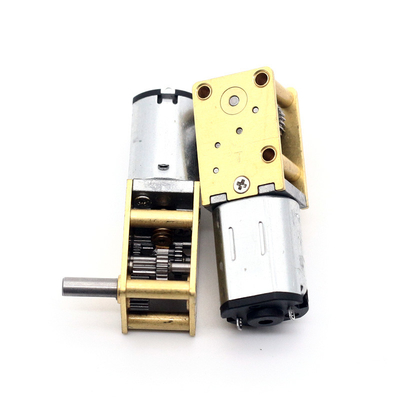

N20 Small DC Gear Motors
| Description: |
The 3V 6V 12V N20 Dc geared motor, DC Motor (High Torque) is a lightweight, high torque, and low RPM motor. This motor is equipped with a gearbox assembly to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is customization long and 3 mm in diameter.
This motor has low energy consumption and low noise. Replacement of spare parts will make your electrical and testing equipment look new. The bearing quality and the service life of the geared motor are improved, and it is extremely durable.
Because of its small size, the motor fits in complex spaces of small-scale applications. One can connect this Micro Gear Motor to wheels to drive them from one place to another while carrying high loads.
The motor is used in DIY RC Hobby, vehicles, drones, airplanes, etc., the miniature gearbox motor, it is an excellent substitute for the rusty or damaged DC geared motor on the machine.
Now ,you can get our this 12mm dc gear motor with magnetic encoder(JGA12-N20B),and other related 12mm gearbox motors as following:
|
|
|
|
| JGA12-N20B | JGA12-N10 | JGA12-N30 | JGA1024-N20 |
|
|
|
|
| JGY-N20 | JGY-N20S | JGA12-N20 sets | GM12-15by |
【Product information】
[Model:JGY-N20】
[Power:1.02W】
[Rated voltage: 12V]
[No-load current:30MA]
[No load speed:16-381RPM]
[Motor size:10 * 18mm]
[Output shaft diameter:3mm】
Datasheet:
| Model | No load | On Load | Stall | Power | |||||
| Workable Voltage | Speed | Current | Speed | Current | Torque | Torque | Current | ||
| V | rpm | A | rpm | ma | gf.cm | gf.cm | ma | W | |
| JGY-N20 | 12 | 271 | 30 | 216 | 85 | 71 | 235.2 | 700 | 1.02 |
| 12 | 136 | 30 | 119 | 85 | 142 | 472 | 700 | 1.02 | |
| 12 | 68 | 30 | 59 | 85 | 283 | 844 | 700 | 1.02 | |
| 12 | 53 | 30 | 46 | 85 | 362 | 1208 | 700 | 1.02 | |
| 12 | 27 | 30 | 23 | 85 | 579 | 1929.6 | 700 | 1.02 | |
| 12 | 13 | 30 | 14 | 85 | 975 | 3251.2 | 700 | 1.02 | |
