Product Details:
|
| Usage: | Home Appliance,Electric Bicycle | Commutation: | Brush |
|---|---|---|---|
| Speed(rpm): | 10-15rpm | Type: | Mini 12v Dc Gear Motor |
| Protect Feature: | Totally Enclosed | Efficiency: | IE 1 |
| Voltage(v): | 6V | Product Name: | 12V Strong Magnetism DC Gear Motor With Eccentric Shaft |
| Material: | Cast Iron Or Aluminium Alloy Casing,Stainless Steel |

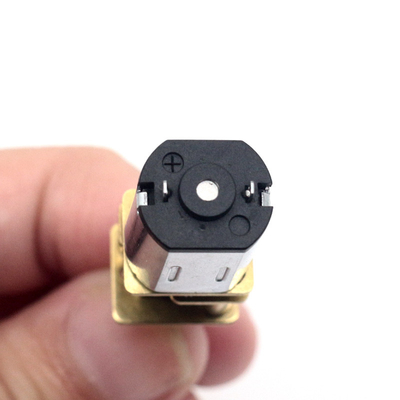

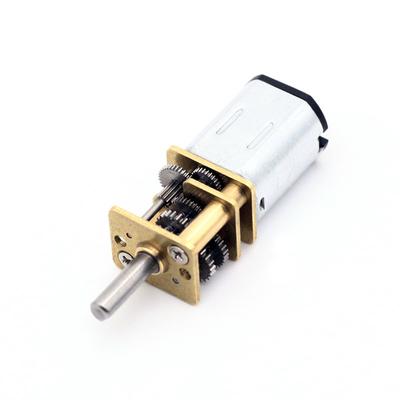

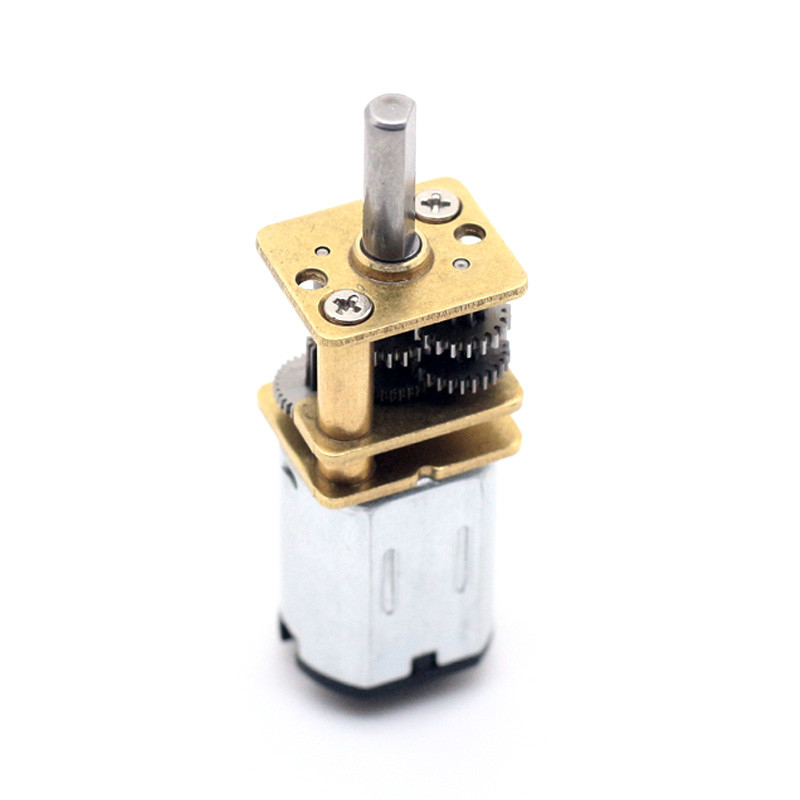

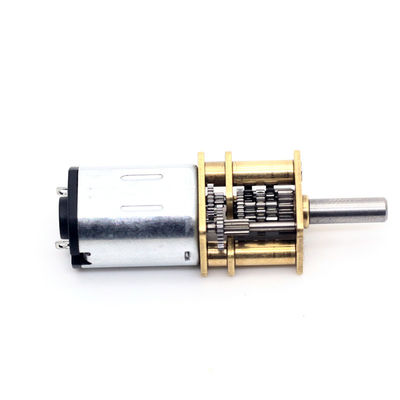

N20 Small DC Gear Motors
| Description: |
The 3V 6V 12V N20 Dc geared motor, DC Motor (High Torque) is a lightweight, high torque, and low RPM motor. This motor is equipped with a gearbox assembly to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is customization long and 3 mm in diameter.
This motor has low energy consumption and low noise. Replacement of spare parts will make your electrical and testing equipment look new. The bearing quality and the service life of the geared motor are improved, and it is extremely durable.
Because of its small size, the motor fits in complex spaces of small-scale applications. One can connect this Micro Gear Motor to wheels to drive them from one place to another while carrying high loads.
The motor is used in DIY RC Hobby, vehicles, drones, airplanes, etc., the miniature gearbox motor, it is an excellent substitute for the rusty or damaged DC geared motor on the machine.
Now ,you can get our this 12mm dc gear motor with magnetic encoder(JGA12-N20B),and other related 12mm gearbox motors as following:
|
|
|
|
| JGA12-N20B | JGA12-N10 | JGA12-N30 | JGA1024-N20 |
|
|
|
|
| JGY-N20 | JGY-N20S | JGA12-N20 sets | GM12-15by |
【Model:JGA12-N20-1000】
【Working volt range: 6V】
【Continuing current :40MA】
【No-loading Rotation speed:6v no-load speed:10-15RPM】
【Power:1.5W】
【Torque : 3KG.CM】
N20 Motor Datasheet:
| Model | Datasheet | ||||||||
| Voltage (V) | No load | Load | Stall | ||||||
| JGA12-N20 | Voltage range | Rated voltage | Speed RPM | Current A | Speed RPM | Current A | Torque KG.CM | Torque KG.CM | Current A |
| 12GA-N20-5 | 1.5-5 | 3 | 1500 | 0.03 | 1150 | 0.08 | 0.02 | 0.30 | 0.3 |
| 12GA-N20-10 | 1.5-5 | 3 | 750 | 0.01 | 580 | 0.03 | 0.05 | 0.40 | 0.1 |
| 12GA-N20-20 | 1.5-5 | 3 | 750 | 0.14 | 570 | 0.2 | 0.07 | 0.56 | 0.5 |
| 12GA-N20-30 | 1.5-5 | 3 | 250 | 0.03 | 200 | 0.07 | 0.09 | 0.70 | 0.18 |
| 12GA-N20-50 | 1.5-5 | 3 | 150 | 0.01 | 110 | 0.02 | 0.11 | 1.00 | 0.17 |
| 12GA-N20-100 | 1.5-5 | 3 | 75 | 0.02 | 60 | 004 | 015 | 1.20 | 0.29 |
| 12GA-N20-150 | 1.5-5 | 3 | 50 | 0.01 | 38 | 0.02 | 0.20 | 1.60 | 1.0 |
| 12GA-N20-210 | 1.5-5 | 3 | 35 | 0.01 | 28 | 0.02 | 0.26 | 2.00 | 1.0 |
| 12GA-N20-250 | 1.5-5 | 3 | 30 | 0.02 | 23 | 0.04 | 0.50 | 4.00 | 1.0 |
| 12GA-N20-298 | 1.5-5 | 3 | 25 | 0.01 | 20 | 0.04 | 0.50 | 4.00 | 1.0 |
| 12GA-N20-380 | 1.5-5 | 3 | 20 | 0.01 | 14 | 0.04 | 0.50 | 4 | 1.0 |
| 12GA-N20-1000 | 1.5-5 | 3 | 7.5 | 0.01 | 5.5 | 0.04 | 0.50 | 4 | 1.0 |
| 12GA-N20-10 | 3-9 | 6 | 2000 | 0.04 | 1500 | 0.15 | 0.02 | 0.30 | 0.5 |
| 12G.AN20-10 | 3-9 | 6 | 1000 | 0.01 | SOO | 0.03 | 0.06 | 0.40 | 0.16 |
| 12GAN20-20 | 3-9 | 6 | 500 | 0.16 | 400 | 0.23 | 0.15 | 1.00 | 0.56 |
| 12G.AN20-30 | 3-9 | 6 | 400 | 0.04 | 340 | 0.07 | 0.17 | 1.40 | 0.2 |
| 12GAN20-30 | 3-9 | 6 | 300 | 0.03 | 240 | 0.04 | 0.20 | 1.60 | 0.2 |
| 12G.AN20-50 | 3-9 | 6 | 200 | 0.03 | 160 | 0.06 | 0.30 | 1.80 | 0.23 |
| 12GAN20-100 | 3-9 | 6 | 150 | 0.03 | 120 | 0.05 | 0.35 | 2.40 | 0.25 |
| 12G.AN20-200 | 3-9 | 6 | 100 | 0.01 | SO | 0.03 | 0.40 | 3.20 | 1.0 |
| 12G.AN20-298 | 3-9 | 6 | 60 | 0.03 | 50 | 0.05 | 0.60 | 3.20 | 1.0 |
| 12GAN20-29S | 3-9 | 6 | 50 | 0.02 | 40 | 0.05 | 1.50 | 10.00 | 1.0 |
| 12G.AN20-29S | 3-9 | 6 | 30 | 0.02 | 25 | 0.04 | 1.50 | 10.00 | 1.0 |
| 12G.AN20-10 | 6-12 | 12 | 4000 | 0.16 | 3000 | 0.34 | 0.04 | 0.60 | 0.6 |
| 12GAN20-10 | 6-12 | 12 | 2000 | 0.02 | 1600 | 0.06 | 0.12 | 1.00 | 0.35 |
| 12G.AN20-20 | 6-12 | 12 | 1000 | 0.19 | SOO | 028 | 0.30 | 2.40 | 0.6 |
| 12G.AN20-30 | 6-12 | 12 | SOO | 0.11 | 700 | 0.16 | 0.35 | 3.00 | 0.4 |
| 12GAN20-30 | 6-12 | 12 | 600 | 0.03 | 500 | 0.07 | 0.40 | 3.20 | 0.2 |
| 12GAN20-50 | 6-12 | 12 | 400 | 0.11 | 340 | 0.17 | 0.50 | 4.00 | 0.3 |
| 12GAN20-100 | 6-12 | 12 | 300 | 0.05 | 240 | 0.09 | 0.60 | 4.00 | 0.3 |
| 12G.AN20-200 | 6-12 | 12 | 200 | 0.02 | 160 | 0.04 | 1.00 | 7.00 | 1.0 |
| 12G.AN20-298 | 6-12 | 12 | 130 | o,n | 100 | 0.1S | 1.50 | 9.00 | 1.0 |
| 12GAN20-29S | 6-12 | 12 | 100 | 0.04 | 80 | 0.07 | 2.00 | 16.00 | 1.0 |
| 12G.AN20-29S | 6-12 | 12 | 60 | 0.04 | 40 | 0.06 | 2.00 | 16.00 | 1.0 |
【Wiring method】
【Product internal structure diagram】
【High quality materials】
【Not easy to rust】
【After gear grinding and heat treatment, it has advantages such as good wear resistance, long service life, and low noise】
[High quality brush motor]
[The service life can reach over 800 hours]
【Stainless steel material output shaft】
【Durable, stable and smooth operation】
