Product Details:
|
| Type: | Micro Metal Gear Motor | Usage: | Home Appliance,door Lock,bicycle |
|---|---|---|---|
| Speed(rpm): | 16-381rpm，35rpm | Torque: | 0.3-3kg.cm |
| Voltage(v): | 12v | Weight: | 19g |

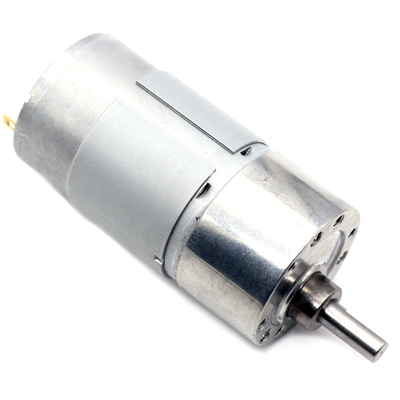

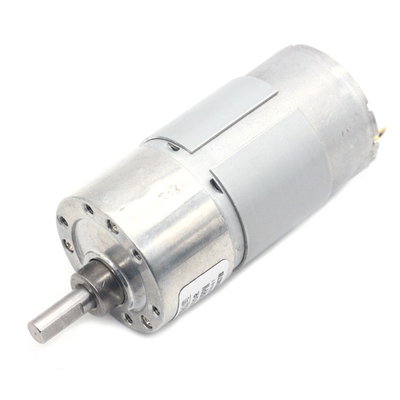

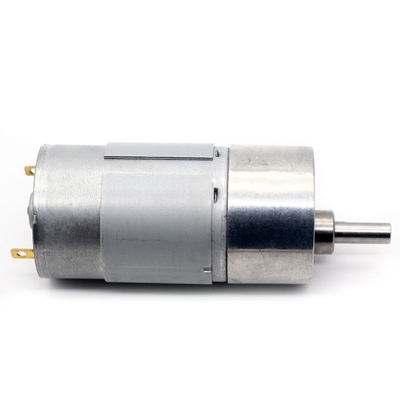

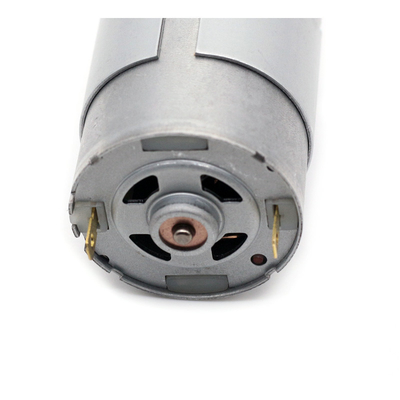

JGB37-545 Micro Metal Gear Motor 12V 24V 35rpm Low Rpm Dc Motors
JGB37-545 Reducer Motor Smart Car 12V24V Mini DC Gear Reducer Motor Low Speed Motor
General specifications:
* Voltage:12V
* No-load speed:16-381RPM
* No-load current:30mA
* Stall Torque:0.3g-3.3kg.cm
* Stall current:0.7A
Voltage/rpm/shaft can be customized , welcome to consult.
Drawing:
Datasheet:
| Model:JGB37-545 | No Load | On Load | Stall | Gearbox Length |
|||||
| Reduction ratio | Rated volt | ||||||||
| Speed | Current | Torque | Speed | Current | Torque | Current | |||
| V | RPM | mA | Kg.cm | RPM | A | KG.CM | A | mm | |
| 6.3 | 6 | 500 | 100 | 0.2 | 400 | 0.45 | 1.5 | 1.8 | 19.0 |
| 10 | 6 | 312 | 100 | 04 | 260 | 0.45 | 25 | 1.8 | 19.0 |
| 19 | 6 | 166 | 100 | 0.8 | 140 | 0.45 | 4.7 | 1.8 | 22.0 |
| 30 | 6 | 104 | 100 | 1.2 | 88 | 0.45 | 7.5 | 1.8 | 22.0 |
| 56 | 6 | 55 | 100 | 22 | 47 | 0.45 | 14 | 1.8 | 24.0 |
| 90 | 6 | 35 | 100 | 32 | 29 | 0.45 | 22 | 1.8 | 24.0 |
| 131 | 6 | 24 | 100 | 52 | 20 | 0.45 | 32 | 1.8 | 26.5 |
| 168 | 6 | 19 | 100 | 67 | 15 | 0.45 | 35 | Ban Stall | 26.5 |
| 270 | 6 | 11 | 100 | 10 | g | 0.45 | 35 | 26.5 | |
| 506 | 6 | 6 | 100 | 20 | 5 | 0.45 | 35 | 29.0 | |
| 810 | 6 | 4 | 100 | 32 | 3 | 0.45 | 35 | 29.0 | |
| 63 | 12 | 1000 | 200 | 0.5 | 800 | 1 | 3 | 5 | 19.0 |
| 10 | 12 | 625 | 200 | 08 | 530 | 1 | 5 | 5 | 19.0 |
| 19 | 12 | 332 | 200 | 1.4 | 280 | 1 | 94 | 5 | 22.0 |
| 30 | 12 | 208 | 200 | 1.5 | 176 | 1 | 15 | 5 | 22.0 |
| 56 | 12 | 110 | 200 | 45 | 95 | 1 | 28 | 5 | 24.0 |
| 90 | 12 | 70 | 200 | 72 | 58 | 1 | 35 | Ban Stall | 24.0 |
| 131 | 12 | 47 | 200 | 105 | 40 | 1 | 35 | 26.5 | |
| 168 | 12 | 37 | 200 | 135 | 30 | 1 | 35 | 26.5 | |
| 270 | 12 | 23 | 200 | 216 | 19 | 1 | 35 | 26.5 | |
| 506 | 12 | 12 | 200 | 35 | 10 | 1 | 35 | 29.0 | |
| 810 | 12 | 8 | 200 | 35 | 65 | 1 | 35 | 29.0 | |
| 63 | 24 | 2000 | 400 | 01 | 1660 | 1.9 | 6 | 11 | 19.0 |
| 10 | 24 | 1250 | 400 | 1.6 | 1050 | 1.9 | 10 | 11 | 19.0 |
| 19 | 24 | 660 | 400 | 03 | 558 | 1.9 | 19 | 11 | 22.0 |
| 30 | 24 | 415 | 400 | 3.9 | 350 | 1.9 | 30 | 11 | 22.0 |
| 56 | 24 | 223 | 400 | 09 | 187 | 1.9 | 35 | Ban Stall | 24.0 |
| 90 | 24 | 140 | 400 | 14 | 115 | 1.9 | 35 | 24.0 | |
| 131 | 24 | 95 | 400 | 20 | 80 | 1.9 | 35 | 26.5 | |
| 168 | 24 | 75 | 400 | 26 | 62 | 1.9 | 35 | 26.5 | |
| 270 | 24 | 46 | 400 | 35 | 38 | 1.9 | 35 | 26.5 | |
| 506 | 24 | 24 | 400 | 35 | 20 | 1.9 | 35 | 29.0 | |
| 810 | 24 | 15 | 400 | 35 | 13 | 1.9 | 35 | 29.0 | |
