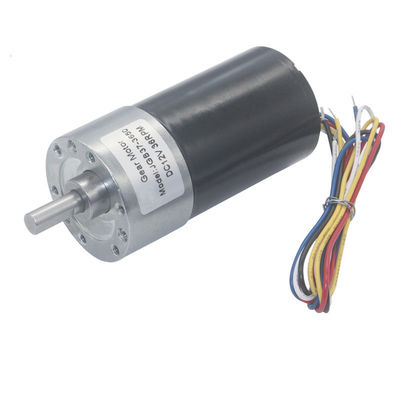

BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home

BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home
BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home
BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home

Large Image :  BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: CE,RoHs
Model Number: JGB37-3650
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negeotiation
Packaging Details: on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Delivery Time: 5-8 working days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 5000 Pieces Per day

BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home

Description
Voltage: 24V No-load Speed: 9-1280RPM
No-load Current: 0.5-0.6A Stall Current:: 5A
Stall Torque: 6-72KG.cm Product Name: JGB37-3650
Usage: Home Appliance , Electric Bicycle, Boat, Fan,Car Construction: Permanent Magnet
High Light:

BLDC Electric DC Gear Motor

,

JGB37 3650 Electric DC Gear Motor

,

JGB37 3650 bldc gear motor

BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home

Brushless motor 2 buyers 36mm low cost high quality JGB37-3650 BLDC dc for SMART HOME

Product Description

General specifications:

1-1   Voltage: 24V
1-2   No-load speed:9-1280RPM
1-3   No-load Current: 0.5-0.6A
1-4   Stall Current: 5A
1-5   Stall torque: 6-72KG.cm

The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells you the speed of the motor, and the order of the transitions tells you the direction.
Voltage
No-load speed
No-load Current
Stall Current
Stall torque
24V
9-1280RPM
0.5-0.6A
5A
6-72KG.cm



Datasheet:


JGB37-3650   No load On load       Stall
Workable Rated Speed current speed current Torque Output
Power
Torque Current Ratio Size Weight
Range Volt.V rpm ma rpm ma kg .cm W kg.cm A 1:00 mm unit:g
12-30V 24 1280 170 960 600 1.5 25 6 5 6.25 19 260
12-30V 24 800 170 600 600 1.8 25 7 5 10 19 260
12-30V 24 425 170 319 600 3 25 12 5 18.8 22 265
12-30V 24 266 170 200 600 6 25 24 5 30 22 265
12-30V 24 142 170 107 550 11 25 44 5 56 24 265
12-30V 24 88 170 66 550 18 25 72 5 90 24 265
12-30V 24 60 170 45 550 26 25 Forbidden 5 131 26.5 270
12-30V 24 47 170 35 500 33 25 Forbidden 5 168 26.5 270
12-30V 24 29 170 22 500 50 25 Forbidden 5 270 26.5 270
12-30V 24 15 170 11 500 60 25 Forbidden 5 506 29 280
12-30V 24 9 170 7 500 60 25 Forbidden 5 810 29 280





Dimension:



BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home 0








BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home 1

The following is a description of the quality materials and structures of this motor.

1. Using high quality gears, the gears are heat-treated and wear-resistant to ensure the life of the motor

2. D-axis

3. The inside of the motor uses a neodymium iron boron magnetic core with very high saturation magnetic strengthening and excellent magnetic properties.

4. The length of the line 280mm

BLDC Brushless Electric DC Gear Motor JGB37 3650 For Smart Home 2
