Product Details:
|
| Usage: | For DIY | Commutation: | Brushed |
|---|---|---|---|
| Speed(rpm): | 6-1600rpm | Type: | DC Gear Motor With Encoder |
| Efficiency: | IE 1 | Construction: | Permanent Magnet |
| Material: | Stainless Steel | Voltage: | 12V/24V |
| High Light: | 37mm High Torque Dc Gear Motor,1600 Rpm High Torque Dc Gear Motor,1600 Rpm high torque gear motor |
||

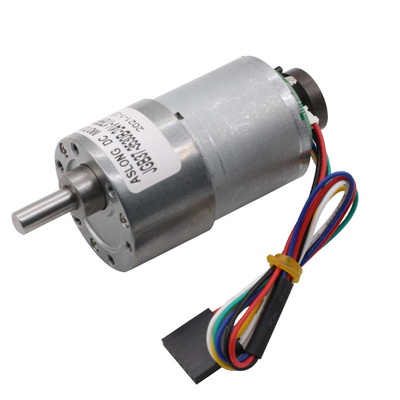

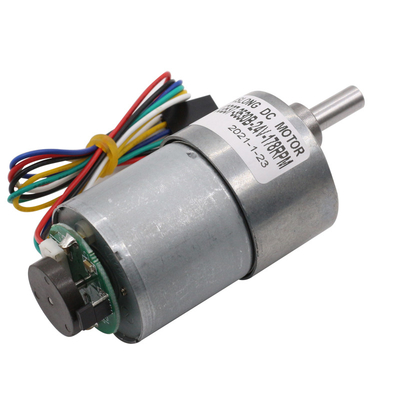

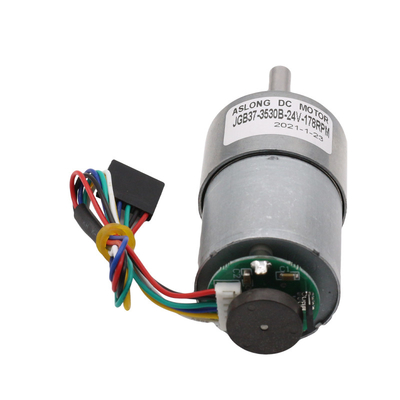

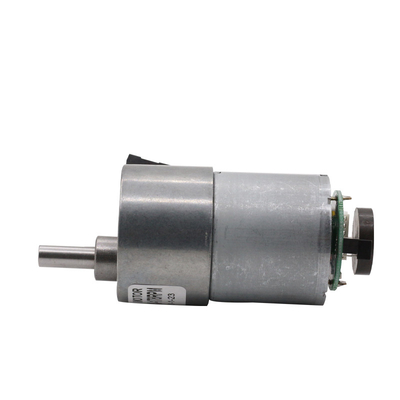

37mm 12v 24v 1600 Rpm High Torque Dc Gear Motor With Encoder
37mm Diameter All Metal Gear Box 12v 24v DC Gear Motor with Encoder 7RPM to 1600 rpm Gearmotor motop High Torque Eccentric Shaft
Wiring method
Red line : DC power supply positive pole connected to the motor
Black wire : DC power supply negative pole connected to the motor
Green line : Sensor ground
Blue line : Sensor power supply
Yellow wire : Signal A output point
White line : Signal B output point
Encoder introduction
1. Outstanding features: This motor witn encoder; the motor has a speed measuring function ;
2. The encoder has high performance and is a two-channel and three-channel incremental magnetic encoder. It can adapt to harsh environments. Each magnetic encoder contains a magnetic grid and magnetic sensitivity to detect the motor. The quadrature phase angle of the two channels of the output is 90 degree Celsius square wave, the motor has two signal lines, the motor rotates one turn, each output 16 square waves
Structures :
1. Use all metal gears
2. Pure copper coil with super high conductivity and high temperature resistance
3. The motor has an encoder, you can measure the number of revolutions
4. Using high-quality gears, the gears are heat treated and more wear-resistant, making the motor last longer.
5. The motor of this link does not have a protective cover. If you need a motor with a protective cover, please contact us before purchasing.
Motor parameter table:
Your project load should not exceed rated torque of the motor, otherwise the life of the motor will be reduced
The parameters in the table below are the parameters for the motor connection rated voltage 12v / 24v
If the motor is connected to a non-rated voltage input, all parameters of the motor will change.
| JGB37-3530 Rate Volt DC12V | |||||||||||
| Reduction Ratio | 6.25 | 10 | 18.8 | 30 | 56 | 90 | 131 | 168 | 270 | 506 | 810 |
| No load Current (ma) | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 | <120 |
| No load RPM | 1600 | 1000 | S31 | 333 | 178 | 111 | 76 | S9 | 37 | 20 | 12 |
| Load torque (Kg,cm) | 0.3 | 0.38 | 0.7 | 1.14 | 2.1 | 3.4 | 5 | 6.3 | 10 | 19 | 30 |
| Load RPM | 1120 | 800 | 424 | 266 | 412 | 88 | 60 | 47 | 29 | 16 | 9 |
| Load Current (ma) | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 | <400 |
| Max Torque (Kg.cm) | 1 | 1.S2 | 2.8 | 4.5 | 8.4 | 13 | 20 | 25 | Max 40KG | ||
| Gear box length (rrm) | 19 | 19 | 22 | 22 | 24 | 24 | 26.5 | 26.5 | 26.5 | 29 | 29 |
| JGB37-3530 Rate Volt DC24V | |||||||||||
| Reduction Ratio | 6.25 | 10 | 18.8 | 30 | 56 | 90 | 131 | 168 | 270 | 506 | 810 |
| No load Current (ma) | <S0 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <S0 |
| No load RPM | 960 | 600 | 319 | 200 | 107 | 66 | 45 | 35 | 22 | 12 | 7 |
| Load torque (Kg,cm) | 0.2 | 0.29 | 0.54 | 1.1 | 1.6 | 2.61 | 3.7 | 4.8 | 7.8 | 14 | 23 |
| Load RPM | 672 | 480 | 255 | 160 | 85 | 52 | 36 | 28 | 18 | 10 | 5.6 |
| Load Current (ma) | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 | <100 |
| Max Torque (Kg.cm) | 1 | 1.16 | 2.1 | 4.4 | 6.4 | 10 | 14.8 | 19 | Max 31KG | ||
| Gearbox length (mm) | 19 | 19 | 22 | 22 | 24 | 24 | 26.5 | 26.5 | 26.5 | 29 | 29 |
