High Torque Eccentric Shaft Gear Motor 1600rpm 37mm Hall Encoder Cap Protective

High Torque Eccentric Shaft Gear Motor 1600rpm 37mm Hall Encoder Cap Protective
High Torque Eccentric Shaft Gear Motor 1600rpm 37mm Hall Encoder Cap Protective High Torque Eccentric Shaft Gear Motor 1600rpm 37mm Hall Encoder Cap Protective

Large Image :  High Torque Eccentric Shaft Gear Motor 1600rpm 37mm Hall Encoder Cap Protective

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: Rosh,CE
Model Number: JGB37-3530GB
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: 144pcs/carton
Delivery Time: 3-7working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 10000pcs/week

High Torque Eccentric Shaft Gear Motor 1600rpm 37mm Hall Encoder Cap Protective

Description
Usage: For DIY Commutation: Brushed
Speed(rpm): 6-1600rpm Type: DC Gear Motor With Encoder
Efficiency: IE 1 Construction: Permanent Magnet
Material: Stainless Steel Voltage: 12V/24V
High Light:

1600rpm Shaft Gear Motor

,

37mm Shaft Gear Motor

,

1600rpm small size gear motor

High Torque Eccentric Shaft Gear Motor 1600rpm 37mm Hall Encoder Cap Protective



12V 24VDC 7-1600RPM 37mm Gearbox High Torque Eccentric Shaft Gear Motor With Hall Encoder Geared Motors with protective cap

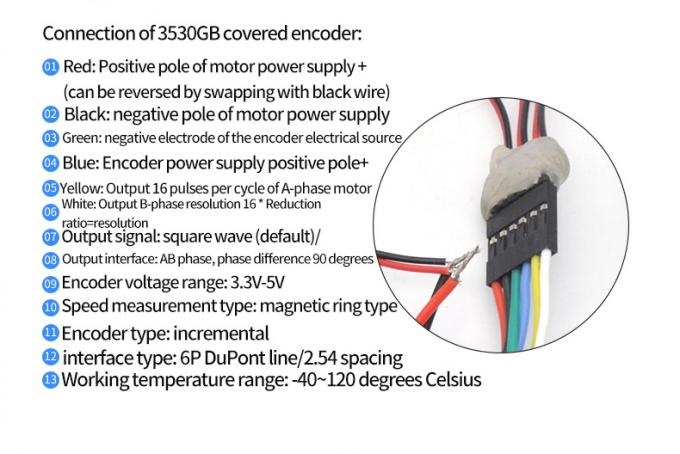

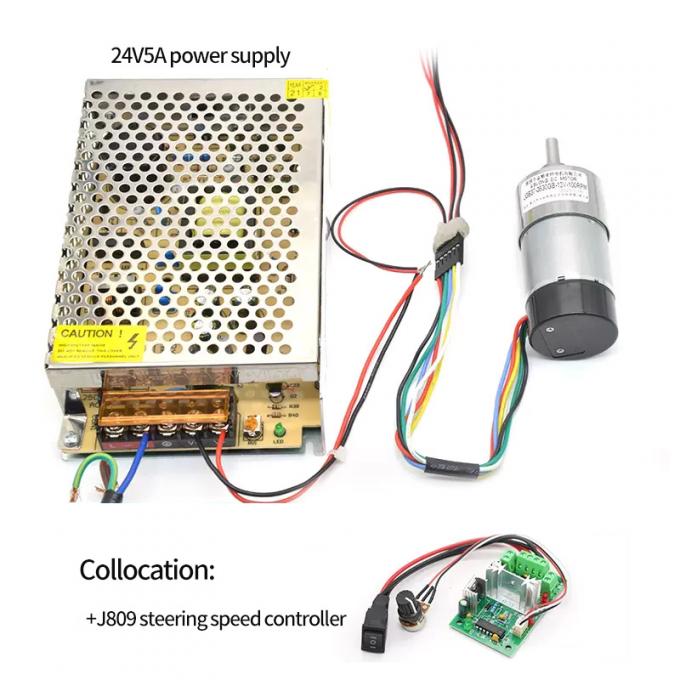

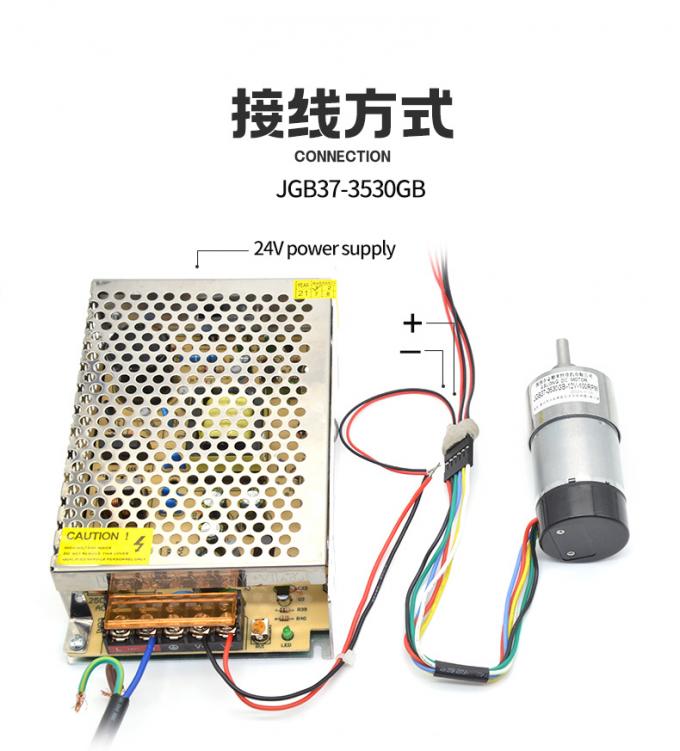

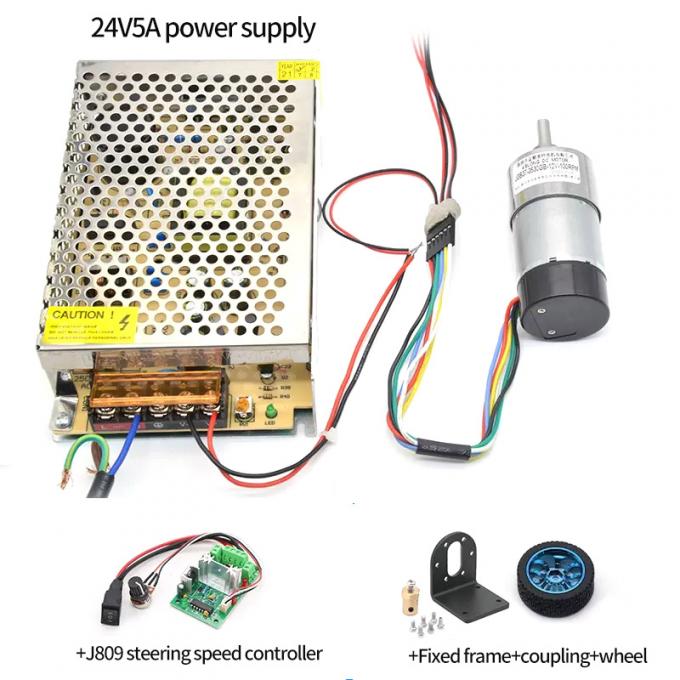

Wiring method

Red line : DC power supply positive pole connected to the motor

Black wire : DC power supply negative pole connected to the motor

Green line : Sensor ground

Blue line : Sensor power supply

Yellow wire : Signal A output point

White line : Signal B output point

  • small size gear motor Encoder introduction

    1. Outstanding features: This motor witn encoder; the motor has a speed measuring function ;

    2. The encoder has high performance and is a two-channel and three-channel incremental magnetic encoder. It can adapt to harsh environments. Each magnetic encoder contains a magnetic grid and magnetic sensitivity to detect the motor. The quadrature phase angle of the two channels of the output is 90 degree Celsius square wave, the motor has two signal lines, the motor rotates one turn, each output 16 square waves

  • High Torque Eccentric Shaft Gear Motor 1600rpm 37mm Hall Encoder Cap Protective 0

  •





  • High Torque Eccentric Shaft Gear Motor 1600rpm 37mm Hall Encoder Cap Protective 1

  •

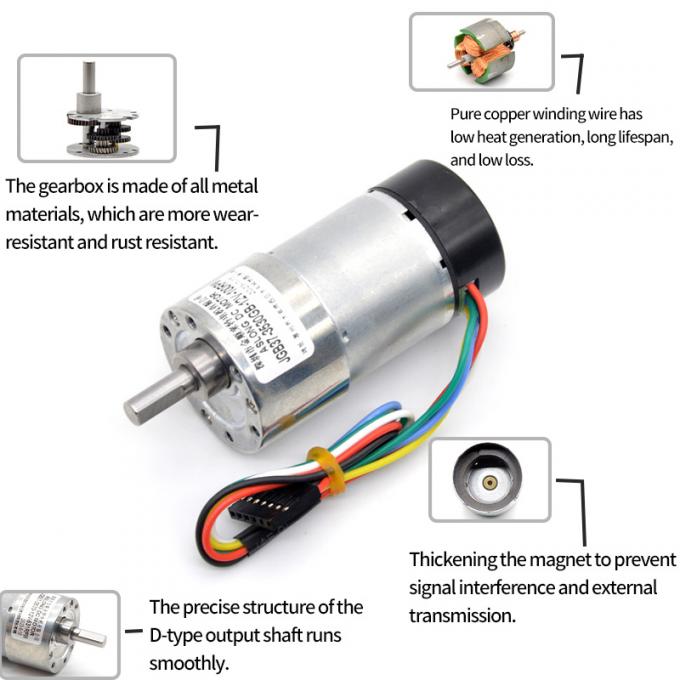

  • Structures :

    1. Use all metal gears

    2. Pure copper coil with super high conductivity and high temperature resistance

    3. The motor has an encoder, you can measure the number of revolutions

    4. Using high-quality gears, the gears are heat treated and more wear-resistant, making the motor last longer.

    5. The motor of this link does not have a protective cover. If you need a motor with a protective cover, please contact us before purchasing.

High Torque Eccentric Shaft Gear Motor 1600rpm 37mm Hall Encoder Cap Protective 2

Motor parameter table:

Your project load should not exceed rated torque of the motor, otherwise the life of the motor will be reduced

The parameters in the table below are the parameters for the motor connection rated voltage 12v / 24v

If the motor is connected to a non-rated voltage input, all parameters of the motor will change.

JGB37-3530GB Rate Volt DC12V
Reduction Ratio 6.25 10 18.8 30 56 90 131 168 270 506 810
No load Current (rrA) <120 <120 <120 <120 <120 <120 <120 <120 <120 <120 <120
No load RPM 1600 1000 531 333 178 111 76 59 37 20 12
Load torque (Kg,cm) 0.3 0.38 0.7 1.14 2.1 3.4 5 6.3 10 19 30
Load RPM 1120 800 424 266 412 88 60 47 29 16 9
Load Current (rrA) <400 <400 <400 <400 <400 <400 <400 <400 <400 <400 <400
Max Torque (Kg.cm) 1 1.52 2.8 4.5 8.4 13 20 25 Max 40KG
Gear box length (rrm) 19 19 22 22 24 24 26.5 26.5 26.5 29 29

JGB37-3530GB Rate Volt DC24V
Reduction Ratio 6.25 10 18.8 30 56 90 131 168 270 506 810
No load Current (rrA) <50 <50 <50 <50 <50 <50 <50 <50 <50 <50 <50
No load RPM 960 600 319 200 107 66 45 35 22 12 7
Load torque (Kg,cm) 0.2 0.29 0.54 1.1 1.6 2.61 3.7 4.8 7.8 14 23
Load RPM 672 480 255 160 85 52 36 28 18 10 5.6
Load Current (rM) <100 <100 <100 <100 <100 <100 <100 <100 <100 <100 <100
Max Torque (Kg.cm) 1 1.16 2.1 4.4 6.4 10 14.8 19 Max 31KC
Gear box length (rrm) 19 19 22 22 24 24 26.5 26.5 26.5 29 29
