JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

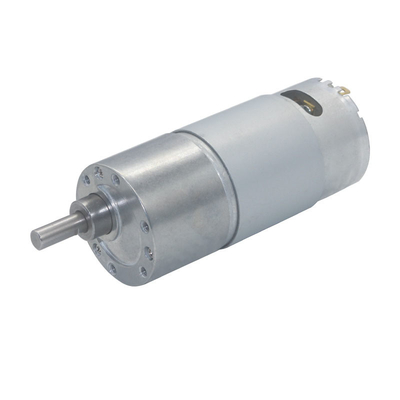

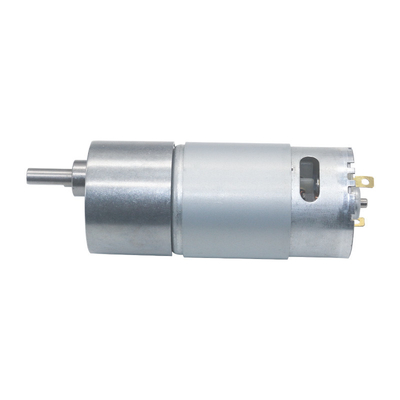

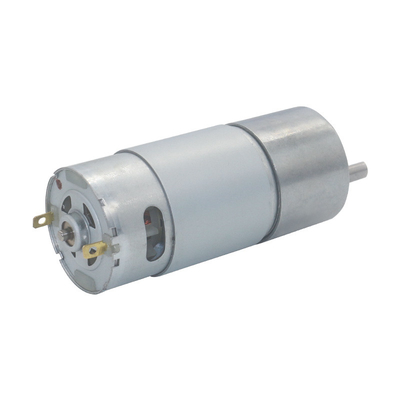

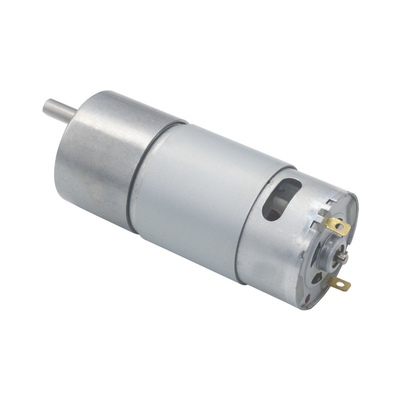

JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt

JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt
JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt

Large Image :  JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt

Product Details:
Place of Origin: CHINA
Brand Name: ASLONG
Certification: CE,CC
Model Number: JGB37-550
Payment & Shipping Terms:
Minimum Order Quantity: 100Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 2-5 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability: 5000 Pieces Per Day

JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt

Description
Type: High Torque Micro Gear Motor Usage: Home Appliance,door Lock,bicycle,Fan
Speed(rpm): 16-381rpm Torque: 0.3-3kg.cm
Voltage(v): 12v Weight: 19g
High Light:

JGB37-550 Micro DC Gear Motors

,

JGB37-550

,

JGB37-550 DC Motor 6 Volt

JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt​



JGB37-550 High Torque Motor 12v DC Motor 6V All Metal Electric Motor


General specifications:


* Voltage:12V
* No-load speed:16-381RPM
* No-load current:30mA
* Stall Torque:0.3g-3.3kg.cm
* Stall current:0.7A



Voltage/rpm/shaft can be customized , welcome to consult.





Introduction of the motor:



1.Name of the motor: JGB37-550 Micro 6v12vDC Gear Motor

2. Rated voltage have DC 6V and DC 12V

3. DC 6V ; You can choose the no load speed have :

9rpm/14rpm/26rpm/43rpm/55rpm/80rpm/130rpm/240rpm/380rpm/725rpm/1150rpm

Rated torque between 0.5 To 30 KG.CM; stall torque: between 1-35KG, it is recommended that your project load not exceed the rated torque; select a no load speed in DC 6V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

4. DC 12V ; You can choose the no load speed have :

18rpm/28rpm/53rpm/86rpm/110rpm/160rpm/260rpm/480rpm/770rpm/1450rpm/2300rpm

Rated torque between 1.2 To 28 KG.CM; stall torque: between 2.1-35KG, it is recommended that your project load not exceed the rated torque; select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.

5. Direction of rotation of the motor: CW Or CCW ; Support Reversed

6. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.

7. Gear material: Metal gears make the motor last longer

8. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination. You can refer to the combination sales introduction below.

9. The motor has standard noise when working. If your project has requirements for the working noise of the motor, please consult us before purchasing. We will give you some suggestions. Thank you.

When the motor is reversed, the working sound of the motor will be greater than the forward rotation, which is normal.

10. Motor DC power connection is safe; the experiment proves that the motor voltage is lower than 36V without any danger.

11. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.





Datasheet:

Rated DC6Vt parameter table / testing
Reduction ratio 63 10 19 30 56 90 131 168 270 506 810
No load currert MA <0.9 <0.9 <0.9 <0.9 <0.9 <0.9 <0.9 <0.9 <0.9 <0.9 <0.9
No load speed rpml 1150 725 380 240 130 80 55 43 26 14 9
Rated torque kg.cml 1 1 2 3 5 8 11 14 20 25 30
Rated speed rpm 920 580 240 160 100 64 45 33 20 11 7
Rated currentA <1.5 <1.5 <1.5 <1.5 <1.5 <1.5 <1.5 <1.5 <1.5 <1.5 <1.5
Maxtorque kg.cm 1 2 3 5 10 15 22 28 MAX 35KG
Stop currertA 3 3 3 3 3 3 3 3 Ban stall
length 19 22 24 27 29
Rated DC12V testing parameter table
Reduction ratio 63 10 19 30 56 90 131 168 270 506 810
No load currert MA <1 <1 <1 <1 <1 <1 <1 <1 <1 <1 <1
No load speed rpm 2300 1450 770 480 260 160 110 86 53 28 18
Rated torque kg.cm 1.2 0.5 1.0 1.5 3.0 4.5 7.0 9.0 14.0 26.0 30
Rated speed rpm 1900 1160 600 380 200 130 88 69 42 22 14
Rated currert A <2.5 <2.5 <2.5 <2.5 <2.5 <2.5 <2.5 <2.5 <2.5 <2.5 <2.5
Max torque kg.cm 2 3 6 10 19 30 Max35KG
Stop currertA 6 6 6 6 6 6 Ban stall
Length 19 22 24 27 29





Drawing:


JGB37-550 High Torque Micro DC Gear Motors 12v DC Motor 6 Volt 0
