Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm

Large Image : Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm

Product Details:

Place of Origin:	China
Brand Name:	Aslong
Certification:	ROSH,CE
Model Number:	5840-3650SCDtype

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiation
Delivery Time:	5-8working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Week

Contact Now

Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm

Description

Usage:	Home Appliance,Electric Bicycle,Car	Commutation:	Brushless
Speed(rpm):	8-470RPM	Type:	BLDC Motor
Certification:	CE,ROHS,CCC	Efficiency:	IE 2
Protect Feature:	Totally Enclosed,	Product Name:	Double Shaft Worm Gear Motor Brushless DC Motor D Type 5840-3650 8-470rpm 2.5-70KG 12v 24v
High Light:	470rpm Brushless DC Gear Motor , DC12v Brushless DC Gear Motor , 470rpm brushless dc gearmotor

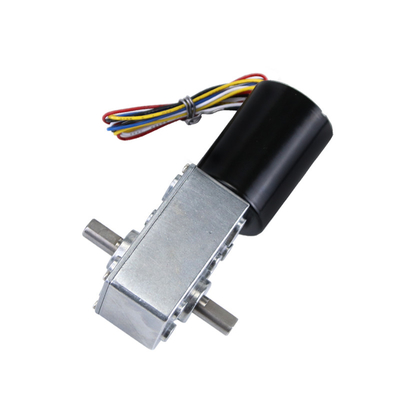

Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm

Double Shaft Worm Gear Motor Brushless DC Motor D type 5840-3650 8-470rpm 2.5-70KG 12v 24v

Specification:

Voltage: DC12V

No-load Speed: 8rpm,14rpm,20rpm,40rpm,80rpm,130rpm,235rpm

Voltage: DC24V

No-load Speed: 16rpm,27rpm,40rpm,80rpm,160rpm,260rpm,470rpm

Error: ±5%

Wiring:

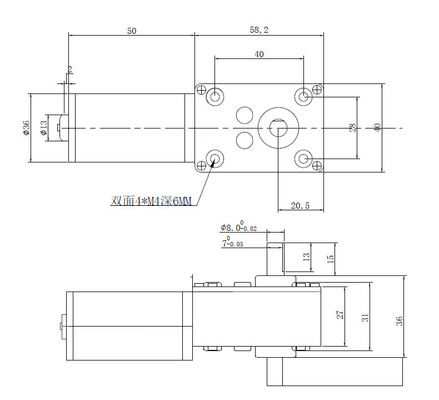

Datasheet:

Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm 1

5840-3650
Reduction ratio	Rated Volt	No Load		AT Load			STall
	Rated Volt	SPEED	CURRENT	Torque	SPEED	Current	TOGQCE	CURRENT
	V	RPM	mA	KG.cm	RPM	A	KG..CM	A
17	12	235	230	2.5	180	0.8	4.3	3
31	12	130	230	4.5	100	0.8	8	3
50	12	80	230	7.3	60	0.8	12.5	3
100	12	40	230	14.5	30	0.8	25	3
200	12	20	230	29	15	08	51	3
290	12	14	230	42	10	0.8	70	3
500	12	8	230	60	6	0.8	70	3
17	24	470	300	5	380	1.6	8.5	3
31	24	260	300	9.5	200	1.6	15.5	3
50	24	160	300	15	130	1.6	25	3
100	24	80	300	30	60	1.6	50	3
200	24	40	300	40	30	1.6	70	3
290	24	27	300	50	20	1.6	70	3
500	24	16	300	60	12	1.6	70	3

FAQ

Q1: Are you a Manufacturer or a Trading Company?

A:We are a professional manufacturer with over 15 years of experience, and have a complete supply chain from parts processing to finished products.

Q2: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

Q3: How about Sample order?

A: Sample is available for you. please contact us for details. Once we charge you sample fee,please feel easy, it would be refund when you place formal order.

Q4: How long is the producing and shipping?

A: 1. Delivery timedepends on the quantity you order. usually it takes 7-15 working days.

2. Regular type products can be shipped within 3 workingdays, and other customized samples can be shipped within 7-10 working days.

Q5: When will you reply after got my inquiries?

A: Ourcustomer service is online 24 hours, looking forward to your inquiry.
