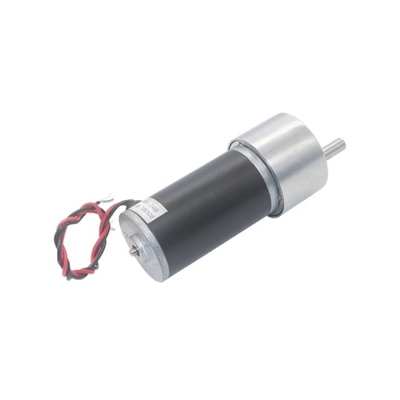

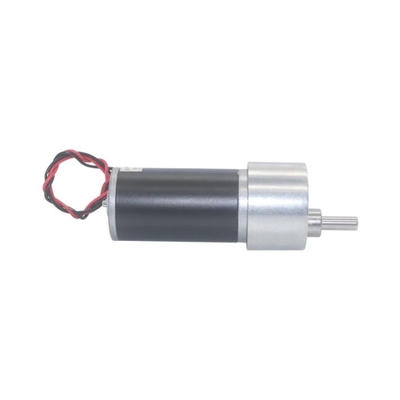

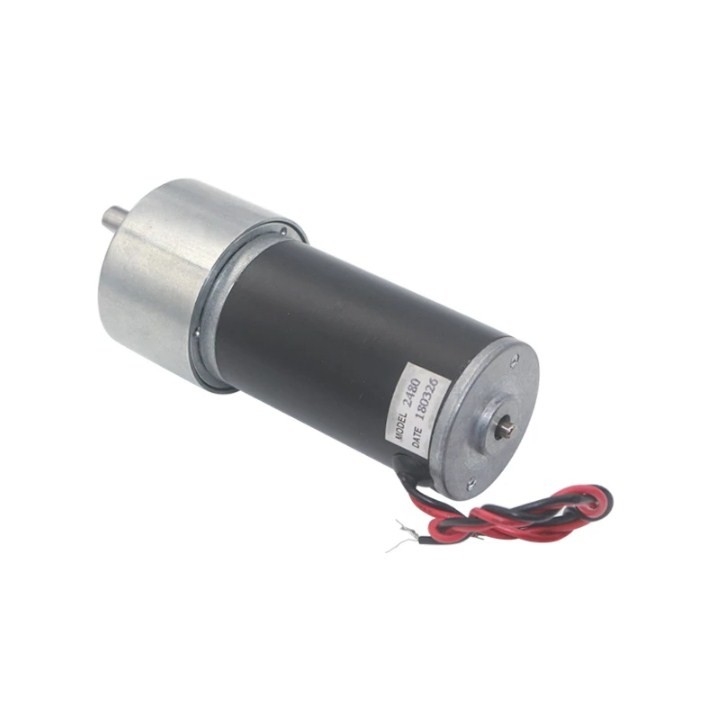

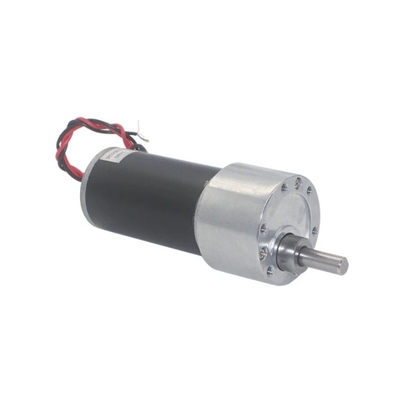

JGB37 31ZY 12V 24V Geared Dc Motor High Torque Eccentric Output

JGB37 31ZY 12V 24V Geared Dc Motor High Torque Eccentric Output
JGB37 31ZY 12V 24V Geared Dc Motor High Torque Eccentric Output JGB37 31ZY 12V 24V Geared Dc Motor High Torque Eccentric Output JGB37 31ZY 12V 24V Geared Dc Motor High Torque Eccentric Output JGB37 31ZY 12V 24V Geared Dc Motor High Torque Eccentric Output

Large Image :  JGB37 31ZY 12V 24V Geared Dc Motor High Torque Eccentric Output

Product Details:
Place of Origin: China
Brand Name: ASLONG
Certification: ROSH,CE
Model Number: JGB37-31zy
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: Negotiation
Packaging Details: on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

JGB37 31ZY 12V 24V Geared Dc Motor High Torque Eccentric Output

Description
Usage: Home Appliance,Electric Bicycle Commutation: Brushless
Type: BRUSHLESS DC MOTOR Protect Feature: Totally Enclosed
Certification: CE,ROHS Efficiency: IE 1
Construction: Permanent Magnet
High Light:

JGB37 31ZY Geared Dc Motor

,

60rpm Geared Dc Motor

,

JGB37 31ZY small size gear motor

JGB37 31ZY 12V 24V Geared Dc Motor High Torque Eccentric Output​



JGB37-31ZY DC 12V 24V High Torque Gear Motor Eccentric Output Shaft Geared Motors High Power gearbox reducer



Specification:

  • Voltage: DC12V, 24V
  • No-Load Speed: 10rpm, 16rpm, 30rpm, 47rpm, 60rpm, 90rpm, 140rpm, 260rpm, 420rpm, 800rpm, 1270rpm
  • Error: ±5%
  • Motor Diameter: 31mm
  • Motor Body Length: 57mm
  • Output Shaft Diameter: 6mm(D-type)
  • Output Shaft Length: 15mm
  • Gearbox Diameter: about 37mm
  • Gearbox Size Detal, please see the table
  •
  • Size and Parameter Table:
  •
  • Model Number: Reduction Ratio Workable Voltage Rated Voltage No load On Load Output Gearbox Length
    rpm Current Torque rpm Current Torque W mm
    JGB37-31ZY 810:1 0-12V 12 10 0.21 12 9.9 0.37 53 1.3 29
    506:1 0-12V 12 16 0.23 7.5 15.7 0.38 36 1.3 29
    270:1 0-12V 12 30 0.21 15 29 0.89 36 2.1 26.5
    168:1 0-12V 12 47 0.23 8.5 42 0.66 39 2.88 26.5
    131:1 0-12V 12 60 0.24 8.4 56 0.95 40 4.59 26.5
    90:1 0-12V 12 90 0.25 9.3 76 1.33 42 6.48 24
    56:1 0-12V 12 140 0.23 5.2 123 1.23 28 6.59 24
    30:1 0-12V 12 260 0.24 3.7 221 1.56 16 7.17 22
    19:1 0-12V 12 420 0.21 1 343 1.03 4.9 3.89 22
    10:1 0-12V 12 800 0.24 0.7 723 1.09 4 6.3 19
    6.3:1 0-12V 12 1270 0.31 0.6 1032 1.53 2.5 6.48 19
    810:1 0-24V 24 10 0.09 11 9.8 0.19 57 0.59 29
    506:1 0-24V 24 16 0.11 10 15.6 0.31 55 1 29
    270:1 0-24V 24 30 0.09 20 29.6 0.65 53 1.6 26.5
    168:1 0-24V 24 47 0.1 9 46 0.45 50 2. 15 26.5
    131:1 0-24V 24 60 0.15 8.8 56 0.51 30 1.75 26.5
    90:1 0-24V 24 90 0.13 4.9 86 0.41 24 1.85 24
    56:1 0-24V 24 140 0.12 3.9 138 0.55 21 2.79 24
    30:1 0-24V 24 260 0.13 3.5 230 0.72 19 3.6 22
    19:1 0-24V 24 420 0.14 2 360 0.76 10 3.35 22
    10:1 0-24V 24 800 0.13 1.3 767 0.76 7 4.1 19
    6.3:1 0-24V 24 1270 0.12 0.45 1170 0.57 2.7 3.65 19

Wiring:



  • JGB37 31ZY 12V 24V Geared Dc Motor High Torque Eccentric Output 0
