Home ProductsBrushless DC Gear Motor

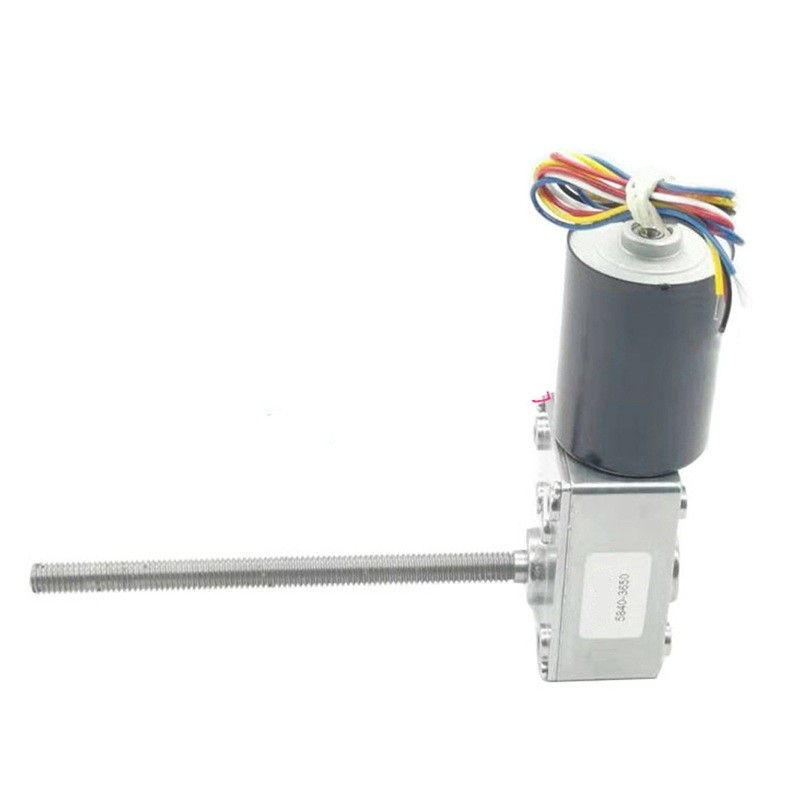

PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm

Certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
China Shenzhen Jinshunlaite Motor Co., Ltd. certification
I'm Online Chat Now

PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm

PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm
PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm

Large Image :  PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm

Product Details:
Place of Origin: China
Brand Name: Aslong
Certification: ROSH,CE
Model Number: 5840-3650-116
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: bubble + carton
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Week

PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm

Description
Usage: Home Appliance,Electric Bicycle,Car Commutation: Brushless
Speed(rpm): 8-470RPM Type: BLDC Motor
Certification: CE,ROHS,CCC Efficiency: IE 1
Application: Household Appliances, Industrial Machinery Medical Device Lock, Door Lock, Automatic Product Product Name: Brushless Motor Long Shaft M8 Length 116mm Gear Worn DC 12V 24V Speed Reducer PWM Electric
High Light:

235rpm Brushless DC Gearmotor

,

PWM Brushless DC Gearmotor

,

235rpm 24 Volt Dc Gear Motor

PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm​

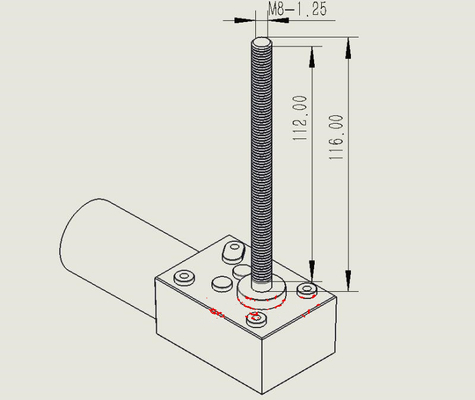

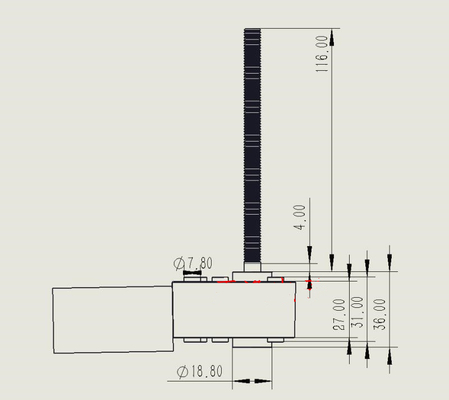

Brushless Motor Long Shaft M8 Length 116mm Gear Worn DC 12V 24V Speed Reducer PWM Electric







Specification:
  • Voltage: DC12V

No-load Speed: 8rpm,14rpm,20rpm,40rpm,80rpm,130rpm,235rpm

  • Voltage: DC24V

No-load Speed: 16rpm,27rpm,40rpm,80rpm,160rpm,260rpm,470rpm

  • Error: ±5%

Wiring:



  • PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm 0

Datasheet:



PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm 1PWM Electric Brushless DC Gearmotor 24 Volt Dc Gear Motor 235rpm 2

5840-3650
Reduction ratio Rated Volt No Load AT Load STall
SPEED CURRENT Torque SPEED Current TOGQCE CURRENT
V RPM mA KG.cm RPM A KG..CM A
17 12 235 230 2.5 180 0.8 4.3 3
31 12 130 230 4.5 100 0.8 8 3
50 12 80 230 7.3 60 0.8 12.5 3
100 12 40 230 14.5 30 0.8 25 3
200 12 20 230 29 15 08 51 3
290 12 14 230 42 10 0.8 70 3
500 12 8 230 60 6 0.8 70 3
17 24 470 300 5 380 1.6 8.5 3
31 24 260 300 9.5 200 1.6 15.5 3
50 24 160 300 15 130 1.6 25 3
100 24 80 300 30 60 1.6 50 3
200 24 40 300 40 30 1.6 70 3
290 24 27 300 50 20 1.6 70 3
500 24 16 300 60 12 1.6 70 3





Brushless dc motor advantages:

a) Electronic commutation replaces traditional mechanical commutation. Reliable performance, never wear, low failure rate, and the service life is about 6 times longer than the brush motor, which represents the development direction of electric vehicles;

b) It is a static motor with low no-load current;

c) High efficiency;

d) Small size



FAQ

1. Q: Are you trading company or manufacturer?

A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

2. Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

3. Q: I can't find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer's requirements.

4. Q: Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

5. Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
